V-BELT

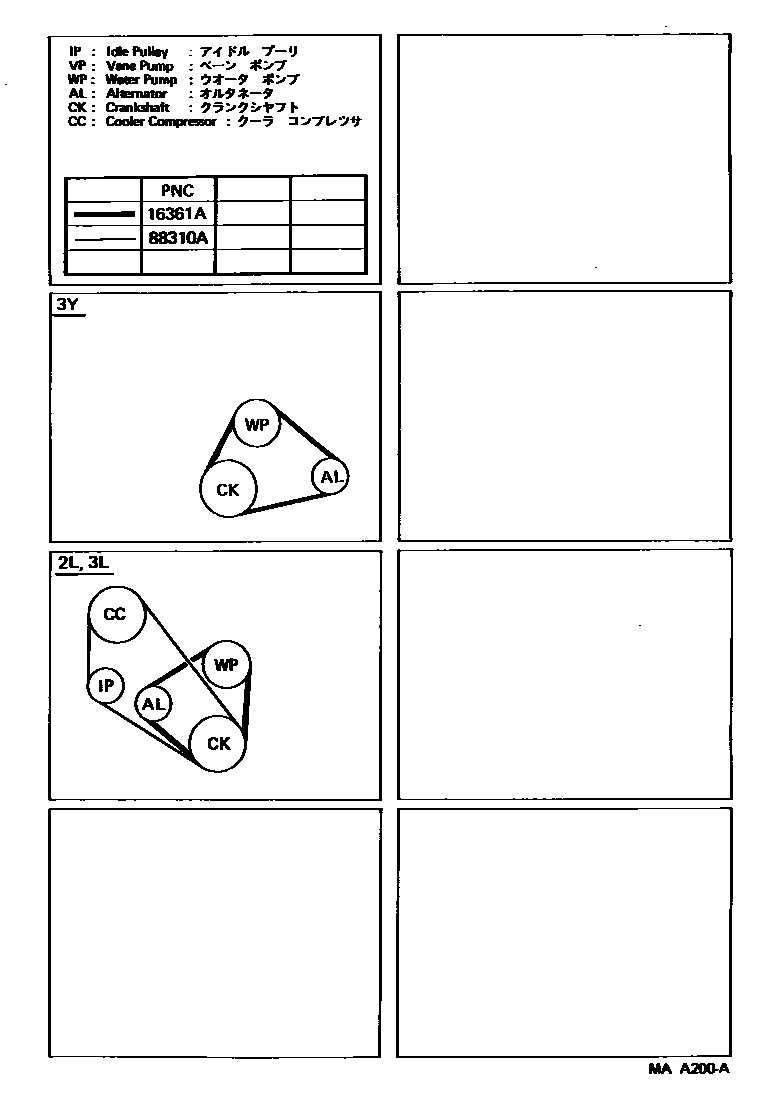

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i198708-198808

main90916-02209i198808-199505

main99365-50820i198708-198808

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99332-11265i198808-199505

L=1265

2 parts on this diagram · 1 diagram in section
