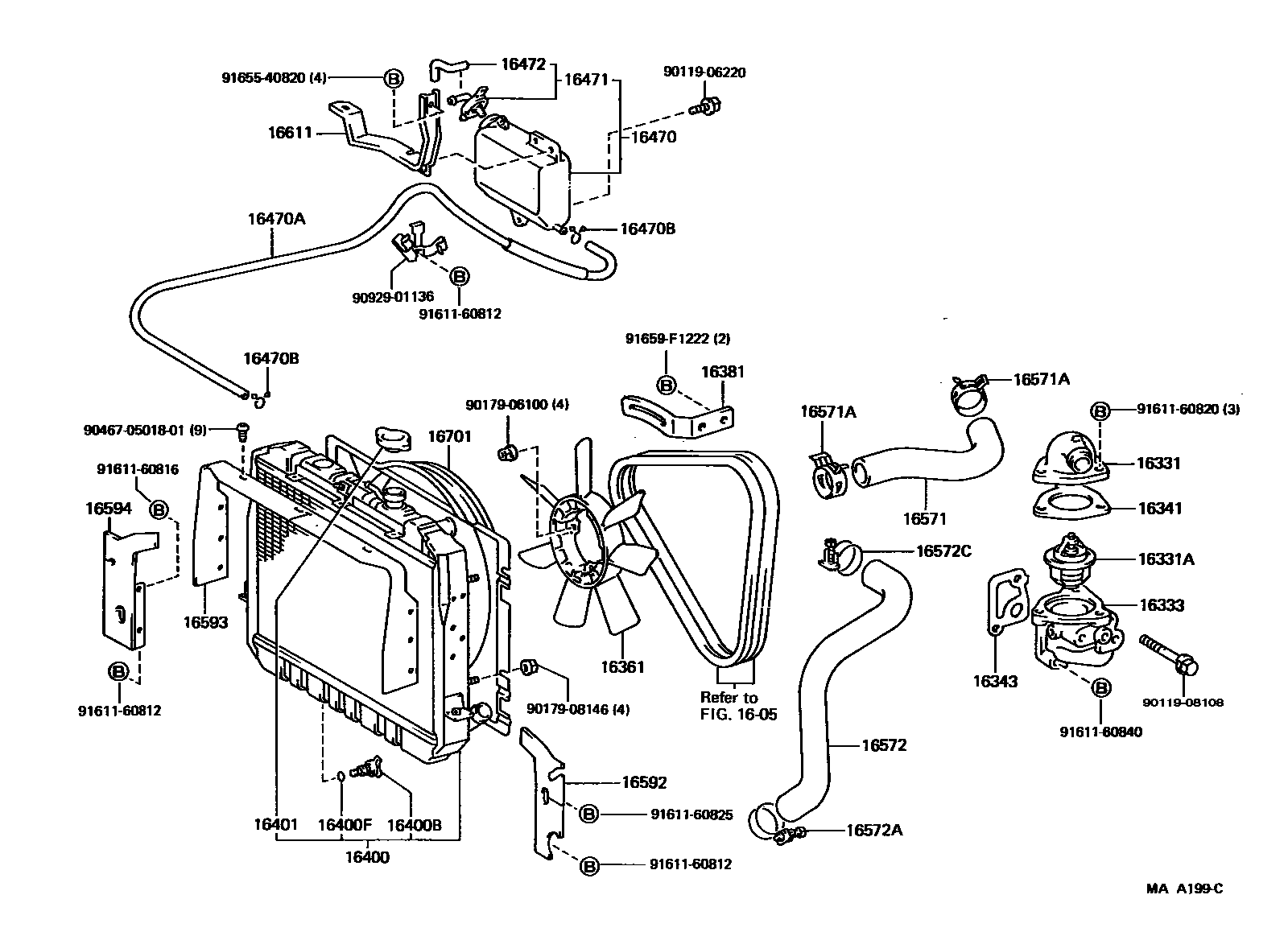

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

1605V-BELT

→ Go to FIG 16-05

16331OUTLET, WATER

main16331-54030i2L..LY60198708-198808

main16331-54090i3L..LY61198808-199505

main16331-71010i3Y..YY61198708-198808

16331ATHERMOSTAT

main90916-03069i3Y..YY61198708-198808

*WAX 82-95

main90916-03099i2L..LY60198708-199505

*WAX 88-100

16333HOUSING, WATER OUTLET

main16303-54030i3L..LY61..WT198808-198906

main16303-54040i3L..LY61..ST198808-198906

main16333-54050i2L..LY60198708-198808

main16333-54111i3L..LY61..WT198906-199108

main16333-54112i3L..LY61..WT199108-199505

main16333-54121i3L..LY61..ST198906-199108

main16333-54122i3L..LY61..ST199108-199207

16341GASKET, WATER OUTLET

main16341-54011i2L..LY60198708-198808

main16341-54030i3L..LY61198808-199110

main16341-54040i3L..LY61199110-199505

main16341-71010i3Y..YY61198708-198808

16343GASKET, WATER OUTLET HOUSING

main16343-54011i2L..LY60198708-198808

main16343-54030i3L..LY61198808-199110

main16343-54040i3L..LY61199110-199505

16361FAN

main16361-38010i3Y..YY61198708-198808

main16361-54020i2L..LY60198708-198808

main16361-54040i3L..LY61198808-199505

16381BAR, FAN BELT ADJUSTING

main16381-54011i2L..LY60198708-198808

main16381-54060i3L..LY61198808-199505

main16381-73011i3Y..YY61198708-198808

16400RADIATOR ASSY

main16400-54511i2L..LY60198708-198808

main16400-54680i3L..LY61198808-199501

main16400-54681i3L..LY61199501-199505

main16400-73140i3Y..YY61198708-198808

16400BPLUG, RADIATOR DRAIN COCK

main16417-24051i3L..LY61198808-199505

main16417-58090i3Y..YY61198708-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24051i2L,3L..LY6#198708-199505

16401CAP SUB-ASSY, RADIATOR

main16401-71010i2L,3L..LY6#198708-199505

16470TANK ASSY, RADIATOR RESERVE

main16470-54141i3Y..YY61198708-199505

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90447-12089i2L,3L..LY6#198708-199505

L=1215

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2L,3L..LY6#198708-199505

16471CAP SUB-ASSY, RESERVE TANK

main16405-54151i2L,3L..LY6#198708-199505

16472HOSE, BREATHER

main85338-71030i2L,3L..LY6#198708-199505

16571HOSE, RADIATOR, INLET

main16571-54240i3L..LY61198901-199505

main16571-54250i2L,3L..LY6#198708-198901

main16571-71050i3Y..YY61198708-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2L,3L..LY6#198708-199505

16572HOSE, RADIATOR, OUTLET

main16572-54240i2L..LY60198708-198808

main16572-54290i3L..LY61198808-199505

main16572-71040i3Y..YY61198708-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37002i3Y..YY61198708-198808

main96111-10460i2L..LY60198708-199505

RADIATOR SIDE

main96111-10500i3L..LY61198808-199505

ENGINE SIDE

16572CCLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2)

main96111-10500i2L..LY60198708-198808

16592GUIDE, RADIATOR AIR, NO.3

main16592-54020i2L..LY60198708-198808

main16592-54030i3L..LY61198808-199505

LH

main16594-54060i3L..LY61..WT198808-199505

RH

16593GUIDE, RADIATOR AIR, NO.1

main16593-56030i3Y..YY61198708-199505

16594GUIDE, RADIATOR AIR, NO.2

main16594-54040i2L..LY60198708-198808

16611BRACKET, RADIATOR RESERVE TANK

main16611-54080i3Y..YY61198708-199505

16701SHROUD SUB-ASSY, FAN

main16701-54120i2L..LY60198708-198808

main16701-54131i2L..LY60198708-198808

W(RADIATOR SHUTTER)

main16701-54190i3L..LY61198808-199505

main16701-54200i3L..LY61..WT198808-199505

W(RADIATOR SHUTTER)

main16701-71010i3Y..YY61198708-198808

9011906220

main90119-06220

9011908108

main90119-08108

9017906100

main90179-06100

9017908146

main90179-08146

904670501801

main90467-0501801

9092901136

main90929-01136

9161160812

main91611-60812

9161160816

main91611-60816

9161160820

main91611-60820

9161160825

main91611-60825

9161160840

main91611-60840

9165540820

main91655-40820

91659F1222

main91659-F1222

40 parts on this diagram · 3 diagrams in section
