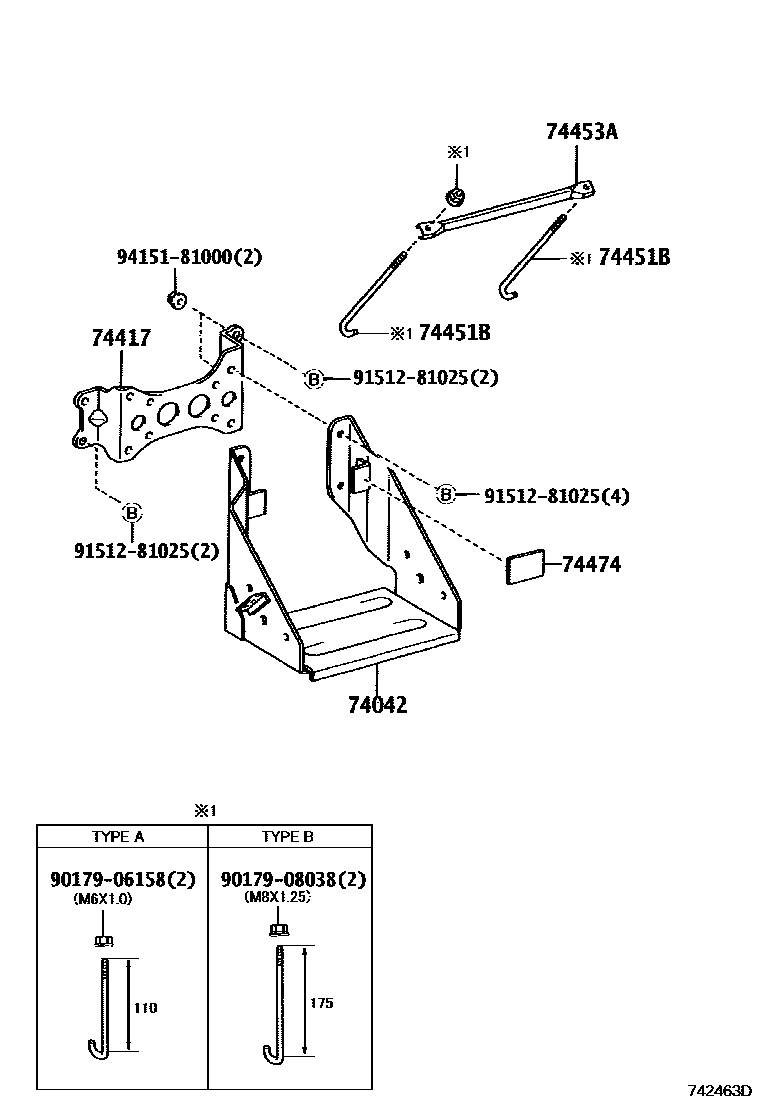

BATTERY CARRIER

0001 1 0002 1 0003 1BATTERY=80D26L 0004 1BATTERY=D26X2

74042BRACKET SUB-ASSY, BATTERY

main74042-25050iLY225,235200107

main74042-25060iKDY230,250..RHD;KDY230,260..125T;KDY220..RHD..CBU200112-200609

main74042-36020iKDY221,231,251,261,LY220,230200107-202111

74417BRACKET, BATTERY CARRIER

main74417-25090iKDY230,250,260..15T;KDY22#,231,251,261,LY220,230200107-202111

main74417-25100iKDY230,250,260..10T,125T200108-200609

BATTERY=80D26L

main74417-25120iKDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY221,231,251,261..EUR;KDY230,260..LHD..(10T,15T)200108-201502

BATTERY=D26 X2

74451BBOLT, BATTERY CLAMP

main74451-25020×2iKDY220,230,250,260200108-200610

TYPE A:REFER ILLUST.

main74451-36070×2iKDY230,250..RHD;KDY230,260..125T;KDY220..RHD..CBU200112

TYPE B:REFER ILLUST.

74453ABAR, BATTERY SET PLATE

main74453-25090iKDY220,230,250,260200108-200610

BATTERY=80D26L

main74453-25100iKDY221,231,LY230..GEN,SA200107-202111

main74453-36070iKDY250..LHD;KDY220..IV3;KDY220..LHD..CBU;KDY221,231,251,261..EUR;KDY230,260..LHD..(10T,15T)200108-201502

BATTERY=D26 X2

74474PAD, BATTERY

main74475-36040×2iKDY221,231,LY230..GEN,SA200107-202111

9017906158

main90179-06158

9017908038

main90179-08038

9151281025

main91512-81025

9415181000

main94151-81000

9 parts on this diagram · 4 diagrams in section
