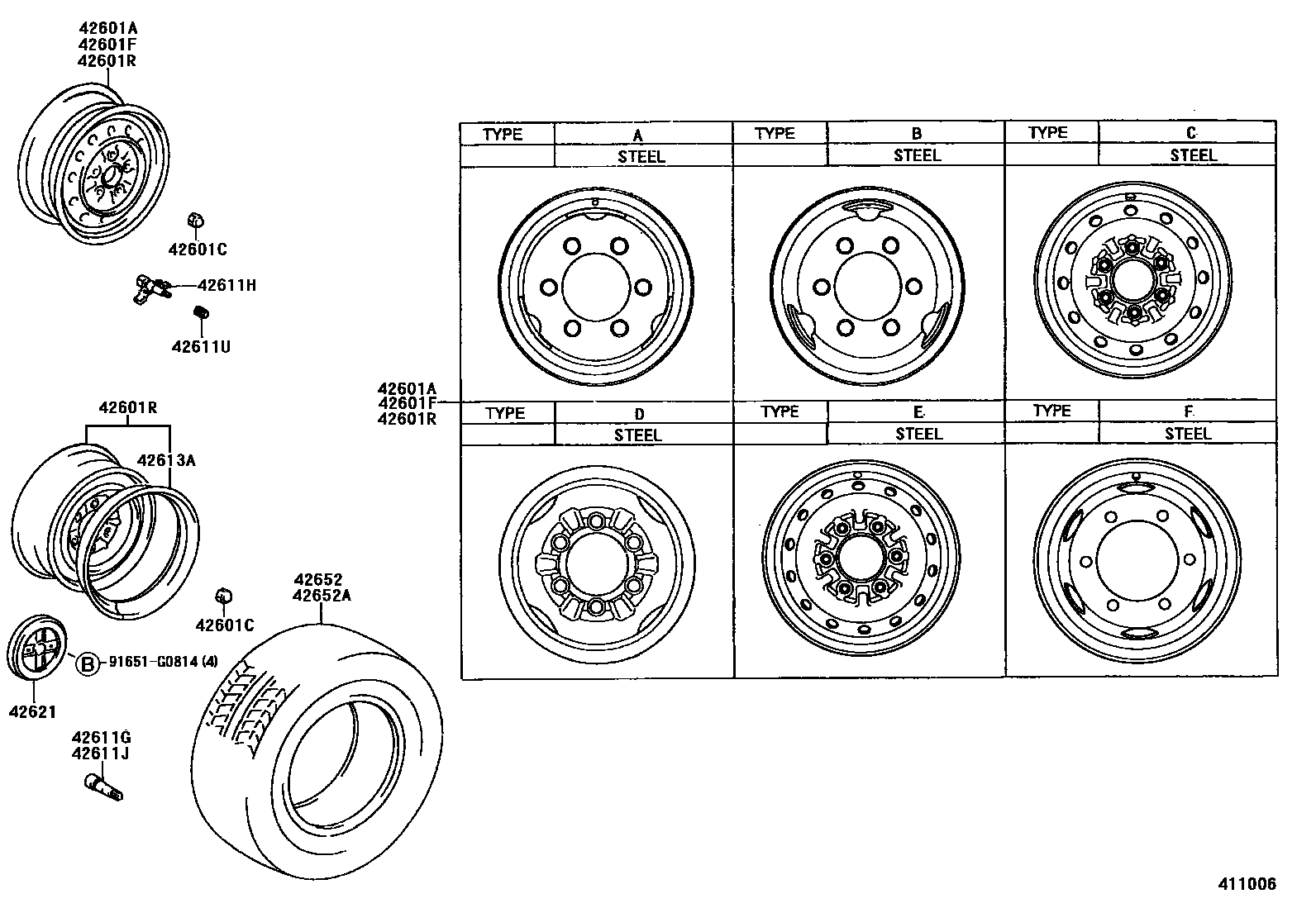

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-25190-03iLY211,YY211..ST..15T..(ARL,GEN)199505

15X5.5K, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-25221iLY211,YY211..WT..CBU199505-199510

12X4J, #,TYPE F:REFER TO ILLUSTRATION

main42601-25240-03iLY211,YY211..WT..15T..CBU199505-200002

14X4.5J, #,TYPE E:REFER TO ILLUSTRATION,GRAY,FRONT

main42601-25350iLY212..SA199909

14X4.5J,TYPE E:REFER TO ILLUSTRATION

main42601-26310iLY212..SA199909

13X4J, #,TYPE A:REFER TO ILLUSTRATION

main42601-36400-03iLY21#..WT..EUR199505

14X5J,TYPE B:REFER TO ILLUSTRATION,GRAY

main42610-25050-03iLY21#..ST..15T..EUR;LY211,YY211..ST..125199505

15X5.50F, #,TYPE D:REFER TO ILLUSTRATION,GRAY

42601CNUT, HUB (FOR AXLE)

main90942-01004×6iLY211,YY211..ST; LY211,YY211..WT..CBU199505-199708

REAR,RH

main90942-01009×6iLY211,YY211..WT..CBU199505-199708

REAR,LH

main90942-01010×6iLY21#..WT..EUR199505

REAR,RH

main90942-01011×6iLY21#..WT..EUR199505

REAR,LH

main90942-01012×6iLY21#..WT..EUR199505

FRONT,RH

main90942-01013×6iLY21#..WT..EUR199505

FRONT,LH

main90942-01051×12iLY21#,YY211..RHD..WT199505

FRONT

main90942-01099×6iLY21#,YY211..RHD..WT; LY21#,YY211..ST199708

REAR,RH

main90942-01100×6iLY21#,YY211..RHD..WT199708

REAR,LH

42601FWHEEL, DISC (FOR FRONT)

main42601-25180-03×2iLY211,YY211..ST..(ARL,GEN)199505

15X4.5K, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-25240-03×2iLY21#,YY211..WT..CBU199505

14X4.5J, #,TYPE E:REFER TO ILLUSTRATION,GRAY

main42601-25350×2iLY212..SA199909

14X4.5J,TYPE E:REFER TO ILLUSTRATION

main42601-36400-03×2iLY21#..WT..EUR199505

14X5J,TYPE B:REFER TO ILLUSTRATION,GRAY

main42610-25050-03×2iLY21#..ST..EUR199505

15X5.50F, #,TYPE D:REFER TO ILLUSTRATION,GRAY

42601RWHEEL, DISC (FOR REAR)

main42601-25190-03×2iLY211,YY211..ST..15T..(ARL,GEN)199505

15X5.5K, #,TYPE C:REFER TO ILLUSTRATION,GRAY

main42601-25221×4iLY21#,YY211..WT..CBU199505

12X4J, #,TYPE F:REFER TO ILLUSTRATION

main42601-26310×4iLY212..SA199909

13X4J, #,TYPE A:REFER TO ILLUSTRATION

main42601-36400-03×4iLY21#..WT..EUR199505

14X5J,TYPE B:REFER TO ILLUSTRATION,GRAY

main42610-25050-03×2iLY21#..ST..15T..EUR;LY211,YY211..ST..125199505

15X5.50F, #,TYPE D:REFER TO ILLUSTRATION,GRAY

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×6iLY21#,YY211..WT199505

42611HEXTENSION, VALVE

main90942-05015×2iLY21#,YY211..WT..CBU199505

main90942-05020×2iLY21#..WT..EUR199505

main90942-05022×2iLY212..SA199909

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iLY21#,YY211..RHD..WT; LY21#..WT..EUR199505

42611UCAP, TIRE VALVE

main90942-05013×2iLY21#..WT..EUR199505

42613ARING, DISC WHEEL SIDE

main42613-35010×3iLY21#..ST..EUR; LY211,YY211..ST..125..CBU199505

42621CAP, WHEEL

main42621-25080×2iLY21#..WT..EUR199708

main42621-36120×2iLY211..WT..IV199508-199708

DENMARK OR AUSTRIA SPEC

42652TIRE

main42605-25051×2iLY211,YY211..ST..GEN199505

6.00-15-8,W(TUBE)

main42605-25100×2iLY211,YY211..ST..15T..(ARL,GEN)199505

6.00R15-8,*D/L

main42605-25160×2iLY211,YY211..ST..15T..(ARL,GEN)199505

7.00R15-8,*D/L

main42605-25210×2iLY211,YY211..ST..125..CBU199505

7.00R15-10,*B/S

main42605-25220×4iLY212..ST199805

5.50F-15,W(TUBE)

main42605-25240×2iLY211,YY211..ST..(ARL,GEN)199505

6.00R15-8,*O/T

main42605-25250×2iLY211,YY211..ST..15T..(ARL,GEN)199505

7.00R15-8,*O/T

main42605-25330×2iLY211,YY211..ST..15T..GEN199505

7.00-15 8PR

main42652-25080×2iLY212..SA;LY211,YY211..WT..CBU199505

175R14 LT 8PR *B/S

main42652-25090×2iLY21#..WT..CBU;YY211..WT..125199510

175R14 LT 8PR *O/T

main42652-25100×4iLY211,YY211..WT..15T..CBU199505-200002

155R12-6PRLT

main42652-25110×4iLY21#..WT..CBU;YY211..WT..125199510

155R12-8PRLT *B/S

main42652-25120×4iYY211..WT..125;LY211..WT..CBU199510-199806

155R12-8PRLT *O/T

main42652-25260×4iLY21#..WT..CBU;YY211..WT..125199806

155R12-8 *O/T

main42652-25280×4iLY212..SA199909

165R13-6

main42652-26021×6iLY21#..WT..EUR199505

185R14C-8

main98061-70155×4iLY211..ST..EUR199505-199805

7.00-15-10,W(TUBE)

42652ATIRE (FOR SPARE)

main42605-25160iLY211,YY211..ST..15T..(ARL,GEN)199505

7.00R15-8,*D/L

main42605-25210iLY211,YY211..ST..125..CBU199505

7.00R15-10,*B/S

main42605-25220iLY212..ST199805

5.50F-15,W(TUBE)

main42605-25250iLY211,YY211..ST..15T..(ARL,GEN)199505

7.00R15-8,*O/T

main42605-25330iLY211,YY211..ST..15T..GEN199505

7.00-15 8PR

main42652-25080iLY212..SA;LY211,YY211..WT..CBU199505

175R14 LT 8PR *B/S

main42652-25090iLY211,YY211..WT..CBU199505-199510

175R14 LT 8PR *O/T

main42652-25100iLY211,YY211..WT..15T..CBU199505-200002

155R12-6PRLT

main42652-25110iLY211,YY211..WT..CBU199505-199510

155R12-8PRLT *B/S

main42652-25120iYY211..WT..125;LY211..WT..CBU199510-199806

155R12-8PRLT *O/T

main42652-25260iLY21#..WT..CBU;YY211..WT..125199806

155R12-8 *O/T

main42652-25280iLY212..SA199909

165R13-6

main42652-26021iLY21#..WT..EUR199505

185R14C-8

main98061-70155iLY211..ST..15T..EUR;LY211,YY211..ST..125199505

7.00-15-10,W(TUBE)

91651G0814

main91651-G0814

13 parts on this diagram · 3 diagrams in section
