ALTERNATOR

0001 112V 50A 0002 112V 50A 0003 112V 55A

1107MOUNTING

→ Go to FIG 11-07

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

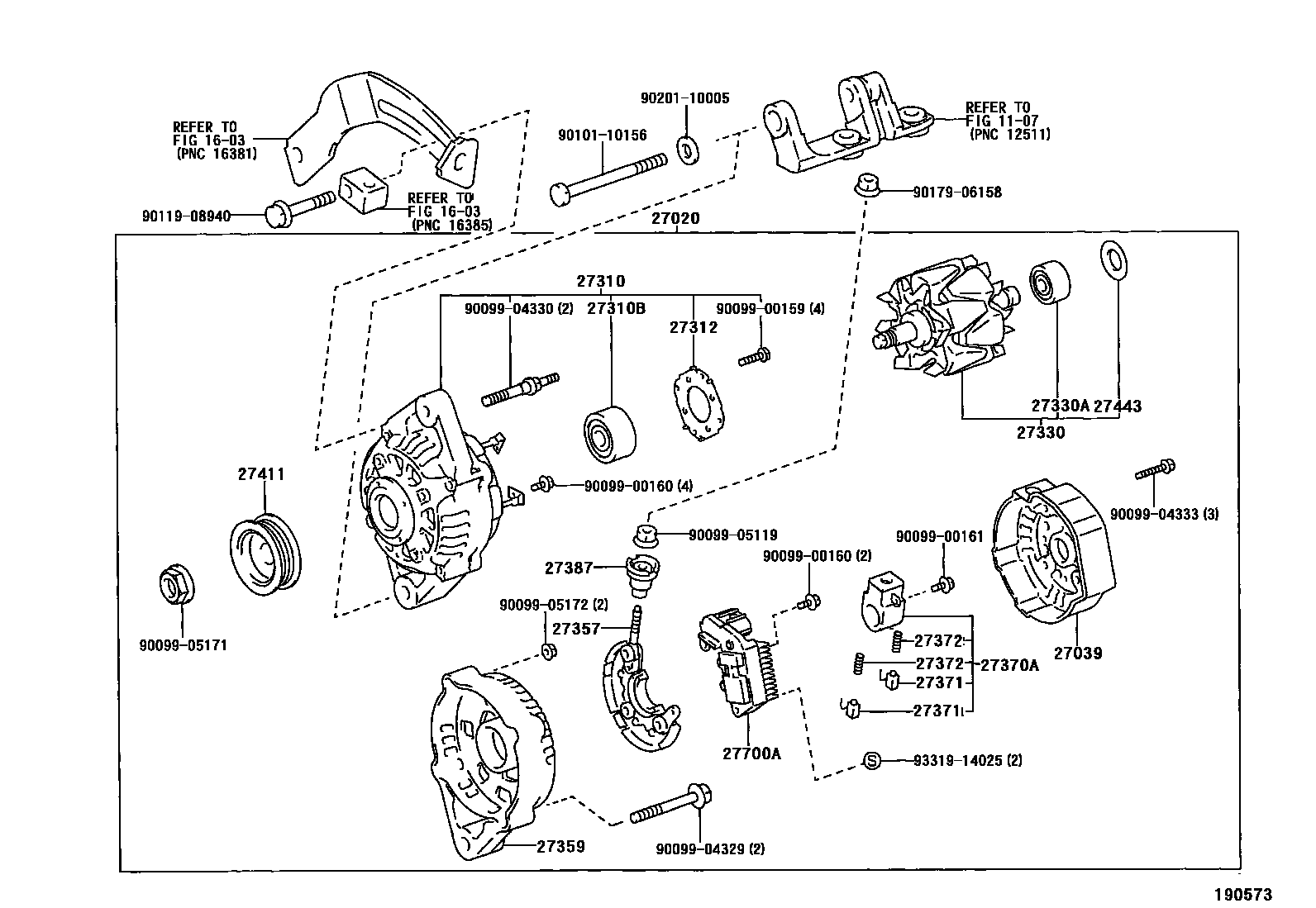

27020ALTERNATOR ASSY

main27020-54403i3L,5L..LY21#199505-199905

12V 50A

main27060-54330i3L,5L..LY21#199905

12V 55A

main27060-72380i3Y..YY211199505

12V 50A

27039COVER, ALTERNATOR REAR END

main27039-11190i3Y..YY211199505

main27039-16380i3L,5L..LY21#199905

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-54131i3L,5L..LY21#199505-199905

main27310-54440i3L,5L..LY21#199905

main27310-72171i3Y..YY211199505

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i3L,5L..LY21#199505-199905

main90099-10165i3L,5L..LY21#199905

main90099-10198i3Y..YY211199505

27312PLATE, RETAINER

main27312-57060i3L,5L..LY21#199505-199905

main27312-64130i3L,5L..LY21#199905

main27312-72120i3Y..YY211199505

27330ROTOR ASSY, ALTERNATOR

main27330-54292i3L,5L..LY21#199505-199905

main27330-64130i3L,5L..LY21#199905

main27330-72150i3Y..YY211199505

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3L,5L..LY21#199905

main90099-10154i3Y..YY211199505

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-13360i3L,5L..LY21#199905

main27357-64070i3L,5L..LY21#199505-199905

main27357-72150i3Y..YY211199505

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16182i3L,5L..LY21#199905

main27359-72150i3Y..YY211199505

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58320i3L,5L..LY21#199905

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i3Y..YY211199505

main27370-54250i3L,5L..LY21#199505-199905

27371BRUSH, ALTERNATOR

main27371-54412×2i3L,5L..LY21#199505-199905

main27371-70300×2i3Y..YY211199505-199905

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i3L,5L..LY21#199505-199905

main27372-63020×2i3Y..YY211199505-199905

27387INSULATOR, TERMINAL

main27387-10080i3Y..YY211199505-199708

main27387-10081i3Y..YY211199708

main27387-70171i3L,5L..LY21#199905

27411PULLEY, ALTERNATOR

main27411-54351i3L,5L..LY21#199505-199905

main27411-72120i3Y..YY211199505

27443COVER, ALTERNATOR BEARING

main27443-63020i3L,5L,3Y..LY21#,YY211199905

27700AREGULATOR ASSY, GENERATOR

main27700-50030i3L,5L..LY21#199905

main27700-54070i3L,5L..LY21#199505-199905

main27700-66030i3Y..YY211199505

9009900159

main90099-00159

9009900160

main90099-00160

9009900161

main90099-00161

9009904329

main90099-04329

9009904330

main90099-04330

9009904333

main90099-04333

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010110156

main90101-10156

9011908940

main90119-08940

9017906158

main90179-06158

9020110005

main90201-10005

9331914025

main93319-14025

33 parts on this diagram · 3 diagrams in section
