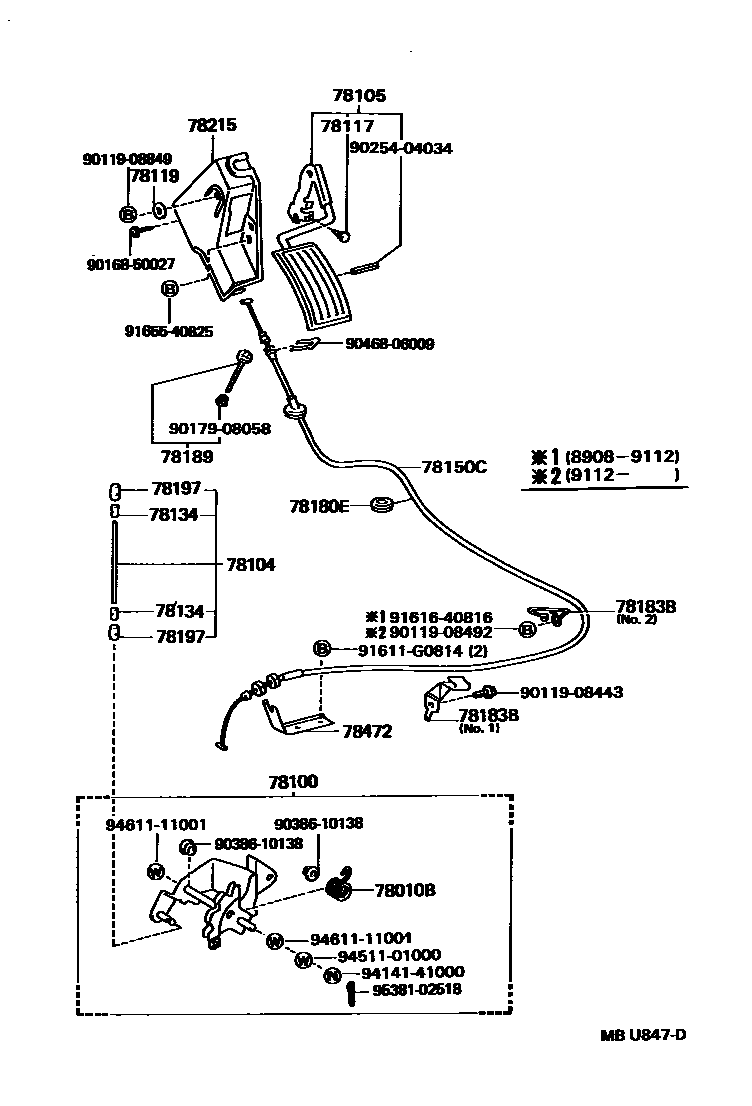

ACCELERATOR LINK

0001 1 0002 1 0004 1 0005 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-15010iLH10#,11#..5F198908-199305

main90508-16114iLH112..4FC198908-199305

78100LINK ASSY, ACCELERATOR

main78100-26010iLH112..4FC198908-199305

main78100-26020iLH10#,11#..5F198908-199305

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH10#,11#198908-199508

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-26010iLH102,112..RHD199008-199108

main78105-95J00iLH102,112,RZH112..RHD198908-199008

78117CUSHION (FOR ACCELERATOR ROD)

main90541-05006iLH10#,11#,RZH10#,11#..LHD; LH102,112,RZH112..RHD198908-199008

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iLH102,112,RZH112,113..RHD198908-199508

78134END, ACCELERATOR CONNECTING ROD

main78134-10010×2iLH10#,11#198908-199508

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-95J13iRZH112..4D..03S198908-199308

main78150-95J14iRZH113..RHD199308-199508

main78150-95J15iLH102,112..RHD198908-199508

main78150-95J16iRZH102,112..LHD198908-199508

main78150-95J17iLH10#,11#..LHD198908-199508

main78150-95J18iRZH103,109,113,115,119..LHD198908-199508

78180EGROMMET (FOR ACCELERATOR WIRE)

main90480-26023iLH102,112,RZH112,113..RHD198908-199508

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26030iLH10#,11#; RZH10#,11#..LHD; RZH112,113..RHD199112-199508

NO.1; NO.2

main78183-95J03iLH10#,11#198908-199508

NO.1

main78183-95J04iLH10#,11#; RZH10#,11#..LHD; RZH112..4D..03S198908-199112

NO.1; NO.2

main78183-95J05iLH10#,11#..LHD; RZH10#,11#..LHD198908-199508

NO.2; NO.3

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-95J02iLH102,112,RZH112,113..RHD198908-199508

main78208-95J03iLH10#,11#,RZH10#,11#..LHD198908-199508

78197CLIP, ACCELERATOR JOINT BALL

main78197-10010×2iRZH112,113..LHD;LH10#,11#,RZH10#,115,119198908-199508

78215CASE, ACCELERATOR LINK

main78215-95J02iLH102,112,RZH112,113..RHD198908-199508

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-26020iLH10#,11#198908-199508

9011908443

main90119-08443

9011908492

main90119-08492

9011908849

main90119-08849

9016850027

main90168-50027

9017908058

main90179-08058

9025404034

main90254-04034

9038610138

main90386-10138

9046806009

main90468-06009

91611G0814

main91611-G0814

9161640816

main91616-40816

9165540825

main91655-40825

9414141000

main94141-41000

9451101000

main94511-01000

9461111001

main94611-11001

9538102518

main95381-02518

29 parts on this diagram · 4 diagrams in section
