SEPARATOR & SEPARATOR CURTAIN

58797CBAND, JACK CLAMP

main58705-95A01iLH10#,11#,RZH103,109,11#..LHD..SP..EUR199308-199508

74803CBAR SUB-ASSY, SEPARATOR, C

main74803-95J07iRZH103..DX199105-199508

main74803-95J07iRZH102..DX198908-199105

NORWAY SPEC

74805FBAR SUB-ASSY, SEPARATOR, A

main74805-95J18-03iRZH112..06S;RZH109,113,119..03S198908-199308

GRAY,TRIM1#

main74805-95J18-03iRZH103..STD198908-199108

SWITZERLAND SPEC & W(FIXED TYPE),GRAY,TRIM1#

main74805-95J18-03iRZH103..STD198908-199108

W(*FRS),GRAY,TRIM1#

main74805-95J18-03iRZH113..4D..06S199108-199308

W(FIXED TYPE),GRAY,TRIM1#

main74805-95J18-03iRZH102..DX199010-199011

HUNGARY AMBULANCE SPEC,GRAY,TRIM1#

main74805-95J18-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#

main74810-95J05-03iRZH113..4D..06S198908-199308

GRAY,TRIM1#

main74810-95J05-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE ROOM SEPARATOR),GRAY,TRIM1#

main74810-95J05-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#

74806BBAR SUB-ASSY, SEPARATOR, B

main74806-95J04iRZH102..DX198908-199105

NORWAY SPEC

main74806-95J04iLH102,RZH103..DX199105-199508

74816BREINFORCEMENT, SEPARATOR WINDOW

main74816-95J02iRZH102..DX198908-199105

NORWAY SPEC

main74816-95J02iLH102,RZH103..GL199105-199508

74819CCUSHION, SEPARATOR WINDOW

main74099-95J00iLH102,RZH103..DX199105-199508

main74099-95J00iRZH102..DX198908-199105

NORWAY SPEC

74820BBOARD ASSY, SEPARATOR

main74820-26010iRZH102..5D199104-199105

NORWAY SPEC & W(BOARD TYPE)

main74820-26010iRZH102..5D199104-199308

W(BOARD TYPE)

main74820-26010iRZH112..5D..5F;LH102,11#,RZH119..5D..03S199104-199105

NORWAY SPEC

main74820-26010iLH10#,11#,RZH103,109,11#..LHD..SP..EUR199108-199508

main74820-95J09iRZH112..4FC198908-199104

NORWAY SPEC

main74820-95J10iLH118..STD198910-199010

AUSTRIA SPEC OR (FINLAND SPEC & BOARD TYPE)

main74820-95J10iLH118..STD198910-199010

DENMARK SPEC OR (FINLAND SPEC & BOARD TYPE)

main74820-95J10iLH118..STD198910-199010

FINLAND SPEC & W(BOARD TYPE)

main74820-95J10iLH118..STD198910-199010

DENMARK SPEC OR AUSTRIA SPEC OR (FINLAND SPEC & BOARD TYPE)

main74820-95J10iLH112..4FC198908-199010

DENMARK SPEC

main74820-95J10iLH112..4FC198908-199010

AUSTRIA SPEC

main74820-95J10iLH112..4FC198908-199010

DENMARK SPEC OR AUSTRIA SPEC

main74820-95J10iLH108,RZH103,109,113..03S..5F;LH102,112,RZH102..LHD..4D..SP199010-199308

W(MESH BOARD TYPE)

main74820-95J10iRZH109..03S;RZH103,113..4D..03S198908-199308

74821BBRACKET, SEPARATOR BOARD, UPR

main74821-95J04iRZH112,119..5D;LH112..5D..03S..5F198908-199508

74823BBRACKET, SEPARATOR BOARD SIDE, LOWER

main74823-95J04iLH102..5D..03S198908-199508

74826AWINDOW, SEPARATOR

main74826-95J05iRZH102..DX198908-199508

74828AEXTENSION, SEPARATOR BOARD

main74809-95J00iLH118..STD198908-199508

74829ABOARD, SEPARATOR

main74829-95J10iRZH102..DX198908-199508

74837BBRACKET, SEPARATOR BOARD, LOWER

main74837-95J01iLH102,RZH103..DX198908-199508

74850BSEPARATOR SUB-ASSY, REAR

main74850-95J03iLH102,RZH103..GL198908-199508

74851DBRACKET, SEPARATOR BAR, UPPER RH

main74851-95J01-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

GRAY,TRIM1#,RR

main74851-95J01-03iRZH113..4D..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,RR

main74851-95J01-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#,RR

main74851-95J05-03iRZH113..4D..06S199108-199308

W(FIXED TYPE),GRAY,TRIM1#

main74851-95J05-03iRZH113..03S;LH112,RZH103,109,119..5D..03S..5F198908-199308

GRAY,TRIM1#

main74851-95J05-03iRZH102..DX199010-199011

HUNGARY AMBULANCE SPEC,GRAY,TRIM1#

main74851-95J05-03iRZH113..4D..06S198908-199108

W(*FRS),GRAY,TRIM1#

main74851-95J05-03iRZH113..4D..06S198908-199108

SWITZERLAND & W(FIXED TYPE),GRAY,TRIM1#

main74851-95J05-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

GRAY,TRIM1#,FR

main74851-95J05-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,FR

main74851-95J05-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#

main74851-95J05-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#,FR

74852DBRACKET, SEPARATOR BAR, UPPER LH

main74852-95J00-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,RR

main74852-95J00-03iRZH113..4D..06S198908-199308

GRAY,TRIM1#,RR

main74852-95J00-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#,RR

main74852-95J05-03iRZH103..STD198908-199108

SWITZERLAND & W(FIXED TYPE),GRAY,TRIM1#

main74852-95J05-03iRZH112..06S;LH112..5D..03S..5F;RZH109,113,119..03S198908-199308

GRAY,TRIM1#

main74852-95J05-03iRZH103..STD198908-199108

W(*FRS),GRAY,TRIM1#

main74852-95J05-03iRZH102..DX199010-199011

HUNGARY AMBULANCE SPEC,GRAY,TRIM1#

main74852-95J05-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

GRAY,TRIM1#,FR

main74852-95J05-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,FR

main74852-95J05-03iRZH113..4D..06S199108-199308

W(FIXED TYPE),GRAY,TRIM1#

main74852-95J05-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#

main74852-95J05-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#,FR

74856BPLATE, SPRING SET

main74856-95A00iLH102,112,RZH103,109,113,119..06S198908-199508

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-95J00-03iRZH113..4D..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,RR

main74867-95J00-03iRZH113..4D..06S198908-199308

GRAY,TRIM1#,RR

main74867-95J00-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#,RR

main74867-95J03-03iRZH103..STD198908-199108

SWITZERLANDS & W(FIXED TYPE),GRAY,TRIM1#

main74867-95J03-03iRZH112..06S;LH112..5D..03S..5F;RZH109,113,119..03S198908-199308

GRAY,TRIM1#

main74867-95J03-03iRZH103..STD198908-199108

W(*FRS),GRAY,TRIM1#

main74867-95J03-03iRZH102..DX199010-199011

HUNGARY AMBULANCE SPEC,GRAY,TRIM1#

main74867-95J03-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

GRAY,TRIM1#,FR

main74867-95J03-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,FR

main74867-95J03-03iRZH113..4D..06S199108-199308

W(FIXED TYPE),GRAY,TRIM1#

main74867-95J03-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#,FR

main74867-95J03-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#

74879DBRACKET, SEPARATOR BAR, LOWER LH

main74879-95J01-03iRZH113..4D..06S198908-199308

GRAY,TRIM1#,RR

main74879-95J01-03iRZH113..4D..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,RR

main74879-95J01-B0iLH102,112,RZH103,109,11#..06S199308-199508

BLUISH GRAY,TRIM1#,RR

main74879-95J02-03iRZH103..STD198908-199108

SWITZERLANDS & W(FIXED TYPE),GRAY,TRIM1#

main74879-95J02-03iRZH112..06S;LH112..5D..03S..5F;RZH109,113,119..03S198908-199308

GRAY,TRIM1#

main74879-95J02-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

GRAY,TRIM1#,FR

main74879-95J02-03iRZH113..5D..06S;LH102,112,RZH109,119..06S198908-199308

W(DETACHABLE TYPE),GRAY,TRIM1#,FR

main74879-95J02-03iRZH113..4D..06S199108-199308

W(FIXED TYPE),GRAY,TRIM1#

main74879-95J02-03iRZH102..DX199010-199011

HUNGARY AMBLANCE SPEC,GRAY,TRIM1#

main74879-95J02-03iRZH113..4D..06S198908-199108

W(*FRS),GRAY,TRIM1#

main74879-95J02-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#

main74879-95J02-B0iLH112,RZH109,119..5D..03S..5F..EUR;RZH103,113..LHD..(03S,09S)..STD..EUR199308-199508

BLUISH GRAY,TRIM1#,FR

9011906235

main90119-06235

9011908326

main90119-08326

9011908409

main90119-08409

9011908426

main90119-08426

9011911017

main90119-11017

9015940092

main90159-40092

9017606024

main90176-06024

9017608015

main90176-08015

9017608033

main90176-08033

9020108069

main90201-08069

9033914001

main90339-14001

9050112079

main90501-12079

9050112118

main90501-12118

9324056016

main93240-56016

9461211000

main94612-11000

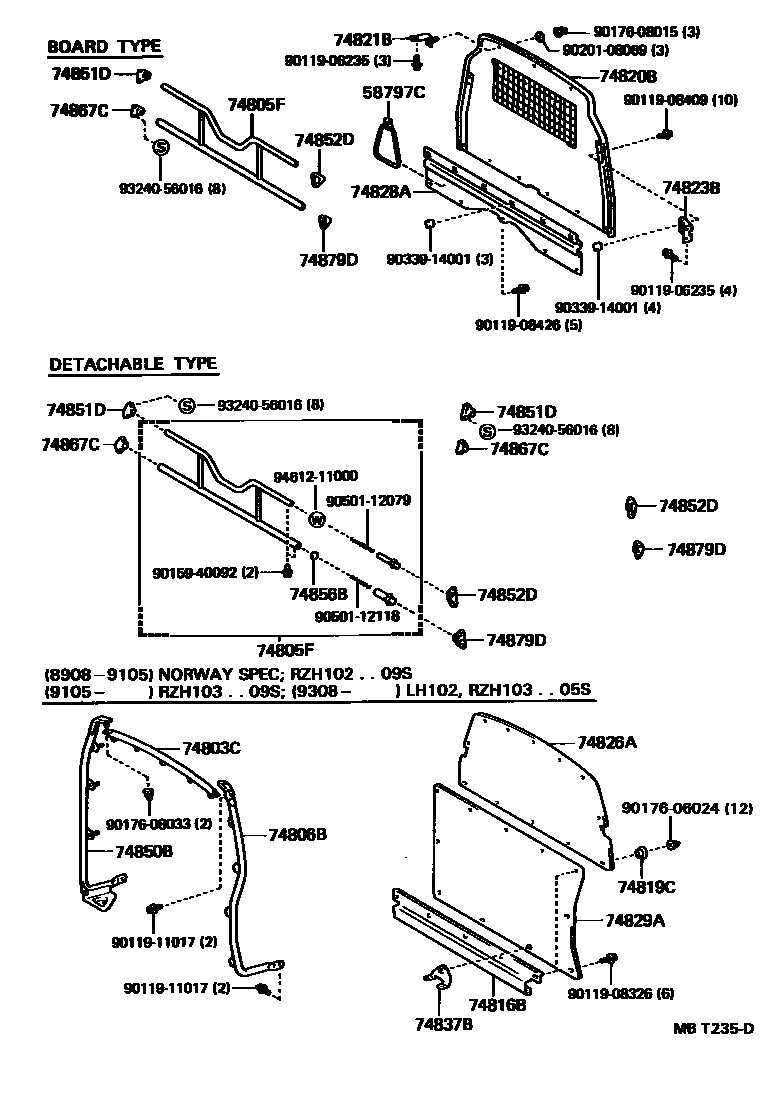

34 parts on this diagram · 1 diagram in section
