SLIDE ROLLER & RAIL

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-26010iLH10#,11#,RZH10#,11#199205-199508

main68029-95J00iLH10#,11#,RZH10#,11#198908-199205

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-95J02iLH10#,11#,RZH10#,11#..LHD198908-199508

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-95J03iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-95J00iLH10#,11#,RZH10#,11#..LHD198908-199508

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-95J00iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-95J03iLH10#,11#,RZH10#,11#..LHD198908-199201

main68310-95J04iLH10#,11#,RZH10#,11#199205-199308

68310AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68310-95J03iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH10#,113,119..5D198908-199201

main68310-95J04iRZH112..STD;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D199201-199508

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700×2iLH10#,11#,RZH10#,11#198908-199508

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iLH10#,11#,RZH10#,11#198908-199508

68345COVER, SLIDE DOOR CENTER RAIL

main68345-95J01-03iRZH102,103..DX; RZH102..4D..STD;LH102,112,RZH112..LHD..4D199010-199108

GRAY,TRIM1#; U.S.S.R SPEC,GRAY,TRIM1#

main68345-95J01-B0iLH10#,11#,RZH103,109,11#..5D; LH102,11#,RZH10#,11#..4D..(DX,STD)199308-199508

BLUISH GRAY,TRIM1#

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26020iLH118..DX199205-199308

W/O(REAR SEAT)

main68350-26030iLH102..03S..DX;LH102,11#,RZH10#,11#..05S,06S,09S199205-199508

main68350-95J04iRZH102..DX; RZH113,119..06S..5F;LH118,RZH103,109..SG199108-199205

HUNGARY AMBULANCE SPEC OR W/O(REAR SEAT); W/O(REAR SEAT)

main68350-95J05iLH102,11#,RZH10#,11#..06S,09S,15S198908-199205

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26030iRZH112..STD;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D..03S199205-199508

main68360-26060iLH102,112,RZH113..5D..06S199205-199508

main68360-95J06iRZH112..03S;LH102,112..RHD;LH10#,11#,RZH10#,113,119..5D..03S; RZH113..5D..06S..5F198908-199205

W/O REAR SEAT

main68360-95J08iLH102,112,RZH113..5D..06S198908-199205

68373MOULDING, SLIDE RAIL END, RH

main68373-95J02iLH10#,11#,RZH10#,11#..LHD198908-199508

68374MOULDING, SLIDE RAIL END, LH

main68374-95J01iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

68376BRACKET, SLIDE DOOR CENTER RAIL

main68376-95J00iLH10#,11#,RZH10#,11#198908-199508

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-95J02iLH10#,11#,RZH10#,11#..LHD198908-199508

68378PAD, SLIDE DOOR RAIL

main68378-95J02iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

68379SPRING, SLIDE DOOR CATCH, RH

main68379-95J01iLH10#,11#,RZH10#,11#..LHD198908-199508

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-95J04iLH10#,11#,RZH10#,11#..LHD198908-199508

68389SPRING, SLIDE DOOR CATCH, LH

main68389-95J01iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-95J02iRZH112..03S;LH102,112,RZH113..RHD;LH10#,11#,RZH10#,113,119..5D198908-199508

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95J00iRZH102..4D..STD;LH102,11#,RZH103,109,11#..4D; RZH102..DX198908-199105

W(*EL)

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95J05iLH10#,11#,RZH10#,112,113,119..5D; LH102,11#,RZH10#,11#..4D198908-199508

69413STOP, SLIDE DOOR DOWN MALE

main69416-95J01iRZH102..4D..STD;LH102,11#,RZH103,109,11#..4D; RZH102..DX198908-199105

W(*EL)

9010506050

main90105-06050

9010508108

main90105-08108

9011906524

main90119-06524

9011908589

main90119-08589

9011908774

main90119-08774

9015960413

main90159-60413

9016260005

main90162-60005

9017908046

main90179-08046

9018906063

main90189-06063

9054109027

main90541-09027

9054112009

main90541-12009

9324056025

main93240-56025

9674119017

main96741-19017

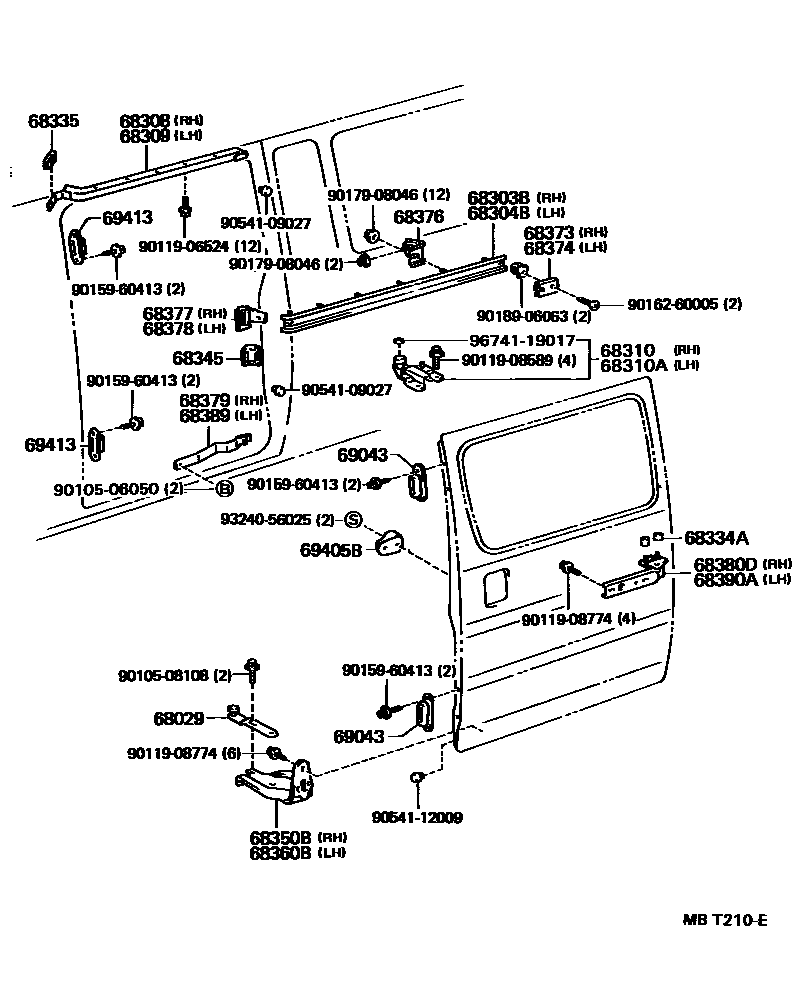

37 parts on this diagram · 1 diagram in section
