FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-26110iLH10#,11#,RZH10#,11#199205-199308

main67001-26120iLH102,RZH103..DX199205-199308

NORWAY SPEC & W(*EL)

main67001-26121iLH102,RZH103..GL199308-199508

main67001-26131iLH10#,11#,RZH10#,11#..DX,STD199308-199508

main67001-95J29iRZH102..STD;LH102,112,RZH112..LHD199108-199205

U.S.S.R. PACKAGE

main67001-95J30iLH10#,11#,RZH10#,11#198908-199205

main67001-95J34iRZH102..STD;LH10#,11#,RZH103,109,11#198908-199205

W(*EL)

main67001-95J35iLH102,RZH103..DX199108-199205

NORWAY SPEC & W(*EL)

main67001-95J36iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

U.S.S.R. PACKAGE & W(*EL)

67001ACUSHION, FRONT DOOR PANEL

main90541-09026×2iLH10#,11#,RZH10#,11#198908-199010

UPR

main90541-09038×2iLH10#,11#,RZH10#,11#199203-199508

LWR

main90541-09064×2iLH10#,11#,RZH10#,11#198908-199203

LWR

main90541-10025×2iLH10#,11#,RZH10#,11#199010-199508

UPR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-26110iLH10#,11#,RZH10#,11#199205-199308

main67002-26120iLH102,RZH103..DX199205-199308

NORWAY SPEC & W(*EL)

main67002-26121iLH102,RZH103..GL199308-199508

main67002-26131iLH10#,11#,RZH10#,11#..DX,STD199308-199508

main67002-95J28iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

U.S.S.R. PACKAGE

main67002-95J29iLH10#,11#,RZH10#,11#198908-199205

main67002-95J33iRZH102..STD;LH10#,11#,RZH103,109,11#198908-199205

W(*EL)

main67002-95J34iRZH102..DX198908-199205

*HGP

main67002-95J35iRZH102..STD;LH102,112,RZH112..LHD199108-199205

U.S.S.R. PACKAGE & W(*EL)

67111PANEL, FRONT DOOR, OUTER RH

main67111-95J05iLH10#,11#,RZH10#,11#198908-199508

67112PANEL, FRONT DOOR, OUTER LH

main67112-95J05iLH10#,11#,RZH10#,11#198908-199508

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-26010iLH10#,11#,RZH10#,11#199205-199308

main67403-26011iLH10#,11#,RZH10#,11#199308-199508

main67403-95J04iLH10#,11#,RZH10#,11#198908-199205

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-26010iLH10#,11#,RZH10#,11#199205-199308

main67404-26011iLH10#,11#,RZH10#,11#199308-199508

main67404-95J04iLH10#,11#,RZH10#,11#198908-199205

67829ASEAL, FRONT DOOR WIRE HOLE

main67829-95J00×2iLH10#,11#,RZH10#,11#..DX,STD198908-199508

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95J02iLH102,RZH103..GL199308-199508

main67831-95J04iRZH103..DX199105-199108

NORWAY SPEC & W(*EL)

main67831-95J05×2iLH10#,11#,RZH10#,11#..DX,STD198908-199508

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-95J05iLH10#,11#,RZH103,109,11#..DX,STD199308-199508

main67832-26010iLH102,RZH103..GL199411-199508

main67832-95J02iLH102,RZH103..GL199308-199411

main67832-95J03iLH102,RZH103..DX199108-199308

NORWAY SPEC & W(*EL)

67835BCOVER, FRONT DOOR SERVICE HOLE SUB

main67835-95J00iLH10#,11#,RZH10#,11#198908-199508

67836BCOVER, FRONT DOOR SERVICE HOLE SUB, LH

main67836-95J00iLH10#,11#,RZH10#,11#198908-199508

67837ASEAL, FRONT DOOR VENT, RH

main67837-95J00iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

67838ASEAL, FRONT DOOR VENT, LH

main67837-95J00iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95J04iLH10#,11#,RZH10#,11#198908-199106

main67861-95J05iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199106

U.S.S.R. PACKAGE

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95J04iLH10#,11#,RZH10#,11#198908-199106

main67862-95J05iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199106

U.S.S.R. PACKAGE

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-95J00iRZH102..STD;LH102,112,RZH112..LHD199108-199308

U.S.S.R. PACKAGE

main67863-95J01iLH10#,11#,RZH10#,11#198908-199508

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-95J02×13iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

U.S.S.R. PACKAGE,TYPE A

main67867-95J03iRZH102..STD;LH102,112,RZH112..LHD199108-199308

U.S.S.R. PACKAGE,TYPE B

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-95J00iRZH112..LHD..5F;LH102,112,RZH102..LHD199010-199108

U.S.S.R. PACKAGE

main67864-95J01iLH10#,11#,RZH10#,11#198908-199508

67864GRETAINER, DOOR WEATHERSTRIP, RH

main67867-95J03iRZH102..STD;LH102,112,RZH112..LHD199108-199308

U.S.S.R SPEC,TYPE B

main67868-95J00×10iLH10#,11#,RZH10#,11#198908-199508

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-95J02×20iLH10#,11#,RZH10#,11#198908-199508

67867GRETAINER, DOOR WEATHERSTRIP, RH

main67867-95J02×4iLH10#,11#,RZH10#,11#198908-199508

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67868-95J00×20iLH10#,11#,RZH10#,11#198908-199508

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-26010iLH10#,11#,RZH10#,11#..DX,STD199302-199508

*TEM,T=4.0

main68111-26020iLH102,RZH103..DX199302-199308

*TT,T=4.0,NORWAY SPEC

main68111-95J08iLH10#,11#,RZH10#,11#198908-199302

*TEM,T=4.0

main68111-95J09iRZH102..DX199005-199105

*TT,T=4.0,NORWAY SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-26010iLH10#,11#,RZH10#,11#..DX,STD199302-199508

*TEM,T=4.0

main68112-26020iLH102,RZH103..GL199308-199508

*TT,T=4.0

main68112-95J08iLH10#,11#,RZH10#,11#198908-199302

*TEM,T=4.0

main68112-95J09iRZH103..DX199105-199108

*TT,T=4.0,NORWAY SPEC

68127BSHUTTER, FRONT DOOR, LOWER RH

main68127-95J03×2iLH10#,11#,RZH10#,11#198908-199508

68141ERUN, FRONT DOOR GLASS, RH

main68141-95J04iLH10#,11#,RZH10#,11#198908-199508

68151DRUN, FRONT DOOR GLASS, LH

main68151-95J00iLH10#,11#,RZH10#,11#198908-199508

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-95J04iLH10#,11#,RZH10#,11#198908-199508

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68212-95J00×10iLH10#,11#,RZH10#,11#198908-199508

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95J02iLH10#,11#,RZH10#,11#198908-199508

RH

main68172-95J02iLH10#,11#,RZH10#,11#198908-199508

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-95J00×4iLH10#,11#,RZH10#,11#199308-199508

NO.1

main68211-95J02×8iLH10#,11#,RZH10#,11#199308-199409

NO.2-RH

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-95J04iLH10#,11#,RZH10#,11#198908-199508

68610CHECK ASSY, FRONT DOOR

main68610-26010×2iLH10#,11#,RZH10#,11#199205-199508

main68610-95J01×2iLH10#,11#,RZH10#,11#198908-199205

68617PIN, FRONT DOOR CHECK

main68617-20011×2iLH10#,11#,RZH10#,11#198908-199508

69951BRACKET, FRONT DOOR GLASS

main69951-26020×2iLH10#,11#,RZH10#,11#199302-199308

FR

main69951-95J00×2iLH10#,11#,RZH10#,11#198908-199302

RR

main69951-95J01×2iLH10#,11#,RZH10#,11#198908-199302

FR

69961ARETAINER, FRONT DOOR GLASS

main69961-26020×4iLH10#,11#,RZH10#,11#199302-199508

75735BMOULDING, FRONT DOOR OUTSIDE, LOWER

main75735-95J01×2iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S198908-199010

9016740046

main90167-40046

9017906070

main90179-06070

9165160612

main91651-60612

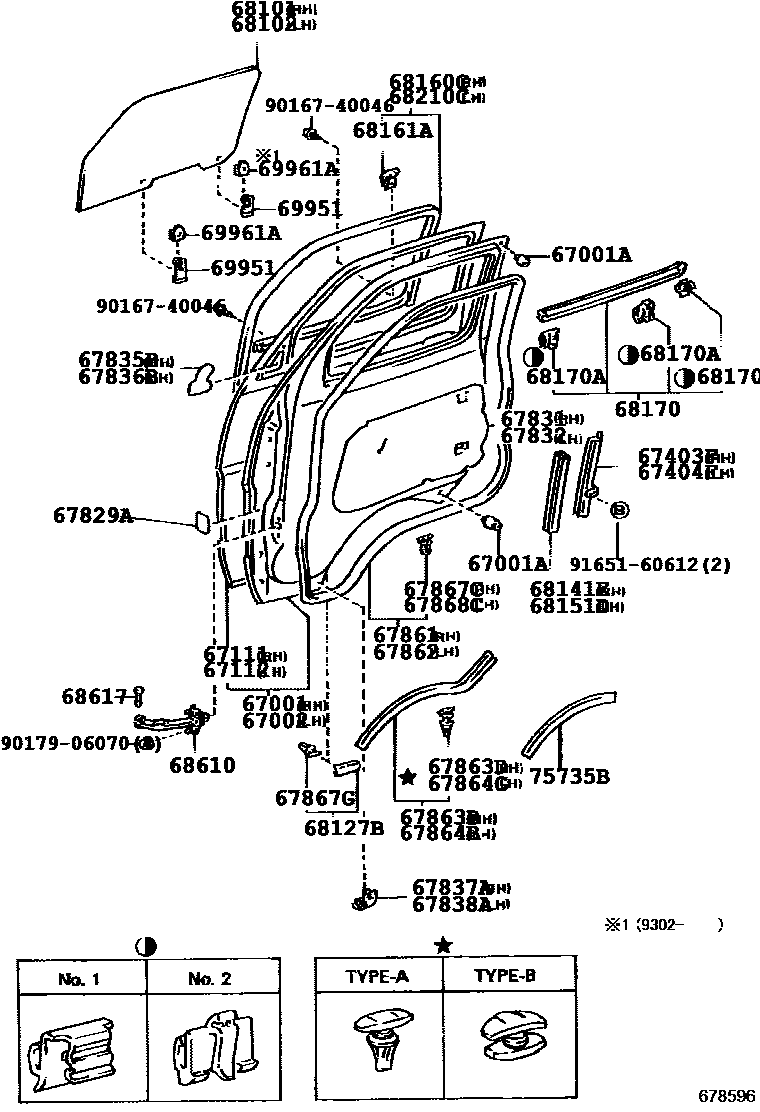

41 parts on this diagram · 2 diagrams in section
