EPC Data

FLOOR MAT & SILENCER PAD

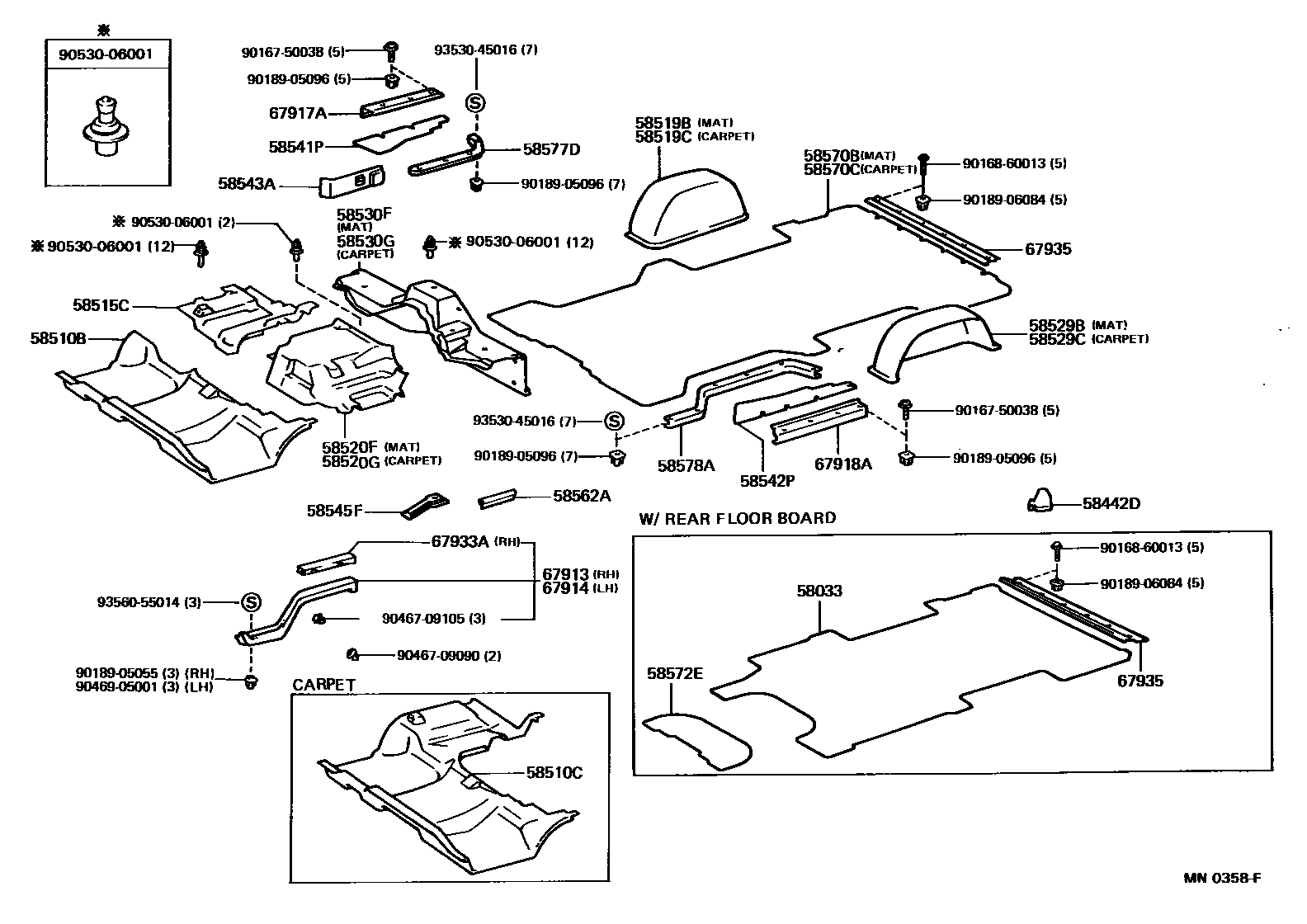

Parts diagram
58033BOARD SUB-ASSY, REAR FLOOR
main58033-95J14-03i198908-199308
GRAY,TRIM1#
main58033-95J14-B0i199308-199508
BLUISH GRAY,TRIM1#
main58033-95J15-03i198908-199105
GRAY,TRIM1#; W(VINYL MAT TYPE),GRAY,TRIM1#
main58033-95J15-B0i199308-199508
BLUISH GRAY,TRIM1#; W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58033-95J16-03i199108-199308
GRAY,TRIM1#
main58033-95J16-B0i199308-199508
BLUISH GRAY,TRIM1#
main58033-95J17-03i199105-199308
W(VINYL MAT TYPE),GRAY,TRIM1#
main58033-95J17-B0i199308-199508
BLUISH GRAY,TRIM1#; W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58033-95J18-03i198908-199105
NORWAY SPEC,GRAY,TRIM1#
main58033-95J18-B0i199308-199508
NORWAY SPEC & W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58033-95J19-03i198908-199105
SWEDEN SPEC,GRAY,TRIM1#
main58033-95J19-B0i199308-199508
BLUISH GRAY,TRIM1#; NORWAY SPEC & W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
58442DCOVER, JACK
main58442-95J06-03i199108-199308
NORWAY SPEC,GRAY,TRIM1#
main58442-95J06-B0i199308-199508
BLUISH GRAY,TRIM1#
58510BMAT, FRONT FLOOR, FRONT
main58510-95J63-03i198908-199308
GRAY,TRIM1#
main58510-95J66-03i198908-199012
GRAY,TRIM1#
main58510-95J67-03i198908-199308
GRAY,TRIM1#
main58510-95J67-13i199308-199508
BLUISH GRAY,TRIM1#
main58510-95J76-03i198908-199308
COLD SPEC,GRAY,TRIM1#
main58510-95J76-13i199308-199508
BLUISH GRAY,TRIM1#
main58510-95J77-03i199012-199308
GRAY,TRIM1#
main58510-95J77-13i199308-199508
BLUISH GRAY,TRIM1#
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-26270-B0i199408-199508
BLUISH GRAY,TRIM1#
main58510-26280-B0i199408-199508
BLUISH GRAY,TRIM1#
main58510-95J73-03i199108-199205
W(RECLINING FRONT SEAT(DRIVER)),GRAY,TRIM1#
main58510-95J80-03i199105-199108
NORWAY SPEC,GRAY,TRIM1#
main58510-95J80-16i199308-199408
BLUISH GRAY,TRIM1#
main58510-95J80-B1i199408-199508
BLUISH GRAY,TRIM1#
main58510-95J88-03i198908-199308
GRAY,TRIM1#
main58510-95J88-17i199308-199408
BLUISH GRAY,TRIM1#
main58510-95J89-03i198908-199205
W(LOOP PILE CARPET),GRAY,TRIM1#
main58510-95N00-03i199205-199308
GRAY,TRIM1#
main58510-95N00-17i199308-199408
BLUISH GRAY,TRIM1#
58515CMAT, FRONT FLOOR, REAR NO.1
main58515-95J00-03i198908-199308
GRAY,TRIM1#
main58515-95J00-13i199308-199508
BLUISH GRAY,TRIM1#
main58515-95J01-03i198908-199010
GRAY,TRIM1#
main58515-95J01-13i199308-199508
BLUISH GRAY,TRIM1#
main58515-95J02-03i199205-199308
GRAY,TRIM1#; W(RECLINING FRONT SEAT),GRAY,TRIM1#
main58515-95J02-13i199308-199508
BLUISH GRAY,TRIM1#; W(RECLINING FRONT SEAT),BLUISH GRAY,TRIM1#
58519BMAT, REAR WHEEL HOUSE, RH
main58519-95J20-03i199011-199308
AMBULANCE & W(REAR HEATER),GRAY,TRIM1#
main58519-95J20-13i199308-199508
BLUISH GRAY,TRIM1#
main58519-95J21-03i199011-199308
GRAY,TRIM1#; W(REAR HEATER),GRAY,TRIM1#
main58519-95J21-13i199308-199508
BLUISH GRAY,TRIM1#
main58519-95J22-03i198908-199308
GRAY,TRIM1#
main58519-95J22-13i199308-199508
BLUISH GRAY,TRIM1#
main58519-95J35-02i198908-199205
GRAY,TRIM1#
58519CCARPET, REAR WHEEL HOUSE, RH
main58519-95J30-03i199108-199308
NORWAY SPEC,GRAY,TRIM1#
main58519-95J30-16i199308-199408
BLUISH GRAY,TRIM1#
main58519-95J30-B1i199408-199508
BLUISH GRAY,TRIM1#
main58519-95J38-03i199108-199308
GRAY,TRIM1#; W(REAR HEATER),GRAY,TRIM1#
main58519-95J39-03i198908-199308
GRAY,TRIM1#
58520FMAT ASSY, ENGINE COVER
main58520-95J51-03i198908-199308
GRAY,TRIM1#
main58520-95J51-13i199308-199508
BLUISH GRAY,TRIM1#
main58520-95J54-03i198908-199006
GRAY,TRIM1#
main58520-95J55-03i198908-199006
UNITED KINGDOM SPEC,GRAY,TRIM1#
main58520-95J55-13i199308-199508
BLUISH GRAY,TRIM1#
main58520-95J56-03i198908-199205
GRAY,TRIM1#
main58520-95J56-13i199308-199508
BLUISH GRAY,TRIM1#
main58520-95J62-03i198908-199205
W/O(FRONT SEAT BELT),GRAY,TRIM1#
58520GCARPET ASSY, ENGINE COVER
main58520-26150-B0i199408-199508
BLUISH GRAY,TRIM1#
main58520-95J38-03i198908-199205
GRAY,TRIM1#; W(LOOP PILE CARPET),GRAY,TRIM1#
main58520-95J38-17i199308-199408
BLUISH GRAY,TRIM1#
main58520-95J52-03i199105-199108
NORWAY SPEC,GRAY,TRIM1#
main58520-95J52-16i199308-199408
BLUISH GRAY,TRIM1#
main58520-95J52-B1i199408-199508
BLUISH GRAY,TRIM1#
main58520-95J63-03i198908-199205
W/O(FRONT SEAT BELT),GRAY,TRIM1#
58529BMAT, REAR WHEEL HOUSE, LH
main58519-95J20-03i198908-199308
GRAY,TRIM1#
main58519-95J20-13i199308-199508
BLUISH GRAY,TRIM1#
main58529-95J00-03i198908-199205
GRAY,TRIM1#
main58529-95J15-03i199011-199308
GRAY,TRIM1#; W(REAR HEATER),GRAY,TRIM1#
main58529-95J15-13i199308-199508
BLUISH GRAY,TRIM1#
main58529-95J16-03i198908-199308
GRAY,TRIM1#
main58529-95J16-13i199308-199508
BLUISH GRAY,TRIM1#
58529CCARPET, REAR WHEEL HOUSE, LH
main58519-95J30-03i199105-199108
NORWAY SPEC,GRAY,TRIM1#
main58519-95J30-16i199308-199408
BLUISH GRAY,TRIM1#
main58519-95J30-B1i199408-199508
BLUISH GRAY,TRIM1#
main58529-95J26-03i199108-199308
GRAY,TRIM1#; W(REAR HEATER),GRAY,TRIM1#
main58529-95J27-03i198908-199308
GRAY,TRIM1#
58530FMAT ASSY, HEADER
main58530-95J75-03i198908-199205
GRAY,TRIM1#
main58530-95J75-13i199308-199508
BLUISH GRAY,TRIM1#
main58530-95J78-03i198908-199010
GRAY,TRIM1#
main58530-95J78-13i199308-199508
BLUISH GRAY,TRIM1#
main58530-95J80-03i198908-199308
GRAY,TRIM1#
main58530-95J80-13i199308-199508
BLUISH GRAY,TRIM1#
main58530-95N08-03i199205-199308
FINLAND SPEC OR WEST GERMANY SPEC,GRAY,TRIM1#; GRAY,TRIM1#; W(RECLINING FRONT SEAT),GRAY,TRIM1#
main58530-95N08-13i199308-199508
BLUISH GRAY,TRIM1#; W(RECLINING FRONT SEAT),BLUISH GRAY,TRIM1#
main58530-95N09-03i198908-199010
W(RECLINING FRONT SEAT),GRAY,TRIM1#
main58530-95N09-13i199308-199508
BLUISH GRAY,TRIM1#; W(RECLINING FRONT SEAT),BLUISH GRAY,TRIM1#
main58530-95N12-03i198908-199010
GRAY,TRIM1#; NORWAY SPEC OR W(BOARD TYPE ROOM SEPARATOR),GRAY,TRIM1#; W(BORD TYPE ROOM SEPARATOR),GRAY,TRIM1#
main58530-95N12-13i199308-199508
W(BORD TYPE ROOM SEPARATOR),BLUISH GRAY,TRIM1#
main58530-95N21-03i199104-199308
W(BOARD TYPE ROOM SEPARATOR),GRAY,TRIM1#; W(BORD TYPE ROOM SEPARATOR),GRAY,TRIM1#
main58530-95N21-13i199308-199508
W(BORD TYPE ROOM SEPARATOR),BLUISH GRAY,TRIM1#
58530GCARPET ASSY, HEADER
main58530-26200-B0i199408-199508
BLUISH GRAY,TRIM1#
main58530-95J81-03i198908-199205
W(LOOP PILE CARPET),GRAY,TRIM1#
main58530-95N01-03i198908-199105
W(BORD TYPE ROOM SEPARATOR),GRAY,TRIM1#
main58530-95N01-16i199308-199408
BLUISH GRAY,TRIM1#
main58530-95N01-B0i199408-199508
BLUISH GRAY,TRIM1#
main58530-95N14-03i199205-199308
GRAY,TRIM1#; W(LOOP PILE CARPET),GRAY,TRIM1#
main58530-95N14-17i199308-199408
BLUISH GRAY,TRIM1#
58541PMAT, STEP, RH
main58541-95J02-03i198908-199308
GRAY,TRIM1#
main58541-95J02-13i199308-199508
BLUISH GRAY,TRIM1#
58542PMAT, STEP, LH
main58542-95J05-03i198908-199308
GRAY,TRIM1#
main58542-95J05-13i199308-199508
BLUISH GRAY,TRIM1#
58543ACARPET, STEP SIDE, RH
main58543-95J02-03i198908-199105
NORWAY SPEC & W(BUILT IN TYPE REAR HEATER),GRAY,TRIM1#
main58543-95J02-16i199308-199408
BLUISH GRAY,TRIM1#
main58543-95J02-B0i199408-199508
BLUISH GRAY,TRIM1#
58545FCOVER, ENGINE SERVICE HOLE CATCH
main58545-26010-B0i199408-199508
BLUISH GRAY,TRIM1#; W(LOOP PILE CARPET),BLUISH GRAY,TRIM1#
main58545-95J01-03i199108-199308
*FRG,GRAY,TRIM1#
main58545-95J01-13i199308-199508
BLUISH GRAY,TRIM1#
main58545-95J12-03i199108-199308
*FRG & W(LOOP PILE CARPET),GRAY,TRIM1#; *FRG,GRAY,TRIM1#
main58545-95J12-17i199308-199408
BLUISH GRAY,TRIM1#; W(LOOP PILE CARPET),BLUISH GRAY,TRIM1#
58562ACARPET, FRONT SEAT SIDE, LH
main58562-95J10-03i199108-199308
NORWAY SPEC,GRAY,TRIM1#
main58562-95J10-16i199308-199408
BLUISH GRAY,TRIM1#
main58562-95J10-B1i199408-199508
BLUISH GRAY,TRIM1#
58570BMAT ASSY, REAR FLOOR
main58050-95J55i199411-199508
main58050-95J56-03i198908-199308
GRAY,TRIM1#
main58050-95J62-03i198908-199308
GRAY,TRIM1#
main58050-95J66-03i198908-199205
GRAY,TRIM1#
main58517-95N27-03i198908-199105
GRAY,TRIM1#
main58517-95N27-13i199308-199508
BLUISH GRAY,TRIM1#; W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58517-95N29-03i198908-199205
GRAY,TRIM1#
main58517-95N30-03i198908-199006
W/O (REAR SEAT),GRAY,TRIM1#
main58517-95N30-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N32-03i198908-199006
W/O (REAR SEAT),GRAY,TRIM1#
main58517-95N36-03i198908-199308
GRAY,TRIM1#
main58517-95N36-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N38-03i199108-199308
W(FOLDING REAR SEAT),GRAY,TRIM1#
main58517-95N40-03i198908-199308
GRAY,TRIM1#
main58517-95N40-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N47-03i199105-199308
GRAY,TRIM1#
main58517-95N47-13i199308-199508
BLUISH GRAY,TRIM1#; W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58517-95N49-03i198908-199105
NORWAY SPEC,GRAY,TRIM1#
main58517-95N49-13i199308-199508
NORWAY SPEC & W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58517-95N50-03i198908-199308
GRAY,TRIM1#
main58517-95N50-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N51-03i198908-199308
GRAY,TRIM1#; W/O (REAR SEAT),GRAY,TRIM1#
main58517-95N51-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N54-03i199105-199308
NORWAY SPEC,GRAY,TRIM1#; SWEDEN SPEC OR NORWAY SPEC,GRAY,TRIM1#
main58517-95N54-13i199308-199508
BLUISH GRAY,TRIM1#; NORWAY SPEC & W(VINYL MAT TYPE),BLUISH GRAY,TRIM1#
main58517-95N55-03i198908-199205
SWEDEN SPEC,GRAY,TRIM1#
main58517-95N56-03i198908-199308
GRAY,TRIM1#
main58517-95N56-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N58-03i198908-199205
SWEDEN SPEC,GRAY,TRIM1#
main58517-95N60-03i198908-199308
W(FOLDING REAR SEAT),GRAY,TRIM1#
main58517-95N60-13i199308-199508
BLUISH GRAY,TRIM1#
main58517-95N62-03i198908-199308
GRAY,TRIM1#
main58517-95N62-13i199308-199508
BLUISH GRAY,TRIM1#
main58570-26230-B0i199308-199508
BLUISH GRAY,TRIM1#
main58570-26240-B0i199308-199508
BLUISH GRAY,TRIM1#
main58570-95U03-03i198908-199205
W(FLOOR SET TYPE REAR HEATER),GRAY,TRIM1#
58570CCARPET ASSY, REAR FLOOR
main58050-95J29-03i199108-199308
GRAY,TRIM1#; W(LOOP PILE CARPET),GRAY,TRIM1#
main58050-95J30-03i198908-199308
GRAY,TRIM1#
main58050-95J63-03i198908-199010
W(FOLDING REAR SEAT),GRAY,TRIM1#
main58050-95J64-03i199108-199308
W(LOOP PILE CARPET) & W/O(REAR SEAT),GRAY,TRIM1#; W/0(REAR SEAT),GRAY,TRIM1#
main58050-95J64-17i199308-199408
BLUISH GRAY,TRIM1#
main58050-95J67-03i198908-199105
NORWAY SPEC,GRAY,TRIM1#
main58050-95J67-16i199308-199408
BLUISH GRAY,TRIM1#
main58050-95J67-B1i199408-199508
BLUISH GRAY,TRIM1#
main58570-26210-B0i199408-199508
BLUISH GRAY,TRIM1#
main58570-26250-B0i199308-199408
BLUISH GRAY,TRIM1#
main58570-26251-B1i199408-199508
BLUISH GRAY,TRIM1#
main58570-26260-B0i199308-199408
BLUISH GRAY,TRIM1#
main58570-26261-B1i199408-199508
BLUISH GRAY,TRIM1#
58572EMAT, REAR FLOOR, FRONT
main58572-95J10-03i199010-199105
GRAY,TRIM1#
main58572-95J10-13i199308-199508
BLUISH GRAY,TRIM1#
58577DPLATE, REAR FLOOR MAT SUPPORT SIDE, RH
main58577-95J02i199308-199508
main58577-95J03i199105-199108
NORWAY SPEC
58578APLATE, REAR FLOOR MAT SUPPORT SIDE, LH
main58578-95J04i198908-199205
67913PLATE, FRONT DOOR SCUFF, RH
main67910-95J00-03i198908-199308
GRAY,TRIM1#
main67910-95J00-B0i199308-199508
BLUISH GRAY,TRIM1#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-95J01-03i198908-199308
GRAY,TRIM1#
main67914-95J01-B0i199308-199508
BLUISH GRAY,TRIM1#
67917APLATE, REAR DOOR SCUFF, RH
main67917-95J02i199308-199508
main67917-95J03i199308-199508
67918APLATE, REAR DOOR SCUFF, LH
main67918-95J05i198908-199508
67933APLATE, FRONT DOOR SCUFF, REAR RH
main67933-95J00-03i198908-199308
GRAY,TRIM1#
main67933-95J00-B0i199308-199508
BLUISH GRAY,TRIM1#
67935PLATE, BACK DOOR SCUFF
main67904-95J02-03i199108-199308
NORWAY SPEC,GRAY,TRIM1#
main67904-95J02-B0i199308-199508
BLUISH GRAY,TRIM1#
main67935-95J02i198908-199508
main67935-95J03i199308-199508
W(VINYL MAT TYPE)
9016750038
main90167-50038
9016860013
main90168-60013
9018905055
main90189-05055
9018905096
main90189-05096
9018906084
main90189-06084
9046709090
main90467-09090
9046709105
main90467-09105
9046905001
main90469-05001
9053006001
main90530-06001
9353045016
main93530-45016
9356055014
main93560-55014

40 parts on this diagram · 1 diagram in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
