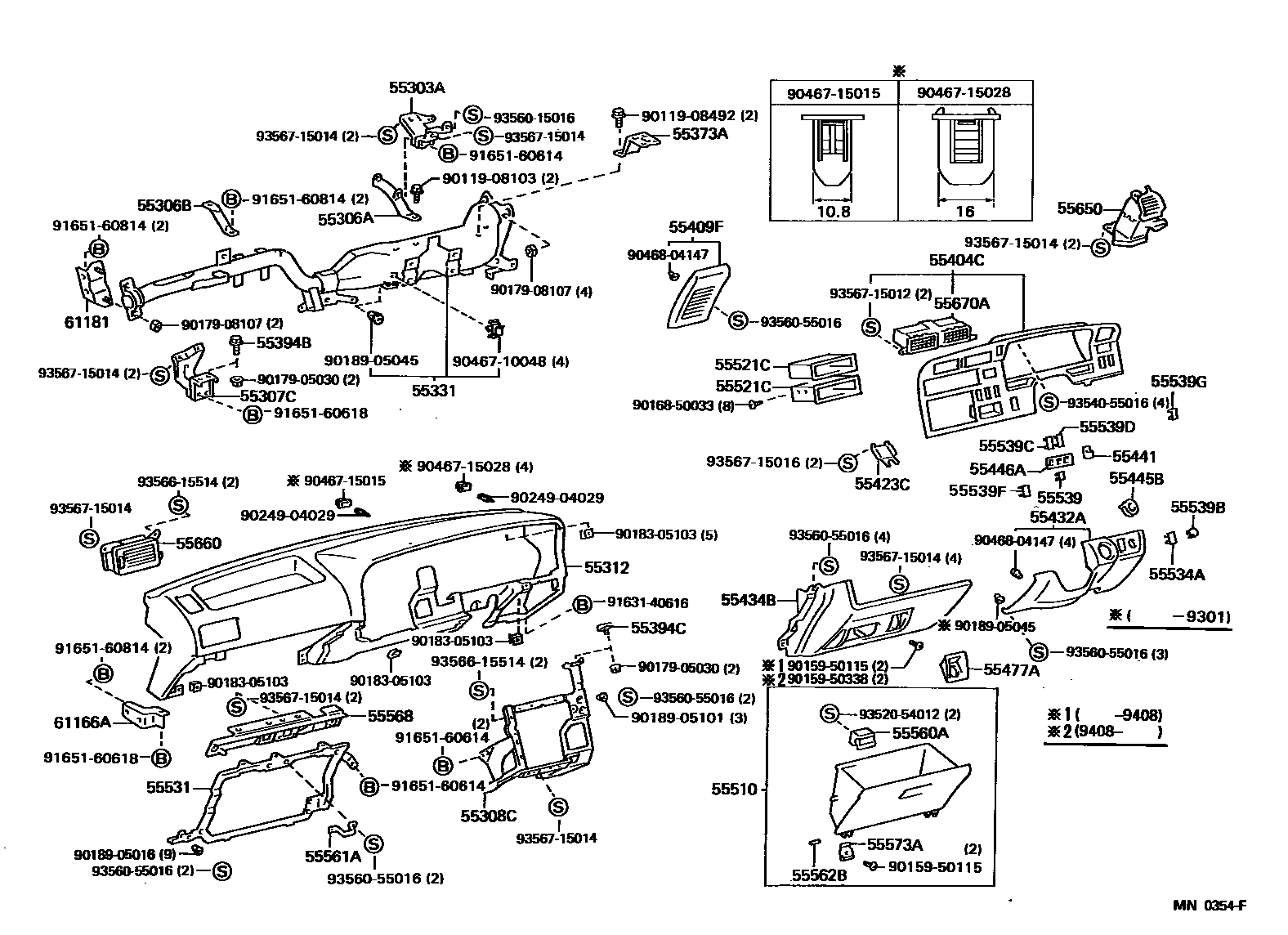

INSTRUMENT PANEL & GLOVE COMPARTMENT
55303ASTAY SUB-ASSY, INSTRUMENT PANEL
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55312PANEL, INSTRUMENT, LOWER
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55331REINFORCEMENT, INSTRUMENT PANEL
55373ABRACKET, OIL RESERVOIR TANK
55394BBOLT, INSTRUMENT PANEL
55394CBOLT, INSTRUMENT PANEL
55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2
*FRG
*FRG; SWEDEN SPEC
*FRG & W(RADIO); WEST GERMANY SPEC & W(RADIO)
*FRG & W(RADIO); SWEDEN SPEC & W(RADIO)
W(RADIO)
main55404-26210iLH102,112,RZH103,113..FRG,SDN;LH102,11#,RZH103,109,11#..(DX,GL)..EUR; RZH102;LH10#,11#,RZH103,109,11#..LHD..STD..EUR199308-199508
W(RADIO)
*FRG; SWEDEN SPEC
*FRG; CANARY ISLAND SPEC
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55423CCOVER, CLOCK OPENING
55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH
BLUISH GRAY,TRIM1#
W(FUEL LID OPENER),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
W(FUEL LID OPENER),GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
GRAY,TRIM1#
main55432-95J07-03iLH102,118,RZH119..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S; LH112..DX; RZH113..DX198908-199002
*FRG & W(FUEL LID OPENER),GRAY,TRIM1#; CANARY ISLANDS SPEC & W(FUEL LID OPNER),GRAY,TRIM1#; SWEDEN SPEC & W(FUEL LID OPNER),GRAY,TRIM1#
main55432-95J08-03iLH102,118,RZH119..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S; LH112..DX; RZH113..DX198908-199002
*FRG,GRAY,TRIM1#; CANARY ISLANDS SPEC,GRAY,TRIM1#; SWEDEN SPEC,GRAY,TRIM1#
55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55441BOX, INSTRUMENT PANEL
55445BPLATE, INSTRUMENT PANEL FINISH
55446ABASE, SWITCH HOLE, NO.1
main55446-95J00iRZH113..DX..SDN;LH108,118,RZH109,119;LH102,112..LHD..(03S,05S,09S)..EUR;RZH103,113..LHD..(03S,05S)..(EUR,SDN)199308-199508
55477ABEZEL, CIGARETTE LIGHTER HOLE
NORWAY SPEC & W(ILLUMINATION); W(ILLUMINATION)
55510DOOR ASSY, GLOVE COMPARTMENT
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55521CCOVER, STEREO OPENING
main55521-16030iLH102..LHD..SP;LH102,118,RZH113,119..DX;LH108,112,RZH102,109..LHD..(03S,09S)..5F; LH112..4FC;RZH112..LHD;RZH103,109..4D;LH102,112..SG..STD;LH118,RZH113,115,119..STD198908-199010
W(RADIO)
CANARY ISLANDS SPEC & W(RADIO); SWEDEN SPEC & W(RADIO); WEST GERMANY SPEC & W(RADIO)
55531PANEL, GLOVE COMPARTMENT
main55305-95J04iLH102,118..DX;LH102,112..LHD..SP..5F;LH108,RZH102,109..03S,09S; RZH113,119..DX198908-199010
*FRG; SWEDEN SPEC
55534ACOVER, ILLUMINATION LAMP HOLE
BLACK,TRIM1#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#
55539COVER, SPARE SWITCH HOLE
BLACK,TRIM1#; NORWAY SPEC,BLACK,TRIM1#
main55539-32010-B0iLH10#,11#,RZH10#,11#; LH108,118,RZH109,119; RZH103,113..LHD..03S..5F..EUR;LH102,112..LHD..(03S,09S)..EUR199308-199401
BLUISH GRAY,TRIM1#; W(SEAT HEATER),BLUISH GRAY,TRIM1#
main55539-32010-C0iLH10#,11#,RZH10#,11#; LH108,118,RZH109,119; RZH103,113..LHD..03S..5F..EUR;LH102,112..LHD..(03S,09S)..EUR199308-199405
BLACK,TRIM1#; W(SEAT HEATER),BLACK,TRIM1#
55539BCOVER, SPARE SWITCH HOLE, NO.2
55539CCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#
55539DCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#
55539FCOVER, SPARE SWITCH HOLE
main55539-32010-B0iLH102,112,RZH103..5D..03S..EUR; LH108;RZH103,113..LHD..4D..03S;LH102,112..LHD..4D..(DX,STD)..EUR; LH118,RZH11#..5D..03S..EUR; RZH113..SDN;LH102,RZH103..GL199308-199401
BLUISH GRAY,TRIM1#; DENMARK SPEC,BLUISH GRAY,TRIM1#; NORWAY SPEC OR DENMARK SPEC,BLUISH GRAY,TRIM1#; NORWAY SPEC,BLUISH GRAY,TRIM1#
main55539-32010-C0iLH102,112,RZH103..5D..03S..EUR; LH108;RZH103,113..LHD..4D..03S;LH102,112..LHD..4D..(DX,STD)..EUR; LH118,RZH11#..5D..03S..EUR199308-199408
DENMARK SPEC,BLACK,TRIM1#; NORWAY SPEC OR DENMARK SPEC,BLACK,TRIM1#; NORWAY SPEC,BLACK,TRIM1#
55539GCOVER, SPARE SWITCH HOLE
BLACK,TRIM1#
BLUISH GRAY,TRIM1#
BLACK,TRIM1#
55560ALOCK ASSY, GLOVE COMPARTMENT DOOR
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55562BPIN, GLOVE COMPARTMENT DOOR LOCK
55568PLATE, GLOVE COMPARTMENT DOOR PAD
GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
55573AHINGE, GLOVE COMPARTMENT DOOR
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
BLUISH GRAY,TRIM1#
GRAY,TRIM1#
55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER
61166ABRACKET, INSTRUMENT PANEL TO COWL SIDE, LH
61181BRACKET, INSTRUMENT PANEL SIDE
9011908103
main90119-08103
9011908492
main90119-08492
9015950115
main90159-50115
9015950338
main90159-50338
9016850033
main90168-50033
9017905030
main90179-05030
9017908107
main90179-08107
9018305103
main90183-05103
9018905016
main90189-05016
9018905045
main90189-05045
9018905101
main90189-05101
9024904029
main90249-04029
9046710048
main90467-10048
9046715015
main90467-15015
9046715028
main90467-15028
9046804147
main90468-04147
9163140616
main91631-40616
9165160614
main91651-60614
9165160618
main91651-60618
9165160814
main91651-60814
9352054012
main93520-54012
9354055016
main93540-55016
9356015016
main93560-15016
9356055016
main93560-55016
9356615514
main93566-15514
9356715012
main93567-15012
9356715014
main93567-15014
9356715016
main93567-15016
67 parts on this diagram · 2 diagrams in section
