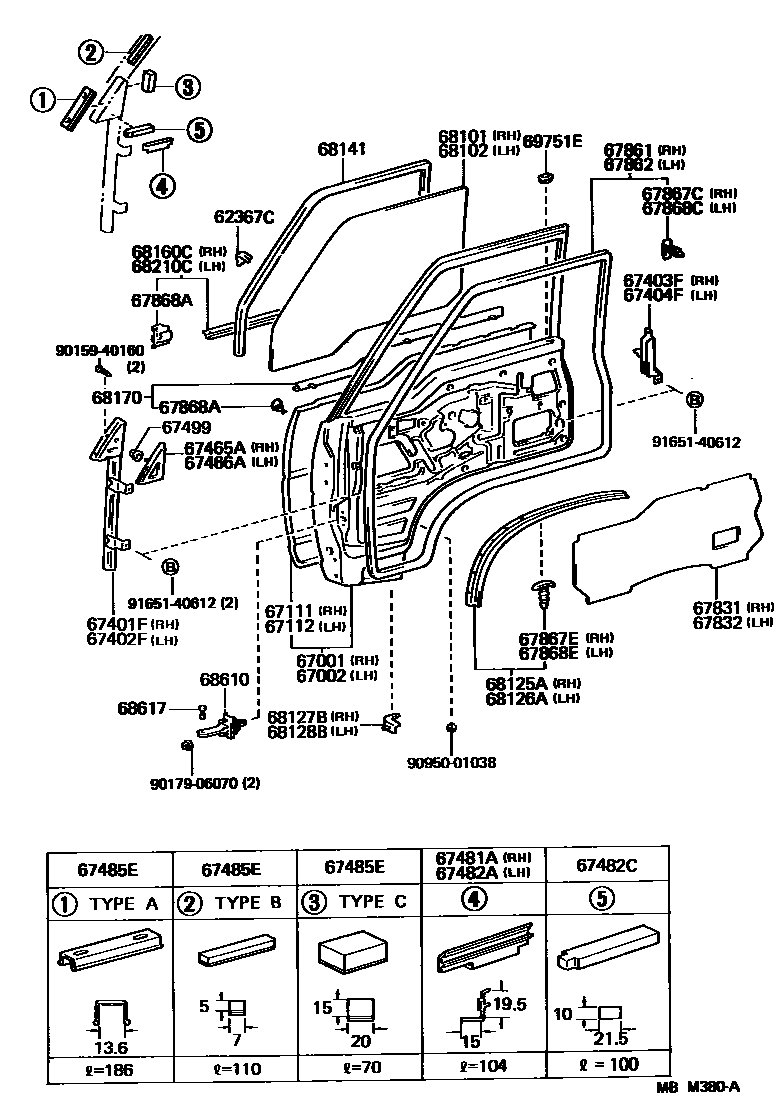

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62367CCLIP, DOOR WINDOW GLASS

main62367-10010×2iLH5#,6#,YH5#,6#198708-198908

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95J22iLH5#,6#,YH5#,6#198708-198908

main67001-95J25iYH51..U198709-198908

HIGH GRADE PACKAGE

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95J18iLH5#,6#,YH5#,6#198708-198908

main67002-95J23iYH51..U198709-198908

HIGH GRADE PACKAGE

67111PANEL, FRONT DOOR, OUTER RH

main67111-95J00iLH5#,6#,YH5#,6#198708-198908

67112PANEL, FRONT DOOR, OUTER LH

main67112-95J00iLH5#,6#,YH5#,6#198708-198908

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-95J00iLH5#,6#,YH5#,6#198708-198908

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-95J01iLH5#,6#,YH5#,6#198708-198908

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-95J02iLH5#,6#,YH5#,6#198708-198908

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-95J02iLH5#,6#,YH5#,6#198708-198908

67465AINNER GARNISH, UPPER BRACKET, RH

main67465-95J00iLH5#,6#,YH5#,6#198708-198908

67466AINNER GARNISH, UPPER BRACKET, LH

main67466-95J00iLH5#,6#,YH5#,6#198708-198908

67481ASEAL, FRONT DOOR FRONT LOWER FRAME, RH

main67481-95J00iLH5#,6#,YH5#,6#198708-198908

67482ASEAL, FRONT DOOR FRONT LOWER FRAME, LH

main67482-95J01iLH5#,6#,YH5#,6#198708-198908

67482CPACKING, FRONT DOOR FRONT LOWER FRAME

main67482-95J00×2iLH5#,6#,YH5#,6#198708-198908

67485ESEAL, FRONT DOOR BRACKET

main67485-95J00×2iLH5#,6#,YH5#,6#198708-198908

TYPE A

main67485-95J01×2iLH5#,6#,YH5#,6#198708-198908

TYPE B

main67485-95J02×2iLH5#,6#,YH5#,6#198708-198908

TYPE C

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-30010×2iLH5#,6#,YH5#,6#198708-198908

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95J00iLH5#,6#,YH5#,6#198708-198908

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95J00iLH5#,6#,YH5#,6#198708-198908

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95J00iLH5#,6#,YH5#,6#198708-198908

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95J00iLH5#,6#,YH5#,6#198708-198908

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67868-95401×27iLH5#,6#,YH5#,6#198708-198908

67867ERETAINER, FRONT DOOR LOWER PROTECTOR, RH

main67868-30040×11iLH5#,6#,YH5#,6#198708-198908

67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)

main68212-95J00×12iLH5#,6#,YH5#,6#198708-198908

OUTER

main90467-08071×14iLH5#,6#,YH5#,6#198708-198908

INNER

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-95401×27iLH5#,6#,YH5#,6#198708-198908

67868ERETAINER, FRONT DOOR LOWER PROTECTOR, LH

main67868-30040×11iLH5#,6#,YH5#,6#198708-198908

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95J00iLH5#,6#,YH5#,6#198708-198908

*TEM,T=4.0

main68111-95J01iYH51..U198709-198908

*TT,T=4.0,HIGH GRADE PACKAGE

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95J00iLH5#,6#,YH5#,6#198708-198908

*TEM,T=4.0

main68112-95J01iYH51..U198709-198908

*TT,T=4.0,HIGH GRADE PACKAGE

68125APROTECTOR, FRONT DOOR, LOWER RH

main68125-95J04iLH5#,6#,YH5#,6#198708-198908

68126APROTECTOR, FRONT DOOR, LOWER LH

main68126-95J04iLH5#,6#,YH5#,6#198708-198908

68127BSHUTTER, FRONT DOOR, LOWER RH

main68127-95J02iLH5#,6#,YH5#,6#198708-198908

68128BSHUTTER, FRONT DOOR, LOWER LH

main68128-95J02iLH5#,6#,YH5#,6#198708-198908

68141RUN, FRONT DOOR GLASS

main68141-95J02×2iLH5#,6#,YH5#,6#198708-198908

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-95J04iLH5#,6#,YH5#,6#198709-198908

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95J00iLH5#,6#,YH5#,6#198708-198908

RH

main68172-95J00iLH5#,6#,YH5#,6#198708-198908

LH

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-95J04iLH5#,6#,YH5#,6#198709-198908

68610CHECK ASSY, FRONT DOOR

main68610-95J00×2iLH5#,6#,YH5#,6#198708-198908

68617PIN, FRONT DOOR CHECK

main68617-90A00×2iLH5#,6#,YH5#,6#198708-198908

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12010-04×2iYH51..U198710-198908

NORWAY SPEC,BLUE,TRIM8#

9015940160

main90159-40160

9017906070

main90179-06070

9095001038

main90950-01038

9165140612

main91651-40612

42 parts on this diagram · 2 diagrams in section
