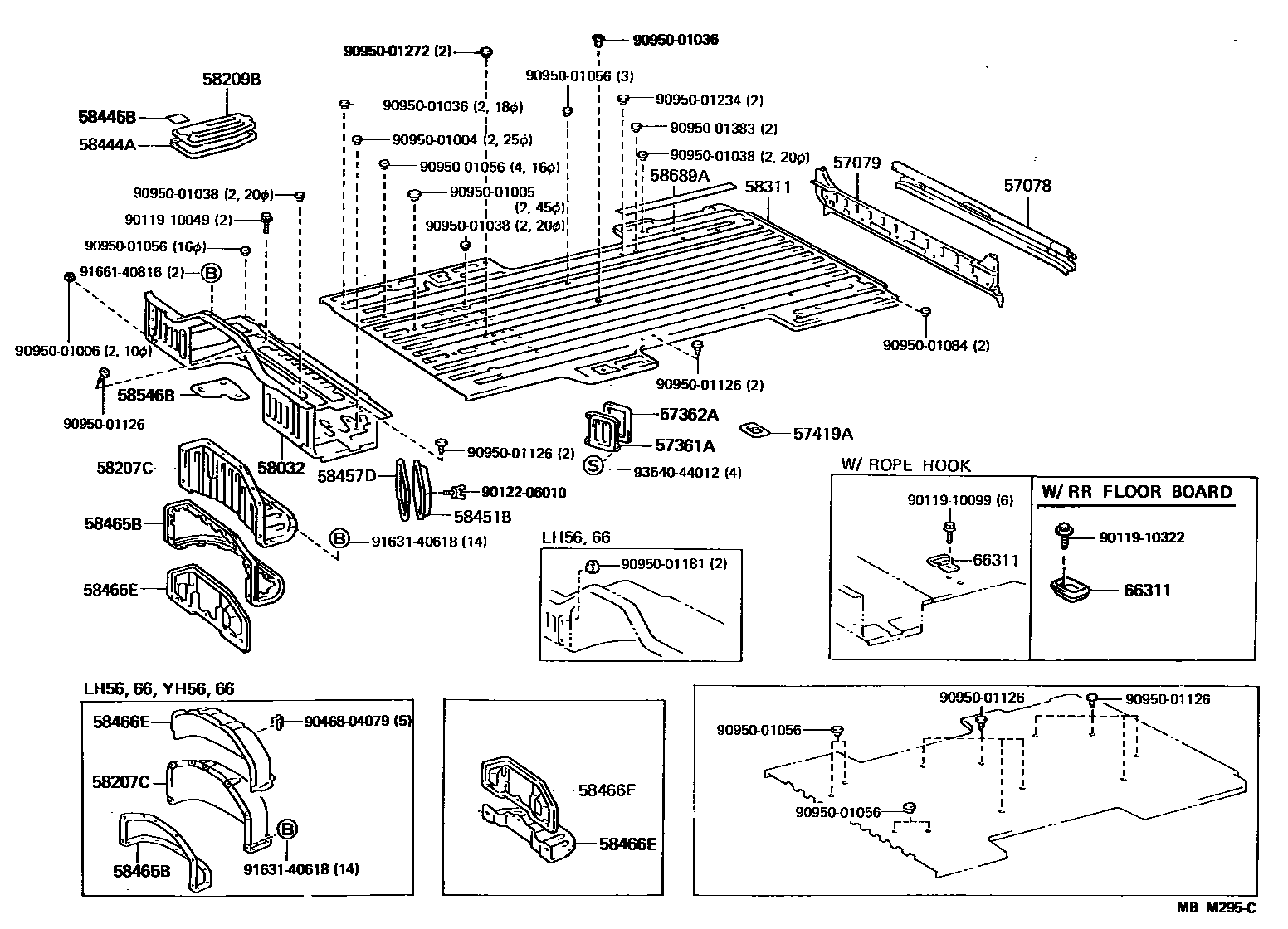

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57078MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57078-95J03iLH51,6#,YH51,6#;LH56,YH56..02S,R198708-198908

main57078-95J05iLH56,YH56..U198708-198908

CANARY ISLANDS SPEC

main57078-95J05iLH56,YH56..U198708-198908

CANARY ISLANDS SPEC OR *FRG

main57078-95J05iLH51..U;YH51..V5D..5H;LH61..LHD..V4D..03S;LH5#,YH56..LHD..VSP..MTM;YH51..LHD..V4D..MTM..(03S,U)198708-198908

*FRG

57079MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57079-95J00iLH5#,6#,YH5#,6#198708-198908

57361ACOVER, NO.2 OUTERIGGER HOLE

main57361-95J00iLH56,6#,YH5#,6#..V5D198708-198908

57362APACKING, NO.2 OUTRIGGER HOLE COVER

main57362-95J00iYH5#,6#..V5D198708-198908

57419APLATE, REAR SEAT LOCK

main57419-95J00iYH61..V4D..5H..R198708-198908

main59381-95J01iYH56,66..R198708-198908

58032PANEL SUB-ASSY, HEADER

main58032-95J42iLH56,66..02S198708-198908

***

main58032-95J44iYH56,66..R198708-198908

***

main58032-95J49iYH56,66..J,U198708-198908

***

main58032-95J50iLH56,66..VSG198708-198908

***

main58032-95J53iLH51,61..RHD198708-198908

***

main58032-95J60iYH51,61..RHD198708-198908

main58032-95J73iYH51,61..LHD..V4D..03S198708-198908

main58032-95J78iYH51,61..V4D..R198708-198908

***

main58032-95J80iYH51,61..J,U198708-198908

***

main58032-95J81iLH51,61..J,U198708-198908

***

main58032-95J84iYH61..15S198708-198808

***

main58032-95J86iYH51,61..V5D..03S198708-198908

***

main58032-95J87iLH51,61..V5D..03S198708-198908

***

main58032-95N05iYH61..V5D..R198708-198908

***

main58032-95N06iLH51,61..V5D..R198708-198908

***

main58032-95N28iLH61..V4D..R198708-198908

***

main58032-95N45iYH56,66..02S198708-198908

***

main58032-95N48iLH51,61..LHD..V4D..03S198708-198908

***

main58032-95N49iYH51..LHD..V4D..03S;YH61..LHD..V4D..5H..03S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N50iLH51,61..LHD..V4D..03S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N51iYH56,66..02S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N52iLH56,66..02S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N53iYH51,61..V5D..03S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N54iLH51,61..V5D..03S198708-198908

***,W(SEPARATOR=BOARD TYPE)

main58032-95N56iYH51..U198709-198908

***,HIGH GRADE PACKAGE

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95J05iYH51,61198708-198908

main58207-95J06iLH56,66198708-198908

main58207-95J07iLH51,61198708-198908

main58461-95J03iYH56,66198708-198908

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-95J00iLH5#,6#,YH5#,6#198708-198908

58311PAN, REAR FLOOR

main58315-95J02iLH51,YH51..RHD198708-198908

main58315-95J06iLH66,YH66..02S198708-198908

main58315-95J13iLH56,YH56..02S198708-198908

main58315-95J18iYH66..R198708-198908

main58315-95J19iYH61..V4D..5H..R198708-198908

main58315-95J20iYH61..V4D..5H..R198708-198908

W(BUILT-IN TYPE RR HEATER)

main58315-95J35iYH56..R198708-198908

main58315-95J41iLH51,YH51..LHD..V4D..(03S,R)198708-198908

main58315-95J42iLH51,YH51..J,U198708-198908

main58315-95J43iLH51,YH51..J,U198708-198908

W(BUILT-IN TYPE RR HEATER)

main58315-95J47iLH51,YH51..V5D198708-198908

main58315-95J50iLH56,YH56..U198708-198808

main58315-95J51iLH56,YH56..U198708-198808

W(BUILT-IN TYPE RR HEATER)

main58315-95J53iLH61,YH61..RHD198708-198908

main58315-95J63iLH61,YH61..J,U198708-198908

main58315-95J64iLH61,YH61..J,U198708-198908

W(BUILT-IN TYPE RR HEATER)

main58315-95J65iYH61..15S198708-198808

main58315-95J66iYH61..15S198708-198808

W(FLOOR SET TYPE RR HEATER)

main58315-95J67iYH61..V4D..4HC;LH61..LHD..V4D..(03S,R);YH61..LHD..V4D..5H..03S198708-198908

main58315-95J68iLH61,YH61..V5D198708-198908

main58315-95J77iLH66,YH66..J198708-198908

main58315-95J78iLH66,YH66..J198708-198908

W(BUILT-IN TYPE RR HEATER)

main58315-95N11iYH51..U198709-198908

HIGH GRADE PACKAGE

58444APACKING, BATTERY SERVICE HOLE COVER

main58444-95J00iLH5#,6#,YH5#,6#198708-198908

58445BPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iLH5#,6#,YH5#,6#198708-198908

58451BCOVER, AIR CLEANER SERVICE HOLE

main58451-95J00iLH5#,6#,YH5#,6#..V5D;LH51,61,YH51,61..RHD198708-198908

58457DPACKING, AIR CLEANER SERVICE HOLE COVER

main58457-95J00iLH5#,6#,YH5#,6#..V5D;LH51,61,YH51,61..RHD198708-198908

58465BPACKING, TRANSMISSION SERVICE HOLE COVER

main58465-95J02iLH51,61,YH51,61198708-198908

main58465-95J03iLH56,66,YH56,66198708-198908

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-95J00iLH51,61,YH51,61198708-198908

UPR

main58327-95J02iYH56,66198708-198908

main58327-95J03iLH56,66198708-198908

main58327-95J06iLH51,61,YH51,61198708-198908

LWR

58546BSILENCER, HEADER, NO.1

main58546-95J00iLH51,61..J,U198708-198908

58689AWEIGHT, REAR FLOOR

main58688-95J02iYH61..15S198708-198808

L=458

main58689-95J00iLH66..J198708-198908

SWEDEN SPEC,L=800

main58689-95J00iYH61..15S198708-198908

L=800

main58689-95J00iLH66..J198708-198908

L=185

main58689-95J01iYH66..R198708-198908

SWEDEN SPEC,L=400

main58689-95J01iYH66..R198708-198908

L=400

66311HOOK, ROPE

main66301-95J00iYH61..V5D..5H..R;LH5#,6#,YH5#,6#..LHD..(02S,03S)198708-198908

W(RR FROOR MAT)

main66311-95J00iLH51,61,YH5#,6#..R198708-198908

W/O(RR SEAT)

main66311-95J00iYH51..U198709-198908

9011910049

main90119-10049

9011910099

main90119-10099

9011910322

main90119-10322

9012206010

main90122-06010

9046804079

main90468-04079

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001036

main90950-01036

9095001038

main90950-01038

9095001056

main90950-01056

9095001084

main90950-01084

9095001126

main90950-01126

9095001181

main90950-01181

9095001234

main90950-01234

9095001272

main90950-01272

9095001383

main90950-01383

9163140618

main91631-40618

9166140816

main91661-40816

9354044012

main93540-44012

38 parts on this diagram · 2 diagrams in section
