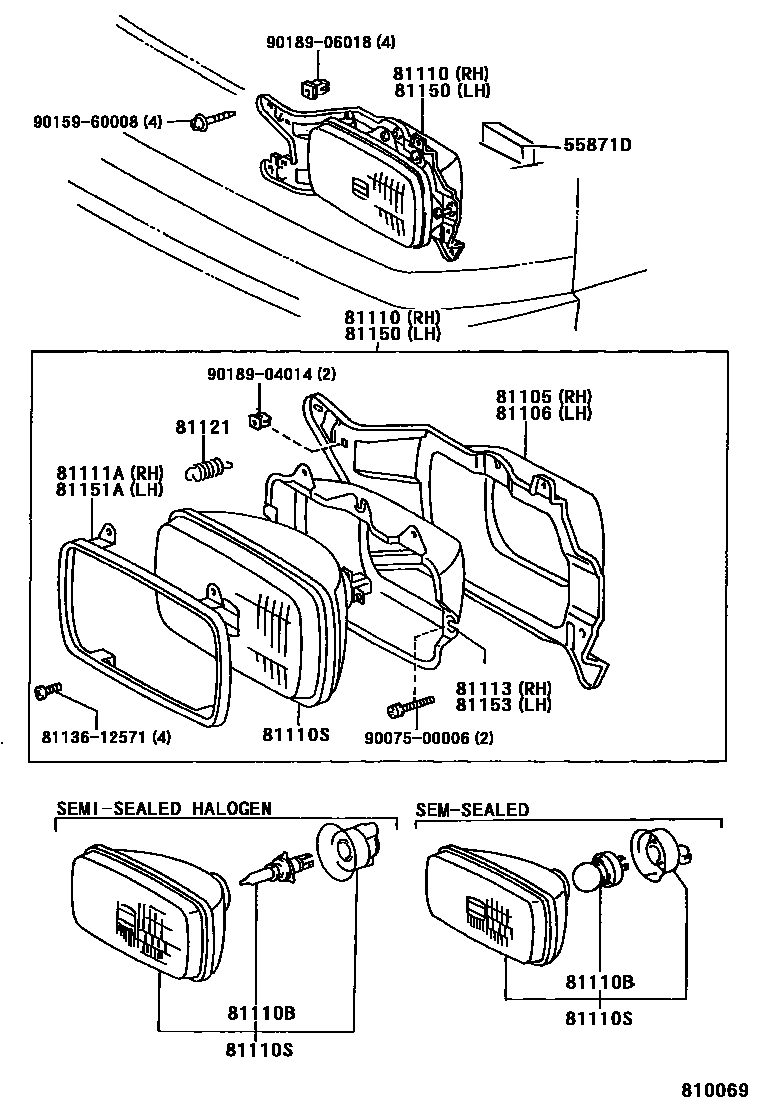

HEADLAMP

0001 1 0002 1HIGH GRADE PACKAGE 0003 1W(FOGLAMP) 0005 1SCULAPTURE HEADLAMP 0007 1 0010 1 0012 1

55871DSEAL, AIR DUCT

main55871-26010iLH102,104,105,11#,RZH10#,11#..LHD..(DX,SGL,STD)199308-199808

main55871-95J04iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95J40iLH125..ARL;LH102,103,11#,RZH102,103,104,11#,125..RHD..(DX,STD)198908-199808

main81115-26290iRZH112..4D..06S199808-200208

main81145-95J40iLH102,104,105,11#,RZH10#,11#..LHD..(DX,SGL,STD)198908-199808

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95J40iLH102,104,105,11#,RZH10#,11#..LHD..(DX,SGL,STD)198908-199808

main81106-95J41iLH112..RHD..STD;LH10#,113,114,115,125,RZH102,103,104,112,113,114,125..RHD198908-199808

main81155-26290iLH172..GCC;RZH112..5D;RZH112..03S;LH172..LHD..4D;LH172..RHD..STD;LH10#,11#,125,16#,174,176,184,RZH10#,113,114,115,125..DX,STD199808-200208

81110HEADLAMP ASSY, RH

main81110-26070iLH112..GL;LH125..GEN199308-199608

main81110-26170iLH113,125,172,184,RZH135,153..GL199608-199907

main81110-26180iRZH115..STD..GEN199808-199907

SCULAPTURE HEADLAMP

main81110-26180iLH102,174,RZH10#,112,114,115..GL199608-199907

main81110-26260iRZH115..STD..(CIS,GEN)..EFI;LH105,113,115,164,166,174,176,RZH105..CIS199808-200501

W(LEVELING)

main81110-26270iRZH113..RHD..4D..STD;LH103,11#,125,RZH102,103,104,114,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL)199808-200602

SEMI-SEALED HALOGEN,WHITE

main81110-26280iRZH112..4D..06S199808-200602

main81110-26290iLH172,RZH115..GCC..(DSL,EFI);LH172,RZH115..LHD..4D..(CBR,DSL);LH102,104,11#,174,RZH102,104,105,112,113,114..LHD..STD..(GCC,GEN)199808-200508

main81110-26300iLH172,RZH115..GCC..(DSL,EFI);LH172,RZH115..LHD..4D..(CBR,DSL);LH102,104,11#,174,RZH102,104,105,112,113,114..LHD..STD..(GCC,GEN)199808-200508

SEMI-SEALED HALOGEN,WHITE

main81110-95J37iLH10#,11#,125,RZH102,103,104,112,113,114..RHD..STD..GEN198908-199808

main81110-95J38iLH10#,11#,RZH10#,11#..RHD..GEN198908-199308

SEMI-SEALED,WHITE

main81110-95J39iRZH102,104,112..LHD..4F;LH102,104,112,114,RZH114..LHD198908-199808

main81110-95J40iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

SEMI-SEALED,WHITE

main81110-95J41iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD..STD198908-199808

SEMI-SEALED HALOGEN,WHITE

main81110-95J42iRZH102,104,112..LHD..4F;LH102,104,112,114,RZH114..LHD198908-199808

SEMI-SEALED HALOGEN,WHITE

main81110-95J43iLH102,104,11#,RZH102,103,104,11#..LHD..(SGL,STD)..GEN198908-199808

SEMI-SEALED HALOGEN,YELLOW

main81110-95J45iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE

main81110-95J49iLH103,113,125,RZH103,113,125..ARL198908-199308

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013iLH10#,11#,RZH10#,11#..GEN198908-199308

12V 45/40W,WHITE

main90981-13015iRZH113..CBR;RZH113,114,125..4D..(ARL,GEN);LH162,174..SRF..(03S,15S)..GEN;LH172,RZH115..SRF..4D..STD..(GCC,GEN)..(CBR,DSL);LH10#,11#,166,176,RZH103,104,105,112,115..SRF..(03S,06S,12S,15S)..STD..(ARL,CIS,GEN)199308-200602

12V 60/55W,*HAL *WH

main90981-13015iRZH102..RHD;RZH104,112..4F;RZH102..LHD..4F;LH10#,11#,RZH113,114..GEN198908-199308

12V 60/55W,*HAL *WH,SEMI-SEALED

main90981-13015iRZH105..LHD..STD;RZH115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH112,113,115..SRF..STD..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH102,103,104,114,125..(03S,06S,12S,14S,15S)..(DX,STD)199808-200602

12V 60/55W,*HAL *WH,SEMI-SEALED HALOGEN,WHITE

main90981-13016iLH102,104,11#,RZH102,103,104,11#..LHD..(SGL,STD)..GEN198908-199808

12V 60/55W,*HAL *YE

main90981-13055iLH112..GL199308-199907

12V 60/55W,HALOGEN

main90981-13058iRZH115..STD..GEN..EFI;LH154,172,174,184,RZH10#,114,115,135,15#..GL,SGL199907-200602

12V 60/55W,HALOGEN

main90981-22004iLH112..RHD..SRF..03S198908-199308

12V 60/55W,*HAL *WH,TYPE A:REFER TO ILLUSTRATION

81110SSEALED BEAM UNIT, NO.1

main90981-04004iRZH115..STD..GEN198908-200508

12V 65/55W,*WB

main90981-04005iLH10#,11#,RZH10#,11#..RHD..GEN198908-199308

12V 45/40W,*WSB

main90981-04006iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

12V 45/40W,*WSB

main90981-04008iRZH115..STD..CIS;RZH115..LHD..STD..CBR;LH102,104,105,11#,166,176,RZH10#,112,113,114..LHD..(DX,SGL,STD)198908-200508

12V 60/55W,*HWS

main90981-04009iLH102,104,112,114,RZH102,104,112,114..LHD..STD..GEN198908-199808

12V 60/55W,*HYS

main90981-04011iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD..STD198908-200208

12V 60/55W,*HWS

main90981-04029iLH172,RZH112,113..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH102,103,11#,RZH102,103,104,114,115..RHD..(DX,STD)..GEN198908-200208

12V 65/55W,*WB

main90981-04041iLH103,113,125,RZH103,113,125..ARL198908-199308

12V 70/55W,*HAL,*WB

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-16020iLH172..LHD..5D..GEN198908-200208

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-16220iRZH112..5D;RZH112..03S;LH172..RHD..STD;LH172,RZH115..GCC..(DSL,EFI);LH172,RZH115..LHD..4D..(CBR,DSL);LH102,103,104,11#,125,162,174,184,RZH10#,113,114,125..(DX,STD)..(ARL,GCC,GEN)198908-200208

main81113-26260iLH112..LHD;LH172..LHD..5D..GEN199907-200501

W(LEVELING)

main81113-26260iLH105,113,115..CIS199808-200008

81121SPRING, HEADLAMP TENSION

main81121-16020iLH10#,11#,125,RZH10#,11#,125198908-198911

main90075-25509iRZH112..SRF..STD;RZH115..STD..CIS;RZH113,115..STD..CBR;LH125,RZH105..ARL,CIS,GCC;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,166,176,RZH102,103,104,114,125..(03S,06S,09S,12S,14S,15S)..(DX,SGL,STD)198911-200208

81150HEADLAMP ASSY, LH

main81150-26070iLH112..GL;LH125..GEN199308-199608

main81150-26180iLH113,125,172,184,RZH135,153..GL199608-199907

main81150-26200iLH102,174,RZH10#,112,114,115..GL199608-199907

main81150-26200iRZH115..STD..GEN199808-199907

SCULAPTURE HEADLAMP

main81150-26260iLH105,113,115,166,176,RZH105,115..CIS199808-200008

main81150-26260iLH112..LHD;LH172..LHD..5D..GEN199907-200501

W(LEVELING)

main81150-26270iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)199808-200602

SEMI-SEALED HALOGEN,WHITE

main81150-26280iRZH112..RHD..03S;LH103,11#,162,172,174,RZH103,104,105,113,114..RHD..(DX,STD)..GEN199808-200602

main81150-26290iRZH115..STD..GEN199808-200508

main81150-26300iRZH115..STD..CBR;LH102,104,11#,RZH102,104,105,112,113,114..LHD..STD..(GCC,GEN)199808-200508

SEMI-SEALED HALOGEN,WHITE

main81150-95J37iLH102,103,11#,RZH102,103,104,11#..RHD..(DX,STD)..GEN198908-199808

main81150-95J38iLH10#,11#,RZH10#,11#..RHD..GEN198908-199308

SEMI-SEALED,WHITE

main81150-95J39iLH102,104,105,11#,RZH10#,11#..LHD..(SGL,STD)198908-199808

main81150-95J40iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

SEMI-SEALED,WHITE

main81150-95J41iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD..STD198908-199808

SEMI-SEALED HALOGEN,WHITE

main81150-95J42iLH102,104,105,11#,RZH10#,11#..LHD..(DX,SGL,STD)198908-199808

SEMI-SEALED HALOGEN,WHITE

main81150-95J43iLH102,104,112,114,RZH102,104,112,114..LHD..STD..GEN198908-199808

SEMI-SEALED HALOGEN,YELLOW

main81150-95J45iLH112..RHD..SRF..03S198908-199308

HIGH GRADE PACKAGE

main81150-95J49iLH103,113,125,RZH103,113,125..ARL198908-199308

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-16020iRZH103;LH10#,11#,125,RZH102,104,105,11#,125..DX,STD198908-200208

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-16220iRZH103..03S..GEN198908-200208

main81153-26260iLH105,113,115..CIS199808-200008

main81153-26260iLH112..LHD;LH172..LHD..5D..GEN199907-200501

W(LEVELING)

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9007500006

main90075-00006

9015960008

main90159-60008

9018904014

main90189-04014

9018906018

main90189-06018

17 parts on this diagram · 7 diagrams in section
