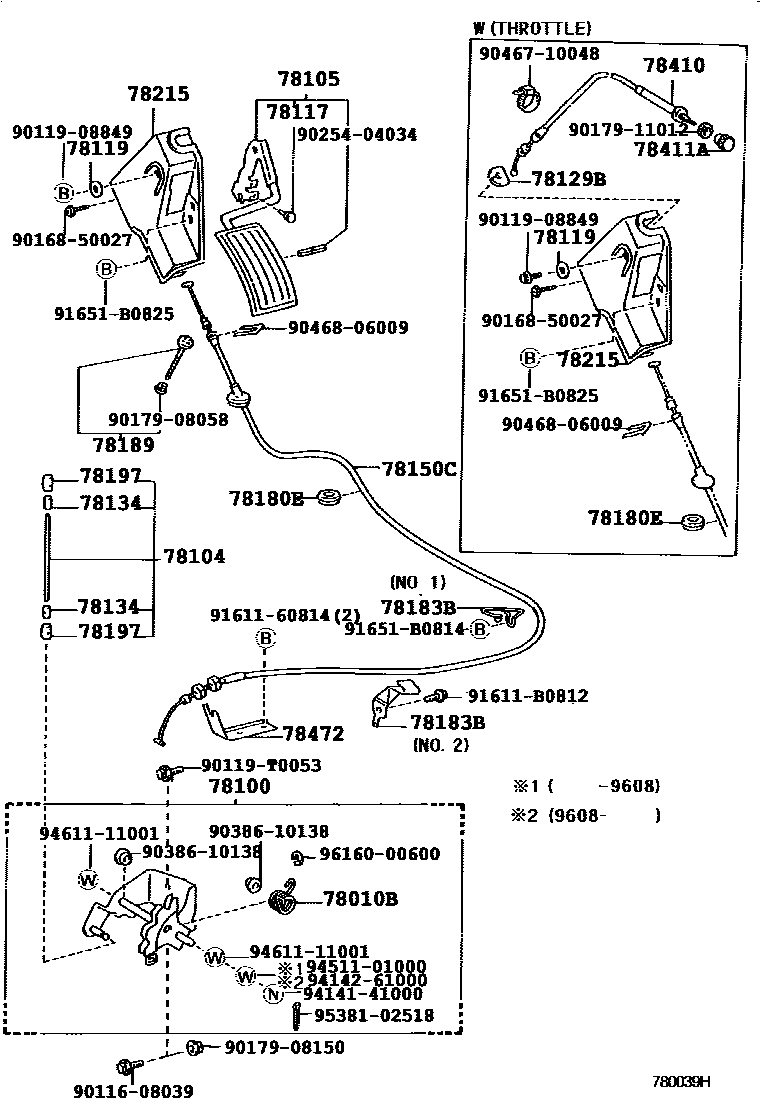

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-15010iLH10#,11#,125..5F198908-199305

main90508-16114iLH103,113..4FC198908-199305

78100LINK ASSY, ACCELERATOR

main78100-26010iLH103,113,115,125;LH102,105,112,174..LHD..(06S,10S,12S)199907-200008

main78100-26020iLH10#,11#,125..5F198908-199305

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-22140iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184198908-200008

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-26010iRZH103,113,125..4FC;RZH102,104,112,114..RHD199808-199907

main78105-26020iLH103,113,125..ARL199008-199807

main78105-26060iRZH113,125,135,153..RHD..5F199907-200501

main78105-26070iLH103,113,115..RHD..GEN; LH103..4D..GEN199907-200008

main78105-26080iLH103,113,125..ARL199807-199907

main78105-95J00iRZH10#,11#,125..RHD199008-199108

main78105-95J01iLH103,113,125..ARL198908-199008

78117CUSHION (FOR ACCELERATOR ROD)

main90541-05006iLH162..GEN;RZH103..5F..STD;RZH104..LHD..STD;LH174,RZH115,155..(GL,STD)..CIS;LH102,104,16#,176,RZH102,105..4D..(03S,10S,12S,15S)..5F..(ARL,CIS,GEN)199907-200408

main90541-06038iLH172..DEFI200108-200501

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iLH103,113,125,RZH125..ARL;LH172,184,RZH102,103,104,112,113,114,135,153..RHD199808-199907

78129BSEAL, ACCELERATOR PEDAL ARM

main78129-95J01iLH162..4FC199907-200108

78134END, ACCELERATOR CONNECTING ROD

main78134-10010×2iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184198908-200008

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-26040iRZH103,105..RHD..5F199907-200408

main78150-26060iLH174..12S;LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN199907

main78150-26071iLH172..DEFI200108-200501

main78150-95J13iRZH112..RHD..SP199907-200501

main78150-95J14iRZH125..4FC199907-200501

main78150-95J15iLH10#,11#,125..RHD198908-199807

main78150-95J16iRZH102..STD199907-200008

main78150-95J17iLH174..CIS;LH102,104,164,166,176..03S,12S,15S199907-200408

main78150-95J18iRZH103,115..09S,10S199907-200008

78180EGROMMET (FOR ACCELERATOR WIRE)

main90480-26023iLH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S)..STD..DSL199907-200501

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-26030iLH174,RZH115..12S;RZH113,115..LHD..SG..STD..GEN..EFI;LH114,172..RHD..SRF..4D..(03S,15S)..STD..GEN; RZH112,114..RHD..SG..(03S,15S)199907

NO.1

main78183-26170iLH172..DEFI200108-200501

main78183-95J03iLH174..CIS;LH162..GEN;LH102,104,16#,176..4D..(03S,12S,15S)..5F199907-200408

NO.2

main78183-95J04iLH10#,11#,125;RZH102,104,112,114..LHD; RZH10#,11#,125..RHD198908-199112

NO.2

main78183-95J05iLH113,174..LHD..(03S,10S);LH102,105,112,115..LHD..SG; RZH115..SGL;RZH102,103..LHD..(03S,06S,09S)199907-200008

NO.2; NO.3

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-26010iLH172..DEFI200108-200501

main78208-95J02iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH10#,11#,125,RZH102,103,104,114,115,125,135,153..RHD198908

main78208-95J03iRZH102..STD;LH113,174,RZH115..LHD..(03S,10S);LH102,105,112,115,RZH103..LHD..SG199907-200008

78197CLIP, ACCELERATOR JOINT BALL

main78197-10010×2iLH172..HRF;RZH113..GCC;LH172..5D..GEN;LH114,RZH112,114..LHD..STD;LH172,RZH113..LHD..4D..GEN;LH172,RZH115..(03S,15S)..GL;LH172,RZH115..5F..(ARL,GCC);LH112,154,184,RZH155..4D..(ARL,GEN);LH172,174..4D..(06S,15S)..STD..(GCC,GEN)..DSL199907-200501

78215CASE, ACCELERATOR LINK

main78215-95J01iLH184..ARL;LH172..5F..ARL199907-200501

main78215-95J02iLH103..4D..GEN;RZH103..03S..GEN; LH174..12S;LH172..RHD..SRF..4D..03S..STD..GEN;LH114,RZH112,114..RHD..SG..(03S,15S)199907

78410CABLE ASSY, THROTTLE CONTROL

main78410-95J01iLH172..4FC199907-200208

main78410-95J03iLH112,114,172,174..LHD..(03S,10S,15S)..STD..GEN199907-200501

78411AKNOB, THROTTLE CONTROL CABLE

main78411-95J01iLH115..LHD..GEN199910-200008

78472SUPPORT, THROTTLE CONTROL CABLE

main78472-26020iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184198908-200008

9011608039

main90116-08039

9011908849

main90119-08849

90119T0053

main90119-T0053

9016850027

main90168-50027

9017908058

main90179-08058

9017908150

main90179-08150

9017911012

main90179-11012

9025404034

main90254-04034

9038610138

main90386-10138

9046710048

main90467-10048

9046806009

main90468-06009

9161160814

main91611-60814

91611B0812

main91611-B0812

91651B0814

main91651-B0814

91651B0825

main91651-B0825

9414141000

main94141-41000

9414261000

main94142-61000

9451101000

main94511-01000

9461111001

main94611-11001

9538102518

main95381-02518

9616000600

main96160-00600

38 parts on this diagram · 5 diagrams in section
