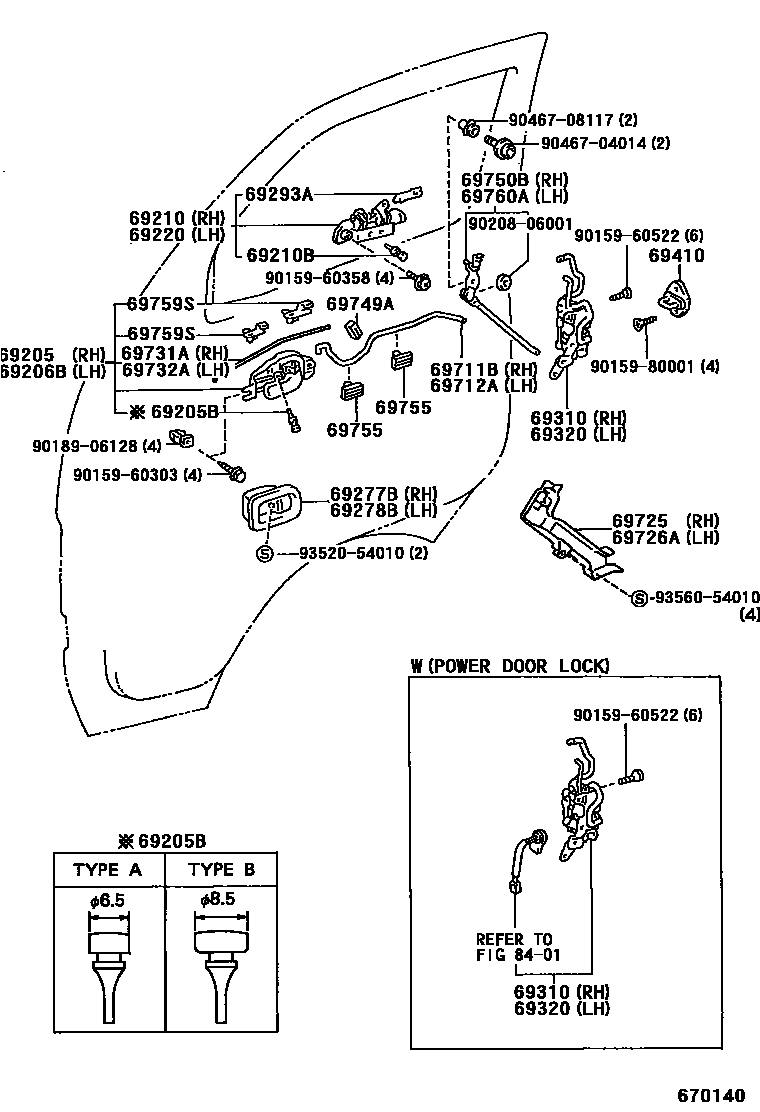

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
GRAY,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×4iRZH112..4D..4F;RZH112..5D..06S;RZH102..06S..5F;RZH102,104,114..4F;RZH112..5D..03S..4F;RZH104,114..LHD..SRF..5F;LH10#,11#,125,RZH103,113,125..4D199010-199308
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-26010-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,2BZ
IVORY,2GW
WHITE PM.,2GC
WARM GRAY PEARL ME.,2BY
LT GREEN M,2AY
main69210-95J03iLH103..4D..GEN;RZH102,103..03S..GEN; RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04014×4iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,2BZ
IVORY,2GW
WHITE PM.,2GC
WARM GRAY PEARL ME.,2BY
LT GREEN M,2AY
main69220-95J03iLH103..4D..GEN;RZH102,103..03S..GEN; RZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
NO PAINT REQ.
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
GRAY,TRIM1#
main69277-95J00-B0iRZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,125,135,153..03S,06S,09S,10S,12S,14S,15S199408-200008
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
GRAY,TRIM1#
main69278-95J00-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
main69030-26011iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH103,11#,125,RZH102,103,104,114,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL)199808
W(*EL) & W(PNC.84931B = DRIVER SIDE ONLY)
W(E/G SPEED SENSING POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(*EL & DOOR LOCK CONTROL SWITCH(DRIVER SIDE)) & W(PNC.84931B = DRIVER & PASSENGERSIDE)
W(*EL) & W(PNC.84931B = DRIVER & PASSENGER SIDE)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(MANUAL DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
main69040-26031iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200008
W(POWER DOOR LOCK)
main69040-26090iLH113,162..06S;LH172,RZH113..RHD..5D..06S; RZH113..4D..06S;LH103,RZH103..06S199907-200501
W(POWER DOOR LOCK = DRIVER & PASSENGER); W(POWER DOOR LOCK = KEY INTERLOCKING TYPE)
W(POWER DOOR LOCK = ARMREST SWITCH TYPE)
W(KEY LESS ENTRY & POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-26010×2iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S199506
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-95J01iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-95J01iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
main69726-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S199308
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
main69750-26030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S199308
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
main69760-26030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S199308
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-20030×6iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69755SILENCER, FRONT DOOR LOCK LINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
LH,RED
RH,PINK
RH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401SWITCH & RELAY & COMPUTER
9015960303
main90159-60303
9015960358
main90159-60358
9015960522
main90159-60522
9015980001
main90159-80001
9018906128
main90189-06128
9020806001
main90208-06001
9046704014
main90467-04014
9046708117
main90467-08117
9352054010
main93520-54010
9356054010
main93560-54010
34 parts on this diagram · 3 diagrams in section
