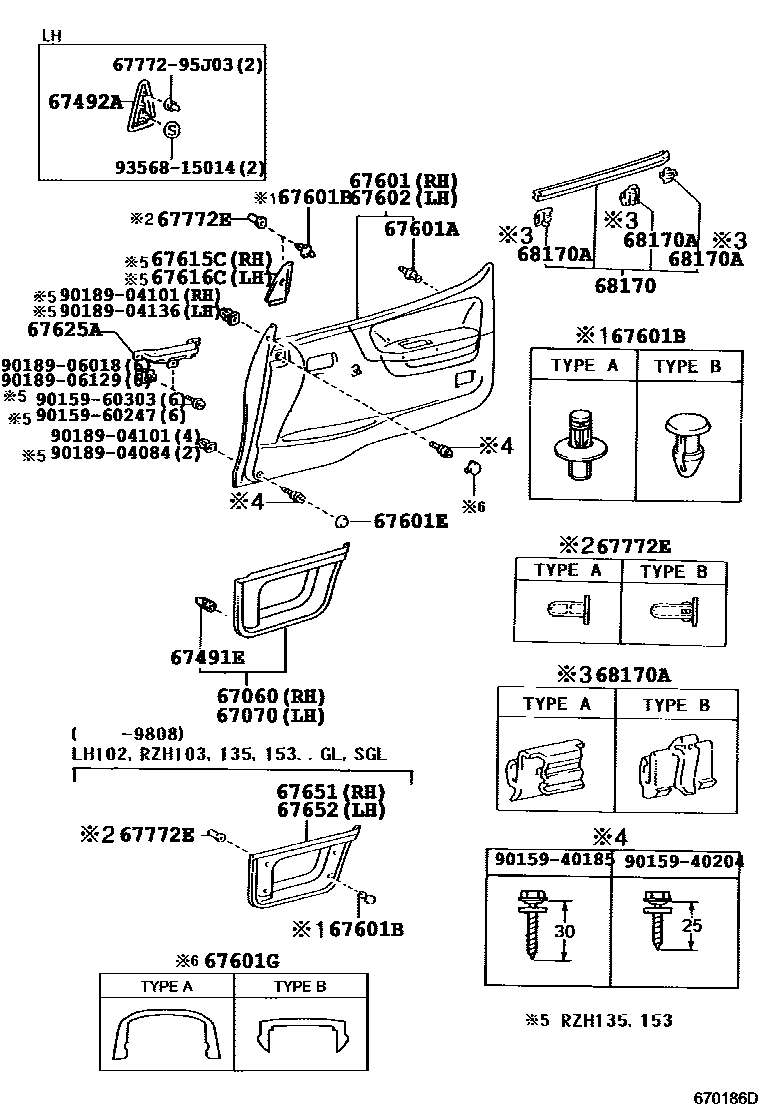

FRONT DOOR PANEL & GLASS

0001 1DOOR TRIM 0002 1DOOR PANEL 0003 1TRIM CODE 0004 1TRIM CODE 0005 1TRIM CODE 0006 1TRIM CODE 0007 1TRIM CODE

67060BOARD ASSY, FRONT DOOR TRIM, LOWER RH

main67060-26050-B0iLH174,RZH102,103,114,115,135,153..(03S,09S,10S,12S)..GL199808-199907

BLUISH GRAY,TRIM1#

main67060-26050-E0iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

main67060-95J01-03iRZH103..GL198908-199108

GRAY,TRIM1#

67070BOARD ASSY, FRONT DOOR TRIM, LOWER LH

main67070-26050-B0iLH174,RZH102,103,114,115,135,153..(03S,09S,10S,12S)..GL199808-199907

BLUISH GRAY,TRIM1#

main67070-26050-E0iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

main67070-95J01-03iRZH103..GL198908-199108

GRAY,TRIM1#

67491ERETAINER, DOOR TRIM

main67771-28020×8iLH174,RZH102,103,114,115,135,153..(03S,09S,10S,12S)..GL199808-199907

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-95J00iLH103,112..RHD..03S..GEN;LH102,113,115,RZH102,104,112,114..RHD..4D..GEN199308-199411

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-26290-B0iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199508-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-26330-B0iLH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)199508-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-26340-B1iLH104..GEN199509-199607

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

main67610-26341-B2iLH102,RZH103..09S199608-199808

BLUISH GRAY,TRIM1#

main67610-26370-B1iLH104..GEN199509-199607

PHILIPPINES SPEC & W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67610-26371-B2iLH102,RZH103..09S199608-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-26411-B0iRZH135,153199808-199907

BLUISH GRAY,TRIM1#

main67610-26440-B0iRZH135,153199611-199808

BLUISH GRAY,TRIM1#

main67610-26550-B0iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172,174..06S,15S;LH172..5D..03S..GEN;LH114,172,RZH114,115..LHD..4D..(03S,10S,15S)..(GL,STD);LH10#,112,113,115,125,16#,176,184,RZH10#,113,125..03S,06S,08S,12S,14S,15S199907-200508

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67610-26570-B0iLH174,RZH102,115..SRF..(10S,12S);LH154,RZH103,114,135,155..09S,11S,12S199907-200508

BLUISH GRAY,TRIM1#

main67610-26570-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main67610-26630-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

main67610-95J12-03iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

GRAY,TRIM1#

main67610-95J12-B0iLH172,RZH112..5D..06S;RZH115..STD..(GCC,GEN);LH172,RZH112,114..03S,15S;LH174,RZH102,105..(03S,06S,12S,15S)..(GCC,GEN);LH10#,11#,125,162,184,RZH103,104,113,125..03S,06S,10S,12S,14S,15S199907-200602

BLUISH GRAY,TRIM1#

main67610-95J14-03iRZH103..GL198908-199108

GRAY,TRIM1#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050×18iRZH135,153199808-199907

main67771-16080×18iLH10#,11#,125,RZH10#,11#,125198908-199005

main67771-26010×18iLH10#,11#,125,166,17#,184,RZH10#,11#,125199808-199907

main67772-22010×8iLH104..GEN199509-199607

PHILIPPINES SPEC

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07043-53×2iLH10#,11#,125,RZH10#,11#,125198908-199308

TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#

main90467-07043-B0×2iLH10#,11#,125,166,17#,184,RZH10#,11#,125199808-199907

TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#

main90467-07043-E3×2iLH154,RZH153..03S,10S199907-200501

TYPE A:REFER TO ILLUSTRATION,ANTELOPE,TRIM4#

main90467-07101×2iRZH135,153199808-199907

TYPE A:REFER TO ILLUSTRATION

main90467-09019-B0×8iLH102,RZH103,135,153..GL,SGL199508-199808

TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main90339-10002-23×2iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

main90339-10002-B0×2iLH125..ARL;LH10#,11#,RZH10#,11#,125199408-199411

BLUISH GRAY,TRIM1#

main90339-10002-E3×2iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90339-10002-B0×2iRZH135,153199808-199907

BLUISH GRAY,TRIM1#,TYPE A:REFER ILLUST.

main90950-01503-33×2iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#,TYPE B:REFER ILLUST.

main90950-01503-B2×2iLH103..4D..GEN;RZH102,103..03S..GEN; RZH153199907-200008

GRAY,TRIM1#,TYPE B:REFER ILLUST.

main90950-01503-C0×2iRZH153200008-200501

BLACK,TRIM4#,TYPE B:REFER ILLUST.

main90950-01503-E0×2iLH154,RZH153..03S,10S200008-200501

ANTELOPE,TRIM4#,TYPE B:REFER ILLUST.

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-26260-B0iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199508-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-26300-B0iLH102,104,11#,RZH102,104,105,11#..LHD..(03S,06S,12S,15S)199508-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-26310-B1iLH104..GEN199509-199607

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

main67620-26311-B2iLH102,RZH103..09S199608-199808

BLUISH GRAY,TRIM1#

main67620-26340-B1iLH104..GEN199509-199607

PHILIPPINES SPEC & W(POWER WINDOW & POWER DOOR LOCK),BLUISH GRAY,TRIM1#

main67620-26341-B2iLH102,RZH103..09S199608-199808

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-26390-B0iRZH135,153199808-199907

BLUISH GRAY,TRIM1#

main67620-26420-B0iRZH135,153199611-199808

BLUISH GRAY,TRIM1#

main67620-26440-B0iRZH112..4D..06S199907-200208

W(POWER WINDOW),BLUISH GRAY,TRIM1#

main67620-26550-B0iLH174,RZH102,115..SRF..(10S,12S);LH154,RZH103,114,135,155..09S,11S,12S199907-200508

BLUISH GRAY,TRIM1#

main67620-26550-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main67620-26610-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

main67620-95J34-03iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

GRAY,TRIM1#

main67620-95J34-B0iLH172..4D..06S..STD..DSL200008-200602

BLUISH GRAY,TRIM1#

main67620-95J35-03iRZH103..GL198908-199108

GRAY,TRIM1#

67615CBASE, FRONT DOOR TRIM, RH

main67615-95J00iRZH135,153199808-199907

67616CBASE, FRONT DOOR TRIM, LH

main67616-95J00iRZH135,153199808-199907

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-26030iLH172..HRF;RZH112..LHD;LH172..03S..GL;LH172..ARL,GCC;RZH112..RHD..SP;LH172..5D..03S..GEN;LH172,174..06S,10S,15S;LH114,172,RZH114..LHD..4D;LH10#,112,113,115,125,154,16#,176,184,RZH10#,113,115,125,135,15#199907-200508

RH

main67625-95J01×2iLH172..4D..06S..STD..DSL200008-200602

main67635-26020iLH114,172,RZH114..RHD..SRF..4D..(03S,15S)..STD..GEN199907-200501

LH

67651BOARD, FRONT DOOR TRIM, LOWER RH

main67628-95J02-B0iLH104..GEN199509-199607

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

67652BOARD, FRONT DOOR TRIM, LOWER LH

main67629-95J01-B0iLH102,RZH103,135,153..GL,SGL199508-199808

BLUISH GRAY,TRIM1#

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-22010×8iLH102,RZH103,135,153..GL,SGL198908-199808

TYPE A:REFER TO ILLUSTRATION

main67772-95J02×2iRZH103..03S..GEN200208

TYPE B:REFER TO ILLUSTRATION

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95J02iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907-200602

RH

main68172-95J02iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907-200602

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-95J00×4iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH10#,11#,125,166,176,RZH104,114,125,135,153..03S,06S,09S,12S,14S,15S198908

TYPE A:REFER TO ILLUSTRATION

main68211-95J02×8iLH103..4D..GEN;RZH102,103..03S..GEN199907

TYPE B:REFER TO ILLUSTRATION

6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-95J03

9015940185

main90159-40185

9015940204

main90159-40204

9015960247

main90159-60247

9015960303

main90159-60303

9018904084

main90189-04084

9018904101

main90189-04101

9018904136

main90189-04136

9018906018

main90189-06018

9018906129

main90189-06129

9356815014

main93568-15014

29 parts on this diagram · 7 diagrams in section
