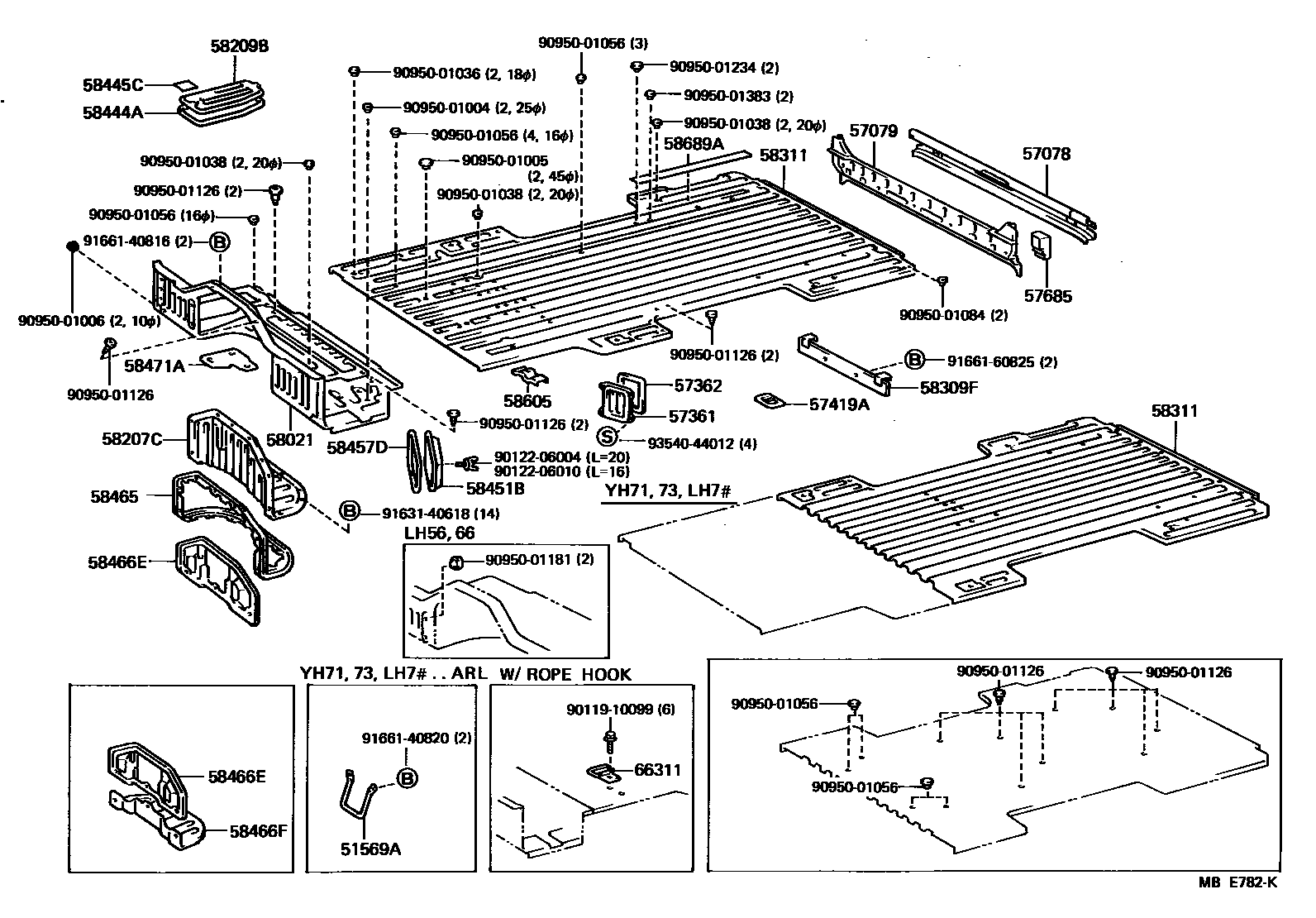

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

51569AGUARD, PROPELLER SHAFT

main51569-90C00iLH7#,YH7#198212-198708

57078MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57078-95J02iLH5#,6#,7#,YH5#,6#,71198212-198507

main57078-95J03iYH51..4HC..03S..N1;YH51..(4FC,4H,5F,5H)..(ARL,EUR);LH51,6#,71,YH50,53,61,63,66,7#..ARL,EUR198601-198708

main57078-95J04iLH51,61,YH50,51,53,60,61,63..GEN,SA198601-198807

main57078-95J05iLH56,YH56..02S; LH56,YH56..M1198608-198708

*FGR

57079MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57079-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

57361COVER, OUTRIGGER HOLE

main57361-95J00×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

57362PACKING, OUTRIGGER HOLE COVER

main57362-95J00×2iLH5#,6#,7#,YH5#,6#,7#198212-198807

57419APLATE, REAR SEAT LOCK

main57419-95J00iLH5#,6#,YH5#,6#..06S..EUR; YH50..G198212-198508

main57419-95J01iLH50,51,60,61,YH50,51,60,61..06S..GEN198212-198708

57685DUST PROOF, REAR FLOOR CROSSMEMBER

main57685-95J00×2iYH61..V4D..VSG..03S..N1198405-198410

*SA

58021PANEL SUB-ASSY, HEADER

main58021-90C01iYH71198212-198508

main58021-90C05iLH7#198212-198508

main58021-95J00iYH60..RHD..V4D..GEN198212-198508

main58021-95J02iLH60..RHD..V4D..GEN;LH61..RHD..03S..GEN198306-198508

main58021-95J03iLH60..RHD..V5D198212-198401

main58021-95J04iYH50..LHD..12S198212-198401

main58021-95J10iYH50,60..J198212-198401

main58021-95J16iLH6#..RHD..15S198212-198508

main58021-95J17iLH60..LHD..V4D..03S;LH50..LHD..V4D..03S..N1198212-198401

main58021-95J20iYH50,61..RHD..V5D198212-198508

main58021-95J21iLH51,61..V5D..03S;LH51,61..V5D..06S..GEN198401-198508

main58021-95J22iYH50..G;YH50,60..V4D..06S..EUR198212-198401

main58021-95J23iLH5#..RHD..12S198212-198508

main58021-95J24iLH60..M1198212-198401

main58021-95J25iYH50..LHD..V4D..03S;YH50..LHD..V4D..06S..GEN; YH60..LHD..V4D..03S;YH60..LHD..V4D..06S..GEN198212-198303

main58021-95J26iYH6#..RHD..15S198212-198508

main58021-95J29iYH60..LHD..15S198212-198508

main58021-95J33iYH50..RHD..12S198212-198508

main58021-95J34iLH50..LHD..12S198212-198401

main58021-95J35iYH60..V5D..03S;YH60..V5D..06S..GEN;YH50..LHD..V5D..(4H,4HC)198212-198401

main58021-95J36iYH50..RHD..V4D; YH6#..RHD..V4D..(ARL,EUR,SA)198212-198401

main58021-95J38iLH51..RHD..V4D;LH61..V4D..06S;LH61..RHD..(ARL,EUR)198401-198508

main58021-95J39iLH50..V4D..06S..N1198212-198401

main58021-95J40iYH51198306-198401

main58021-95J42iYH50,60..V5D..06S..EUR198212-198401

main58021-95J43iLH50,60..V5D..06S..N1198212-198401

main58021-95J44iLH6#..LHD..15S198212-198508

main58021-95J45iYH50,60..V4D..06S..EUR198212-198401

NORWAY SPEC

main58021-95J46iLH50..V4D..06S..N1198212-198401

NORWAY SPEC

main58021-95J47iYH50,60..V5D..06S..EUR198212-198401

NORWAY SPEC

main58021-95J48iLH50,60..V5D..06S..N1198212-198401

NORWAY SPEC

main58021-95J49iYH50,60..LHD..V4D..03S..N1198212-198401

NORWAY SPEC

main58021-95J50iLH50,60..LHD..V4D..03S..N1198212-198401

NORWAY SPEC

main58021-95J51iYH50,60..V5D..03S..N1198212-198401

NORWAY SPEC

main58021-95J52iLH51,61..V5D..03S..N1198401-198508

NORWAY SPEC

main58021-95J53iYH5#..LHD..V4D..03S; YH6#..LHD..V4D..03S198303-198508

main58021-95J54iYH50..LHD..12S198401-198508

main58021-95J59iYH5#,61..J..EUR198401-198508

main58021-95J62iYH50,61..G;YH5#,61..V4D..06S..N1198401-198508

main58021-95J63iLH51,61..J198401-198508

main58021-95J64iLH51..LHD..12S198401-198508

main58021-95J65iYH50,61..V5D..06S..EUR198401-198508

main58021-95J66iLH51,61..06S..N1198401-198508

main58021-95J67iYH5#,61..V4D..06S..N1198401-198508

NORWAY SPEC

main58021-95J68iYH50,61..V5D..06S..EUR198401-198508

NORWAY SPEC

main58021-95J69iLH51,61..06S..N1198401-198508

NORWAY SPEC

main58021-95J72iYH51..SA198401-198508

main58021-95J74iYH50,61..ARL198306-198508

TELECOM

main58021-95J75iLH5#,6#..ARL198306-198508

TELECOM

58207CCOVER SUB-ASSY, TRANSMISSION SERVICE HOLE

main58207-95J00iYH5#,6#,71198212-198608

main58207-95J02iLH5#,6#,7#198212-198508

main58207-95J04iLH51,61,71198508-198608

main58207-95J05iYH51,53,60,61,63,73198608-198807

main58207-95J06iYH56,66198608-198708

main58207-95J07iLH51,61,71198608-198708

main58461-95J03iYH56,66198608-198708

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

main58215-95700iYH51..(4FC,4H,5F)..ARL;LH50,51,60,61,YH50,53,61,63..ARL198306-198708

TELECOM

58309FBALANCER SUB-ASSY, REAR FLOOR

main58309-95J00iYH50..LHD..V4D..VSP..4H..N1198403-198408

58311PAN, REAR FLOOR

main58311-95J00iYH51..4H..ARL;LH5#,YH50..RHD..V4D198212-198508

main58311-95J01iLH5#,YH5#..V5D198212-198508

main58311-95J02iLH5#,YH5#..LHD..V4D..(03S,06S)198212-198508

main58311-95J03iLH5#,YH50..LHD..12S198212-198508

main58311-95J04iYH5#..J198212-198508

W/RR HEATER

main58311-95J05iLH51,YH5#..J198212-198508

main58311-95J06iYH53..SA198608-198807

main58311-95J07iLH5#,YH50..RHD..12S198212-198508

main58311-95J08iYH61..GEN;YH61..RHD..V4D..03S;LH6#,YH60..RHD..V4D198212-198508

main58311-95J10iLH6#..V5D;YH6#..V5D..N1;YH6#..V5D..(ARL,GEN)198212-198508

main58311-95J11iYH60..LHD..V4D..GEN;YH60..LHD..V4D..(03S,06S)..N1;LH6#,YH61..LHD..V4D..(03S,06S)198212-198508

main58311-95J12iLH6#,YH60..LHD..15S198212-198508

main58311-95J15iLH6#,YH6#..RHD..15S198212-198508

main58311-95J16iLH6#,YH60..J198212-198508

W/RR HEATER

main58311-95J18iLH50,YH50..RHD..GEN198212-198508

NEW ZEALAND SPEC

main58311-95J22iLH61,YH6#..J198212-198508

main58311-95J23iYH50..G198212-198508

W/RR HEATER

main58311-95J24iYH50..G198212-198508

main58311-95J26iLH5#,YH50..LHD..12S198212-198508

W/RR HEATER

main58311-95J27iLH6#,YH60..LHD..15S198212-198508

W/RR HEATER

main58311-95J28iLH6#,YH60..RHD..15S198212-198508

W/RR HEATER

main58311-95J29iLH5#,YH50..RHD..12S198212-198508

W/RR HEATER

main58311-95J30iYH60..V4D..06S..M1198212-198401

main58311-95J31iYH6#..V5D..M1198212-198508

main58311-95J34iYH61..06S..ARL198212-198508

main58311-95J35iYH61..G198401-198508

main58311-95J36iYH61..G198401-198508

W/RR HEATER

main58311-95J47iLH51,YH50,51..RHD..V4D..(EUR,GEN)198508-198708

main58311-95J48iLH51,YH50,51..V5D198508-198708

main58311-95J49iLH51,YH50,51,61..LHD..V4D..(03S,06S)198508-198708

main58311-95J50iLH51,YH50,51..LHD..12S198508-198708

main58311-95J51iYH5#..V4D..VSG..N1198508-198608

main58311-95J52iYH51..4H..ARL;LH51,YH53..03S..ARL198508-198708

main58311-95J53iLH51,YH51..M1198508-198708

main58311-95J54iLH51,YH50,51..RHD..12S198508-198708

main58311-95J55iYH51,53..05S198508-198708

main58311-95J56iYH50..V4D..VSG..N1198508-198608

W/RR HEATER

main58311-95J57iLH51,YH51..M1198508-198708

W/RR HEATER

main58311-95J58iLH51,YH50,51..LHD..12S198508-198708

W/RR HEATER

main58311-95J59iLH51,YH50,51..RHD..12S198508-198708

W/RR HEATER

main58311-95J63iYH61..RHD..5H..N1;YH61,63..RHD..V4D..4H;LH61,YH60..RHD..V4D..(EUR,GEN,SA)198508-198807

main58311-95J64iLH61,YH60,61..LHD..V5D198508-198708

main58311-95J65iLH61,YH60,61..LHD..V4D..(03S,06S)198508-198708

main58311-95J69iYH61..V4D..R198508-198708

main58311-95J70iLH61,YH61,63..V4D..03S..ARL198508-198708

main58311-95J71iLH61,YH61..M1198508-198708

main58311-95J72iLH61,YH60,61..LHD..15S198508-198708

main58311-95J73iLH61,YH60,61,63..RHD..15S198508-198807

main58311-95J76iYH61,63..06S..ARL198508-198708

main58311-95J84iYH61..V4D..R198508-198608

W/RR HEATER

main58311-95J85iLH61,YH61..M1198508-198708

W/RR HEATER

main58311-95J86iLH61,YH60,61..LHD..15S198508-198708

W/RR HEATER

main58311-95J87iLH61,YH60,61..RHD..15S198508-198807

W/RR HEATER

main58311-95N01iYH61..V5D..GEN198608-198708

W/ROPE HOOK

main58311-95N03iYH61,63..GEN198508-198708

main58311-95N26iLH56,YH56..02S198608-198708

main58311-95N27iYH56..R198608-198708

main58311-95N28iLH56,YH56..M1198608-198708

main58311-95N32iLH56,YH56..M1198608-198708

main58311-95N39iLH66,YH66..02S198608-198708

main58311-95N40iYH66..R198608-198708

main58311-95N41iLH66,YH66..M1198608-198708

main58311-95N48iLH66,YH66..M1198608-198708

W/RR HEATER

main58311-95N85iYH51..LHD..V5D..GEN198608-198708

W/ROPE HOOK

main58311-95N86iYH51..LHD..V4D..GEN198608-198708

W/ROPE HOOK

main58311-95N87iYH61..LHD..V4D..GEN198608-198708

W/ROPE HOOK

main58312-90C00iLH7#,YH71198212-198508

main58312-95J06iLH71,YH71198508-198608

main58312-95J09iLH71,YH73198608-198708

58444APACKING, BATTERY SERVICE HOLE COVER

main58216-95J00iYH51..(4FC,4H,5F)..ARL;LH50,51,60,61,YH50,53,61,63..ARL198306-198708

TELECOM

main58444-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

58445CPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iLH5#,6#,7#,YH5#,6#,7#198212-198807

58451BCOVER, AIR CLEANER SERVICE HOLE

main58451-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

58457DPACKING, AIR CLEANER SERVICE HOLE COVER

main58457-95J00iYH50..V5D;YH50..RHD..V4D;YH50..RHD..12S;LH5#,6#,YH51,56,60,61,66..LHD..V5D;LH50,51,60,61,7#,YH51,53,60,61,63,7#..RHD198212-198807

58465PACKING, TRANSMISSION SERVICE HOLE COVER, NO.1

main58465-95J00iLH5#,6#,7#,YH5#,6#,71198212-198608

main58465-95J02iLH51,61,71,YH51,53,60,61,63,73198608-198807

main58465-95J03iLH56,66,YH56,66198608-198708

58466ESILENCER, TRANSMISSION SERVICE HOLE COVER, NO.1

main58327-95J00iLH51,61,71,YH51,53,60,61,63,73198608-198807

main58327-95J02iYH56,66198608-198708

main58327-95J06iLH56,66198608-198708

main58466-95J00iLH5#,6#,7#,YH5#,6#,71198212-198508

main58466-95J04iYH5#,6#,71198508-198608

main58466-95J05iLH51,61,71198508-198608

58466FSILENCER, TRANSMISSION SERVICE HOLE COVER, NO.2

main58327-95J06iLH51,61,71,YH51,53,60,61,63,73198608-198807

main58466-95J01iLH5#,6#,7#198212-198608

58471ASILENCER, HEADER PANEL

main58546-95J00×2iLH51,61..M1198508-198708

58605RETAINER SUB-ASSY, REAR SEAT, NO.1

main58885-95J00×2iLH60,YH60..J198212-198401

main58885-95J02×2iLH61,YH61..J198401-198708

58689AWEIGHT, REAR FLOOR

main58688-95J00iLH5#,6#,7#,YH50,6#,71..COM198212-198508

L=650

main58688-95J01iLH51,61,71,YH50,51,60,61,63,7#..RHD..COM198508-198807

L=467.5

main58688-95J02iLH51,61,YH50,51,60..LHD..COM198508-198708

L=467.5

main58689-95J00iLH66,YH66..M1198608-198708

L=800

main58689-95J01×2iLH50,51,YH50,51..12S198212-198708

L=400

66311HOOK, ROPE

main66311-95J00×6iYH51..(4FC,4H,5F)..ARL;LH51,61,YH53,61,63..ARL198508-198708

9011910099

main90119-10099

9012206004

main90122-06004

9012206010

main90122-06010

9095001004

main90950-01004

9095001005

main90950-01005

9095001006

main90950-01006

9095001036

main90950-01036

9095001038

main90950-01038

9095001056

main90950-01056

9095001084

main90950-01084

9095001126

main90950-01126

9095001181

main90950-01181

9095001234

main90950-01234

9095001383

main90950-01383

9163140618

main91631-40618

9166140816

main91661-40816

9166140820

main91661-40820

9166160825

main91661-60825

9354044012

main93540-44012

42 parts on this diagram · 2 diagrams in section
