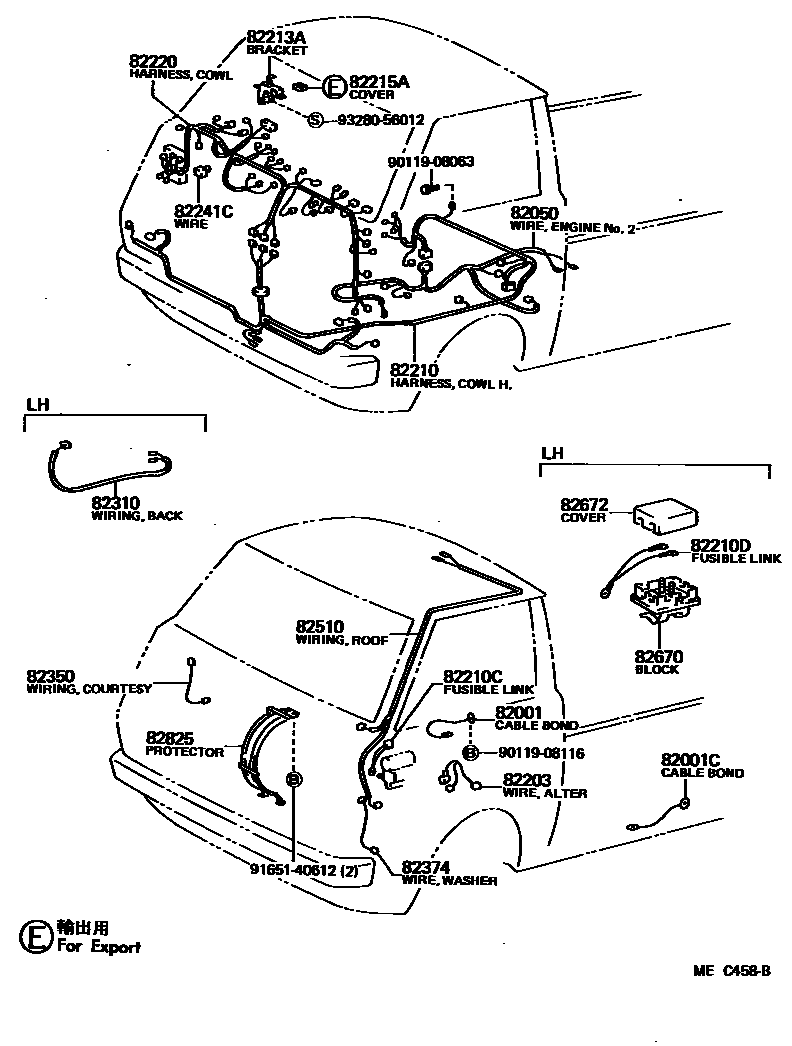

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90980-07051iRH11198211-198507

main90980-07220iLH11198211-198507

82001CCABLE, BOND, NO.2

main90980-07021iRH11198211-198507

82050WIRE ASSY, ENGINE

main82320-95A18iLH11..ARL,GEN,IDN198211-198507

main82320-95A19iRH11..ARL; RH11..EUR198211-198507

NEW SOUTH WALES & VICTORIA

main82320-95A20iRH11..ARL,GEN198211-198507

main82320-95A31iLH11..EUR198211-198507

82203WIRE SUB-ASSY, ALTERNATOR

main82405-95A00iRH11198211-198507

main82405-95A01iLH11..IDN198211-198507

main82405-95A08iLH11..ARL,EUR,GEN198211-198507

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82370-95A78iRH11..RHD..03S..GEN198211-198507

main82370-95A79iRH11..LHD..03S..GEN198211-198507

main82370-95A80iRH11..ARL..IV198211-198507

main82370-95A82iRH11..LHD..T1198211-198507

*FRG

main82370-95A83iRH11..RHD..06S..GEN198211-198507

main82370-95A84iRH11..LHD..06S..GEN198211-198507

main82370-95A85iRH11..ARL..CBU198211-198507

main82370-95A86iLH11..RHD..03S..(ARL,GEN)198211-198507

main82370-95A88iLH11..LHD..GEN198211-198507

main82380-95A00iLH11..LHD..03S..EUR198211-198410

main82380-95A01iLH11..TW..GEN198211-198507

main82380-95A02iLH11..06S..EUR198211-198410

main82380-95A03iLH11..LHD..T1198211-198507

*FRG

main82380-95A04iLH11..IDN198211-198507

main82380-95A05iRH11..RHD..EUR198211-198408

main82380-95A06iRH11..LHD..03S..EUR198211-198410

main82380-95A07iRH11..06S..EUR198211-198507

main82380-95A08iLH11..RHD..EUR198211-198408

main82380-95A09iRH11..RHD..EUR198408-198507

main82380-95A10iLH11..RHD..EUR198408-198507

main82380-95A11iRH11..LHD..03S..EUR198410-198507

main82380-95A12iLH11..LHD..03S..EUR198410-198507

main82380-95A13iLH11..06S..EUR198410-198507

82210CFUSIBLE LINK

main90982-08058iLH11,RH11..4H198211-198507

L=110,0.85R,0.5G

main90982-08115iLH11..EUR198211-198507

L=110,G,N70Z,W/12V 2.0KW STARTER

main90982-08177iLH11..EUR198211-198507

NX200-10L,W/12V 2.5KW STARTER

82210DFUSIBLE LINK

main90982-08153iLH11..ARL,GEN,IDN198211-198507

main90982-08173iLH11..EUR198211-198507

BATTERY=N70Z

main90982-08178iLH11..EUR198211-198507

BATTERY=NX200-10L

82213ABRACKET, HARNESS CONNECTOR

main82203-95A00iLH11,RH11198211-198507

main82203-95A01iLH11..LHD..EUR..IV; RH11..LHD..(T1,TW)..EUR198305-198507

SWEDEN SPEC

82215ACOVER, CONNECTOR BRACKET

main82215-95A00iLH11,RH11..LHD..T1..EUR198211-198507

*FRG

82220HARNESS ASSY, WIRING COWL

main82220-95A20iLH11..IDN198211-198507

main82220-95A79iRH11..RHD..(EUR,GEN)198211-198408

main82220-95A80iRH11..LHD198211-198507

main82220-95A81iRH11..ARL198211-198507

main82220-95A82iRH11..ARL198211-198507

NEW SOUTH WALES & VICTORIA

main82220-95A83iRH11..LHD..IV198211-198507

*FRG

main82220-95A84iLH11..RHD..GEN198211-198507

main82220-95A85iRH11..LHD..(T1,TW)..EUR198211-198507

SWEDEN SPEC

main82220-95A86iLH11..RHD..EUR198211-198408

main82220-95A87iLH11..LHD..GEN198211-198507

main82220-95A88iLH11..LHD..EUR198211-198507

main82220-95A89iLH11..LHD..T1198211-198507

W/HEAD LAMP CLEANER

main82270-95A00iLH11..ARL198211-198507

main82270-95A01iLH11..LHD..EUR..IV198211-198507

*FRG

main82270-95A02iLH11..LHD..EUR..IV198211-198507

SWEDEN SPEC

main82270-95A03iRH11..RHD..(EUR,GEN)198408-198507

main82270-95A04iLH11..RHD..EUR198408-198507

main82270-95A05iRH11..LHD..03S..EUR..CBU198410-198507

NORWAY SPEC

main82270-95A06iLH11..LHD..(T3,TW)..EUR198410-198507

NORWAY SPEC

82241CWIRE, RELAY

main82241-22060iLH11..ARL; RH11..ARL,GEN198211-198507

82310WIRING ASSY, TO BACK UP LAMP SWITCH

main82302-95A03iLH11..4H198211-198507

main82302-95A04iLH11..5H198211-198507

82350WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)

main82301-95A00iLH11..IDN198211-198507

main82301-95A09iLH11,RH11..ARL,EUR,GEN198211-198507

82374WIRE, WASHER

main88648-95A06iLH11,RH11..RHD..(ARL,GEN,IDN)198211-198507

82510WIRING ASSY, ROOF

main82510-95A00iLH11..IDN198211-198507

main82510-95A23iLH11,RH11..(T1,T3)..(ARL,EUR,GEN)198211-198507

main82510-95A24iLH11,RH11..TW198211-198507

82670BLOCK ASSY, JUNCTION, NO.1

main82671-30030iLH11..EUR198211-198507

82672COVER, JUNKTION BLOCK

main82672-26010iLH11..EUR198211-198507

82825PROTECTOR, WIRING HARNESS

main82707-95A00iLH11..IDN198211-198507

main82707-95A04iLH11,RH11..RHD198211-198507

main82707-95A05iLH11,RH11..LHD198211-198507

9011908063

main90119-08063

9011908116

main90119-08116

9165140612

main91651-40612

9328056012

main93280-56012

22 parts on this diagram · 4 diagrams in section
