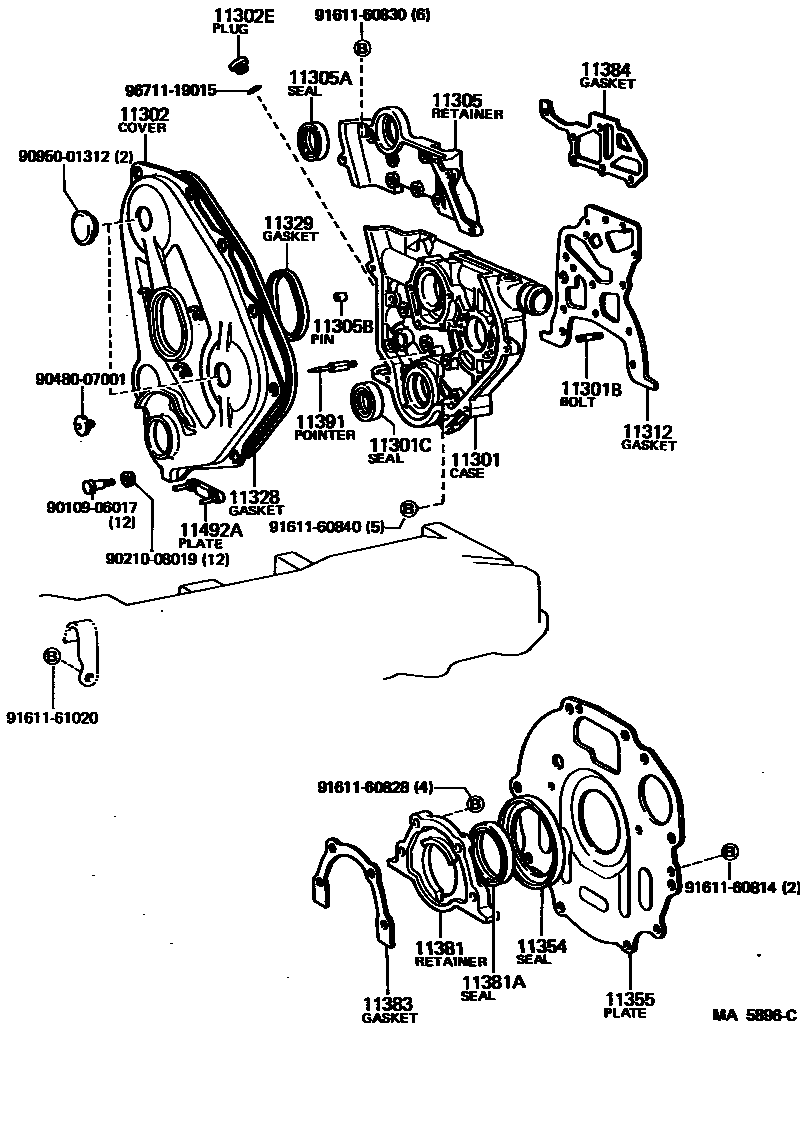

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-54022iL..LH11198211-198507

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2iL..LH11198211-198507

L=28,S=16&16

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003iL..LH11198211-198406

main90311-42012iL..LH11198406-198507

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-31040i12R..RH11198211-198507

main11321-54014iL..LH11198211-198507

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004iL..LH11198211-198507

11305RETAINER, OIL SEAL, NO.2

main11382-54010iL..LH11198211-198507

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-42003iL..LH11198211-198507

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main90253-11001×2iL..LH11198211-198507

11312GASKET, FRONT END PLATE

main11312-31010i12R..RH11198211-198507

main11312-54013iL..LH11198211-198507

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31010i12R..RH11198211-198507

main11328-54010iL..LH11198211-198507

11329GASKET, TIMING GEAR REAR COVER

main11329-54011iL..LH11198211-198507

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL..LH11198211-198507

11355PLATE, REAR END

main11355-54030iL..LH11198211-198507

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54010iL..LH11198211-198507

11381ASEAL, ENGINE REAR OIL

main90311-85001iL..LH11198211-198402

HTC 85 105 13

main90311-85003iL..LH11198402-198507

HTC 85 105 10

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-54010iL..LH11198211-198507

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL..LH11198211-198507

11391POINTER, TIMING

main11391-31021i12R..RH11198211-198507

main11391-54010iL..LH11198211-198507

11492APLATE, WATER SEAL

main11492-54010iL..LH11198211-198507

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

9161161020

main91611-61020

9671119015

main96711-19015

29 parts on this diagram · 2 diagrams in section
