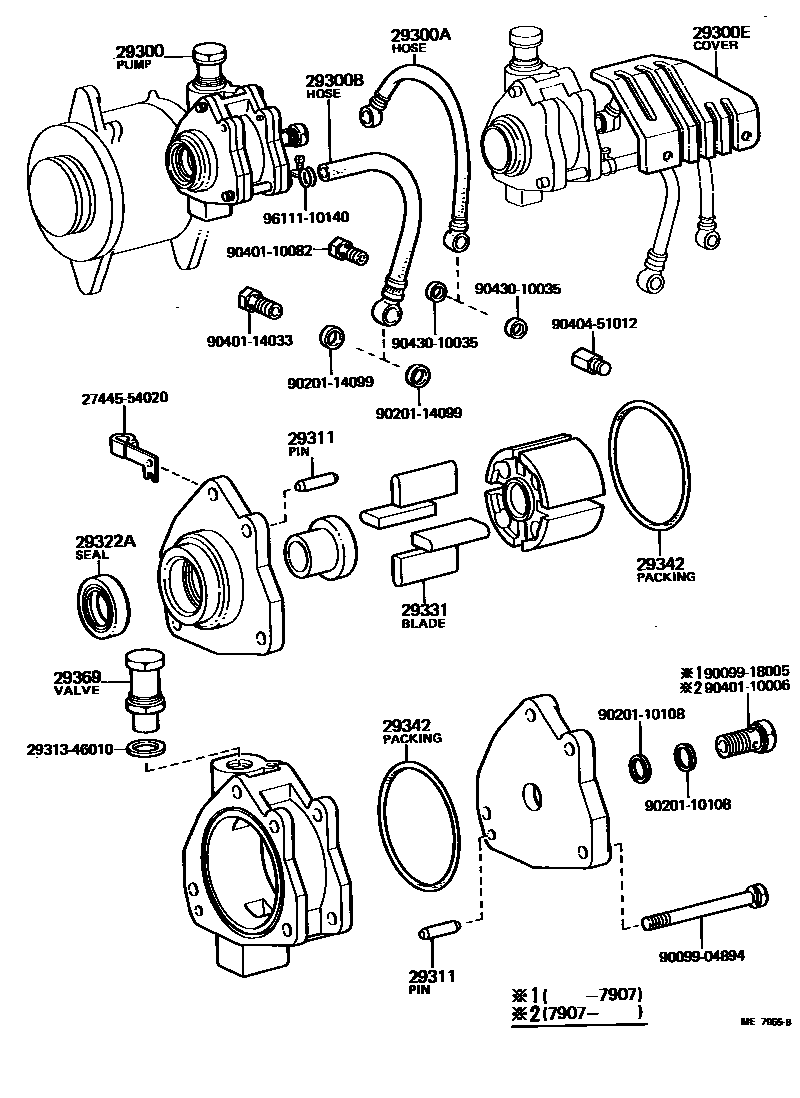

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-54020iL..LH11,20197901-197907

main29300-54021iL..LH11,20,30197907-198211

29300AHOSE, VACUUM PUMP OIL INLET

main90923-02056iL..LH11,20,30197901-198211

29300BHOSE, VACUUM PUMP OIL OUTLET

main90923-02052iL..LH11,20,30197901-198211

29300ECOVER, OIL HOSE

main27029-54010iL..LH11,20,30197901-198211

29311PIN, VACUUM PUMP DOWEL, NO.1

main90099-08082×4iL..LH11,20,30197901-198211

29322ASEAL, VACUUM PUMP OIL

main90099-15017iL..LH11,20,30197901-198211

29331BLADE, VACUUM PUMP, A

main29331-56010×4iL..LH11,20,30197901-198211

29342PACKING, VACUUM PUMP

main96740-02063×2iL..LH11,20,30197901-198211

29369VALVE SUB-ASSY, CHECK

main29369-54010iL..LH11,20,30197901-198211

2744554020

main27445-54020

2931346010

main29313-46010

9009904894

main90099-04894

9009918005

main90099-18005

9020110108

main90201-10108

9020114099

main90201-14099

9040110006

main90401-10006

9040110082

main90401-10082

9040114033

main90401-14033

9040451012

main90404-51012

9043010035

main90430-10035

9611110140

main96111-10140

21 parts on this diagram · 1 diagram in section
