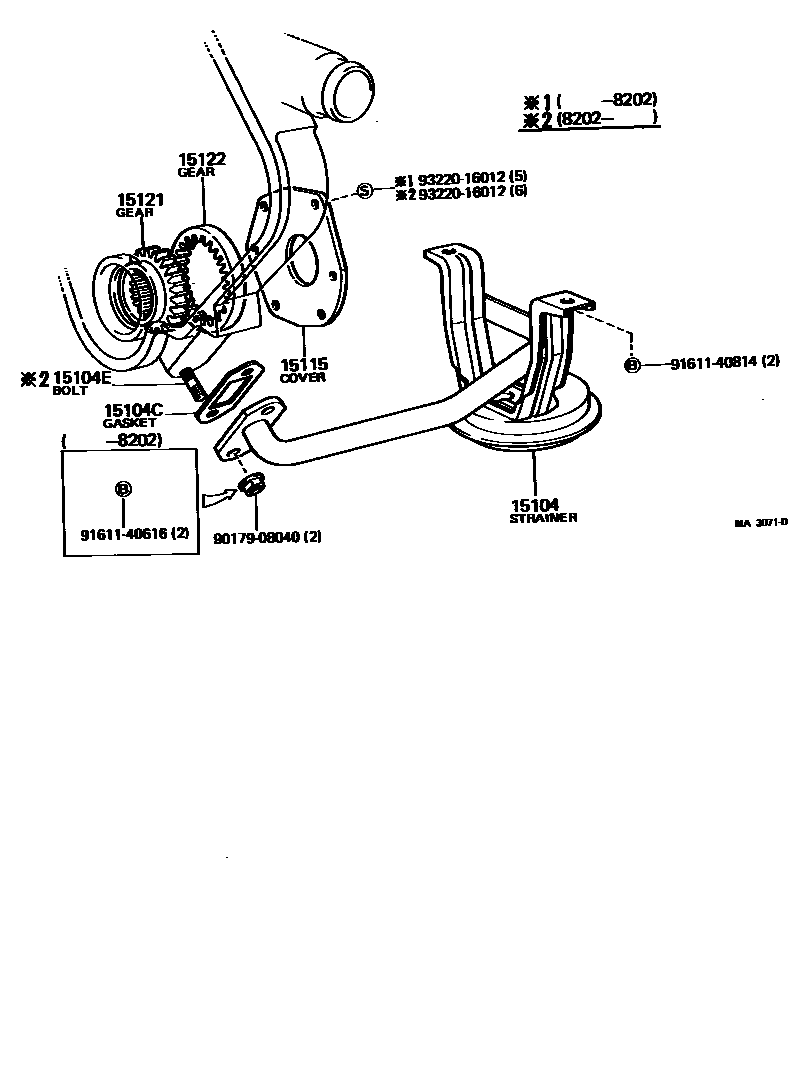

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-31030i12R#..RH11,20,30197702-197808

main15104-33010i18R..RH22,25,32,42197702-198211

main15104-54010iL..LH11,20197901-197909

main15104-54030iL..LH11,20,30197909-198106

main15104-54031iL..LH11,20,30198106-198202

main15104-54032iL..LH11,20,30198202-198211

15104CGASKET(FOR OIL STRAINER)

main15149-54010iL..LH11,20,30197901-198202

main15149-54011iL..LH11,20,30198202-198211

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816×2iL..LH11,20,30198202-198211

15115COVER, OIL PUMP

main15012-31031i12R#..RH11,20,30197705-197808

main15012-31040i12R#..RH11,20,30197808-198211

main15115-31030i12R..RH11,20,30197702-197705

main15115-54010iL..LH11,20,30197901-198202

main15115-54011iL..LH11,20,30198202-198211

15121GEAR, OIL PUMP DRIVE

main15121-38020iL..LH11,20,30197901-198202

main15121-54010iL..LH11,20,30198202-198211

15122GEAR, OIL PUMP DRIVEN

main15122-38020iL..LH11,20,30197901-198202

main15122-54010iL..LH11,20,30198202-198211

9017908040

main90179-08040

9161140616

main91611-40616

9161140814

main91611-40814

9322016012

main93220-16012

10 parts on this diagram · 3 diagrams in section
