CAUTION PLATE

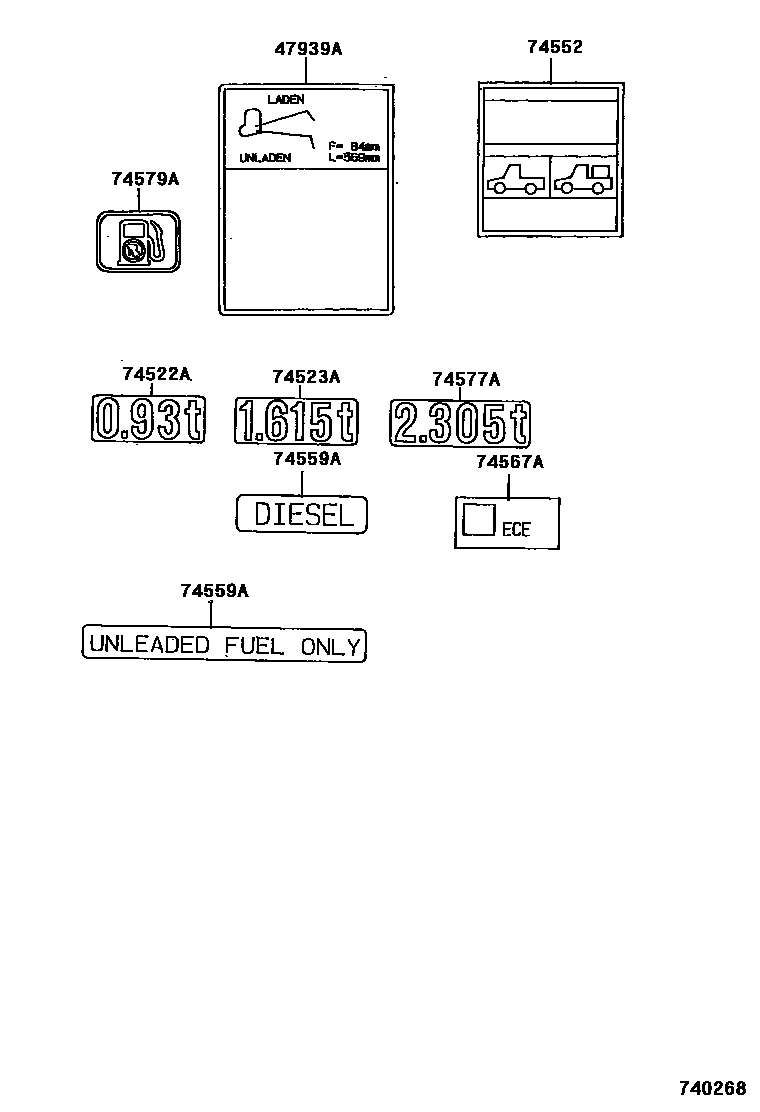

Parts diagram

47939APLATE, LOAD SENSING VALVE MARKING

main47939-35120i198901-199408

main47939-35170i199001-199308

*FRG

main47939-35170i199308-199408

*FRG OR ITALY SPEC

main47939-35170i199103-199110

main47939-35260i199403-199408

HUNGARY SPEC

main47939-35280i199410-199702

main47939-35290i199410-199702

*FRG OR ITALY SPEC

main47939-35320i199410-199702

HUNGARY SPEC

74522ALABEL, FRONT AXLE CAPACITY

main74522-89101i198901-199010

*FRG OR GREECE SPEC & VW BRANDE

main74522-89101i198901-199010

*FRG

main74522-89101i199010-199410

GREECE SPEC & VW BRAND;GREECE SPEC & VW BRANDE

main74522-89103i199103-199106

main74522-89103i199010-199410

*FRG

74523ALABEL, FRONT AXLE CAPACITY

main74523-89101i198901-199010

*FRG OR GREECE SPEC & VW BRANDE

main74523-89101i198901-199010

*FRG

main74523-89101i199010-199410

GREECE SPEC & VW BRAND;GREECE SPEC & VW BRANDE

main74523-89104i199103-199106

main74523-89104i199010-199410

*FRG

74552PLATE, SAFETY CAUTION

main42661-35041i198901-199001

main42661-35042i199010-199702

main42661-35220i199103-199110

main42661-35220i199010-199110

*FRG

main42661-35220i199110-199702

W(195R14C TIRE)

74559APLATE, FUEL CAUTION

main74559-04010i198901-199702

main74579-04010i199303-199410

*FRG

main74579-95701i199303-199410

74567APLATE, E.C.E APPROVED NUMBER

main74567-27110i199110-199311

main74567-35150i198901-199110

main74567-35170i199311-199702

74577APLATE, GROSS VEHICLE WEIGHT

main74577-89101i199010-199410

GREECE SPEC & VW BRAND;GREECE SPEC & VW BRANDE

main74577-89101i198901-199010

*FRG OR GREECE SPEC & VW BRANDE

main74577-89102i199103-199106

main74577-89102i198901-199410

*FRG

main74577-89105i199010-199410

*FRG

74579ALABEL, UNLEADED FUEL INFORMATION

main74579-04010i199003-199303

*FRG

main74579-95701i199003-199303

8 parts on this diagram · 1 diagram in section
