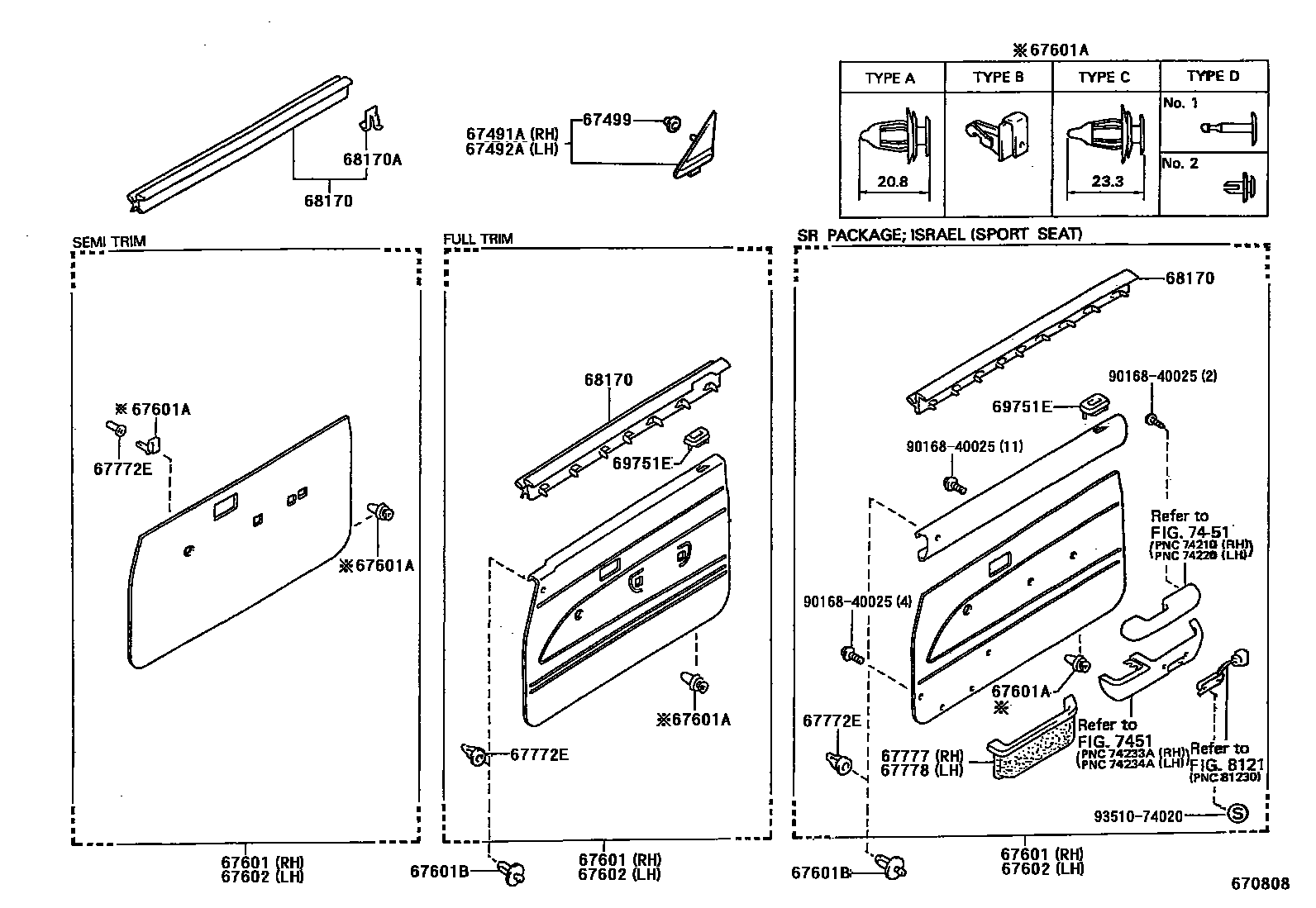

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-04010iLN85,YN85..VWP199103-199702

main67491-89101iLN85,YN85..VWP198901-199103

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-04010iLN85,YN85..VWP199103-199702

main67492-89101iLN85,YN85..VWP198901-199103

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-89101×2iLN85,YN85..VWP198901-199702

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-35010-B0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

DLX PACKAGE,MEDIUM GRAY,TRIM1#; MEDIUM GRAY,TRIM1#

main67610-35010-E0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#

main67610-35010-J0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

DLX PACKAGE,MEDIUM BLUE,TRIM8#; MEDIUM BLUE,TRIM8#

main67610-35060-B0iLN85,YN85..VWP..LHD199110-199702

GRAY,TRIM1#

main67610-35060-J0iLN85,YN85..VWP..LHD199110-199410

BLUE,TRIM8#

main67610-35090-B0iLN85,YN85..VWP..LHD; LN85,YN85..VWP..RHD199110-199702

DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#

main67610-35090-J0iLN85,YN85..VWP..LHD; LN85,YN85..VWP..RHD199110-199410

BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#

main67610-89249-B0iLN85,YN85..VWP..LHD198901-199110

MEDIUM GRAY,TRIM1#

main67610-89249-E0iLN85,YN85..VWP..LHD198901-199110

BROWN,TRIM4#

main67610-89249-J0iLN85,YN85..VWP..LHD198901-199110

MEDIUM BLUE,TRIM8#

main67610-89250-B0iYN85..VWP..RHD198907-199010

MEDIUM GRAY,TRIM1#

main67610-89250-E0iYN85..VWP..RHD198907-199010

BROWN,TRIM4#

main67610-89250-J0iLN85,YN85..VWP..LHD198901-199010

DLX PACKAGE,MEDIUM BLUE,TRIM8#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-16080×18iYN85..VWP..RHD198907-198908

TYPE A

main67771-30090×6iLN85,YN85..VWP..LHD198908-198909

TYPE C

main67771-89101×4iLN85,YN85..VWP..LHD198901-198909

TYPE B

main67771-89109×32iLN85,YN85..VWP..LHD; LN85,YN85..VWP..RHD199008-199702

DLX PACKAGE; TYPE C

main67771-89111×26iLN85,YN85..VWP..LHD; YN85..VWP..RHD198909-199008

DLX PACKAGE,TYPE A; TYPE A

main67771-89113×4iLN85,YN85..VWP..LHD198909-199702

TYPE B

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07085-B0×2iLN85,YN85..VWP198901-199702

MEDIUM GRAY,TRIM1#

main90467-07085-E0×2iLN85,YN85..VWP198901-199110

BROWN,TRIM4#

main90467-07085-J0×2iLN85,YN85..VWP198901-199410

MEDIUM BLUE,TRIM8#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-35010-B0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

DLX PACKAGE,MEDIUM GRAY,TRIM1#; MEDIUM GRAY,TRIM1#

main67620-35010-E0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#

main67620-35010-J0iLN85,YN85..VWP..LHD; YN85..VWP..RHD199010-199110

DLX PACKAGE,MEDIUM BLUE,TRIM8#; MEDIUM BLUE,TRIM8#

main67620-35060-B0iLN85,YN85..VWP..LHD199110-199702

GRAY,TRIM1#

main67620-35060-J0iLN85,YN85..VWP..LHD199110-199410

BLUE,TRIM8#

main67620-35090-B0iLN85,YN85..VWP..LHD; LN85,YN85..VWP..RHD199110-199702

DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#

main67620-35090-J0iLN85,YN85..VWP..LHD; LN85,YN85..VWP..RHD199110-199410

BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#

main67620-89215-B0iLN85,YN85..VWP..LHD198901-199110

MEDIUM GRAY,TRIM1#

main67620-89215-E0iLN85,YN85..VWP..LHD198901-199110

BROWN,TRIM4#

main67620-89215-J0iLN85,YN85..VWP..LHD198901-199110

MEDIUM BLUE,TRIM8#

main67620-89216-B0iYN85..VWP..RHD198907-199010

MEDIUM GRAY,TRIM1#

main67620-89216-E0iLN85,YN85..VWP..LHD198901-199010

DLX PACKAGE,BROWN,TRIM4#

main67620-89216-J0iLN85,YN85..VWP..LHD198901-199010

DLX PACKAGE,MEDIUM BLUE,TRIM8#

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-20021×4iLN85,YN85..VWP..LHD198901-199702

67777POCKET, FRONT DOOR TRIM, RH

main67777-89104-B0iLN85,YN85..VWP199010-199702

MEDIUM GRAY,TRIM1#

main67777-89104-E0iLN85,YN85..VWP199010-199110

BROWN,TRIM4#

main67777-89104-J0iLN85,YN85..VWP199010-199410

MEDIUM BLUE,TRIM8#

67778POCKET, FRONT DOOR TRIM, LH

main67778-89101-B0iLN85,YN85..VWP199010-199702

MEDIUM GRAY,TRIM1#

main67778-89101-E0iLN85,YN85..VWP199010-199110

BROWN,TRIM4#

main67778-89101-J0iLN85,YN85..VWP199010-199410

MEDIUM BLUE,TRIM8#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-89117iLN85,YN85..VWP..LHD198901-199702

RH

main68171-89130iLN85,YN85..VWP..RHD198907-199702

RH

main68172-89113iLN85,YN85..VWP..LHD198901-199702

DLX PACKAGE,LH

main68220-89104iLN85,YN85..VWP..LHD198901-199702

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-10030×8iLN85,YN85..VWP..LHD198901-199702

69751EHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69751-12030-B0×2iLN85,YN85..VWP198910-199702

MEDIUM GRAY,TRIM1#

main69751-12030-E0×2iLN85,YN85..VWP198910-199110

BROWN,TRIM4#

main69751-12030-J0×2iLN85,YN85..VWP198910-199410

MEDIUM BLUE,TRIM8#

main69751-20060-B0×2iLN85,YN85..VWP198901-198910

MEDIUM GRAY,TRIM1#

main69751-20060-E0×2iLN85,YN85..VWP198901-198910

BROWN,TRIM4#

main69751-20060-J0×2iLN85,YN85..VWP198901-198910

MEDIUM BLUE,TRIM8#

9016840025

main90168-40025

9351074020

main93510-74020

15 parts on this diagram · 2 diagrams in section
