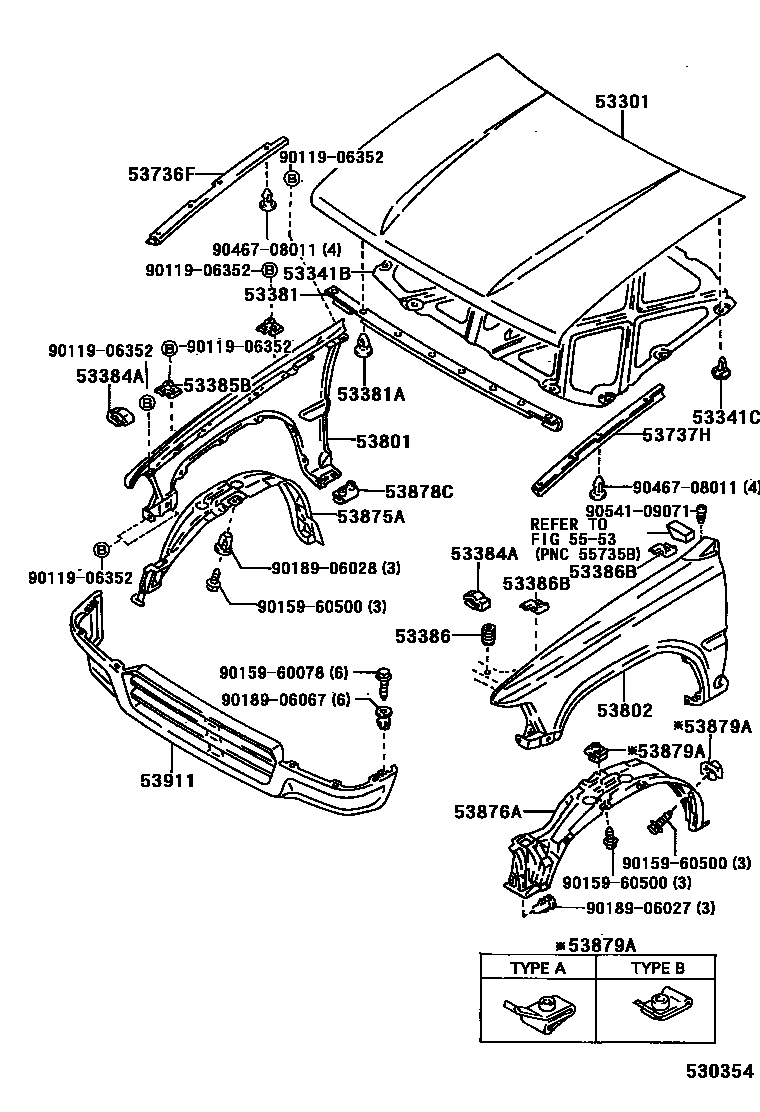

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
BLACK,TRIM1#,4#,8#
BLACK,TRIM1#,8#
BLACK,TRIM1#
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BUMPER, HOOD, REAR
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53736FSEAL, FRONT FENDER APRON, RH
53737HSEAL, FRONT FENDER APRON, LH
53801FENDER SUB-ASSY, FRONT RH
W(RADIO)
W(RADIO)
53802FENDER SUB-ASSY, FRONT LH
W(RADIO)
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
TYPE A
TYPE B
53911PANEL, FRONT VALANCE
5553COWL PANEL & WINDSHIELD GLASS
9011906352
main90119-06352
9015960078
main90159-60078
9015960500
main90159-60500
9018906027
main90189-06027
9018906028
main90189-06028
9018906067
main90189-06067
9046708011
main90467-08011
9054109071
main90541-09071
27 parts on this diagram · 1 diagram in section
