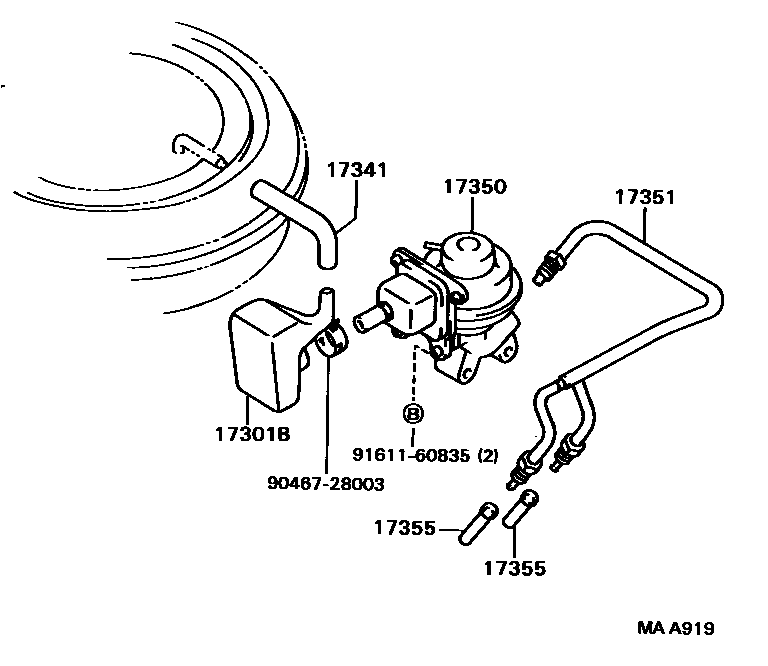

MANIFOLD AIR INJECTION SYSTEM

0001 1 0002 1

17301BSILENCER SUB-ASSY, AIR SUCTION

main17301-72010i2Y..YN85..VWP198901-199003

main17301-72020i2Y..YN85..VWP199003-199410

17341HOSE, NO.1(FOR AIR INJECTION SYSTEM)

main17341-72050i2Y..YN85..VWP198901-199003

main90445-23007i2Y..YN85..VWP199003-199410

17350VALVE ASSY, REED

main17350-72030i2Y..YN85..VWP198901-199003

main17350-72050i2Y..YN85..VWP199003-199410

17351MANIFOLD, AIR INJECTION

main17306-73020i2Y..YN85..VWP199003-199410

main17351-71020i2Y..YN85..VWP198901-199003

17355NOZZLE, AIR INJECTION

main17355-71010×2i2Y..YN85..VWP198901-199003

9046728003

main90467-28003

9161160835

main91611-60835

7 parts on this diagram · 2 diagrams in section
