8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374CVALVE, SERVICE, NO.2

main88374-30010×2i202408

88375BCAP, SERVICE VALVE, NO.1

main88375-30290i202408

88375DCAP, SERVICE VALVE, NO.2

main88375-30280i202408

88460CONDENSER ASSY, COOLER

main88460-0K350i202408

main88460-0K800i202408

EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main88460-0K820i202411

FRONT AIR CONDITIONER-COOLER LESS

88474DRYER, COOLER

main88474-0K030i202411

FRONT AIR CONDITIONER-COOLER LESS

main88474-12010i202408

EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main88474-12020i202408

88645HSWITCH, PRESSURE NO.1

main88645-0K030i202408

main88645-0K040i202411

FRONT AIR CONDITIONER-COOLER LESS

88703CRING, O(FOR DISCHARGE HOSE)

main90068-14022×2i202411

ID=10.8,OD=15.6; ID=10.8,OD=15.6,FRONT AIR CONDITIONER-COOLER LESS

main90068-14044×2i202408

ID=10.2,OD=15.0; ID=10.2,OD=15.0,EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main90099-14120×2i202408

ID=10.8,OD=15.6

88704HOSE SUB-ASSY, SUCTION

main88704-0KD90i202411

main88704-0KF50i202408

main88704-0KF60i202411

FRONT AIR CONDITIONER-COOLER LESS

main88704-0KG60i202411

88704BRING, O(FOR SUCTION HOSE)

main90068-14024×2i202411

ID=13.4,OD=18.2; ID=13.4,OD=18.2,FRONT AIR CONDITIONER-COOLER LESS

main90099-14121×2i202408

ID=13.4,OD=18.2

88706GRING, O(FOR LIQUID TUBE)

main90068-14023i202411

ID=6.7,OD=10.3; ID=6.7,OD=10.3,FRONT AIR CONDITIONER-COOLER LESS

main90068-14042i202408

ID=6.7,OD=10.3; ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main90099-14119i202408

ID=6.7,OD=10.3

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-0KE70i202408

main88710-0KQ80i202411

FRONT AIR CONDITIONER-COOLER LESS

main88710-0KX10i202411

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14023×2i202411

ID=6.7,OD=10.3; ID=6.7,OD=10.3,FRONT AIR CONDITIONER-COOLER LESS

main90099-14119×2i202408

ID=6.7,OD=10.3

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14023×2i202411

ID=6.7,OD=10.3; ID=6.7,OD=10.3,FRONT AIR CONDITIONER-COOLER LESS

main90099-14121i202408

ID=13.4,OD=18.2

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-0KA20i202408

EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main88711-0KA30i202411

FRONT AIR CONDITIONER-COOLER LESS

main88711-0KB30i202411

main88711-0KB50i202408

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-0KL40i202408

EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main88716-0KL50i202411

FRONT AIR CONDITIONER-COOLER LESS

main88716-0KQ80i202408

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-0KN60i202408

EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

main88710-0KN80i202411

FRONT AIR CONDITIONER-COOLER LESS

88716URING, O(FOR COOLER REFRIGERANT LIQUID PIPE)

main90068-14042i202408

ID=6.7,OD=10.3; ID=6.7,OD=10.3,EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)

88718LCLAMP, PIPING

main88718-0KF20i202408

90105T0052

main90105-T0052

90105T0241

main90105-T0241

90119T0134

main90119-T0134

90178T0018

main90178-T0018

9167380616

main91673-80616

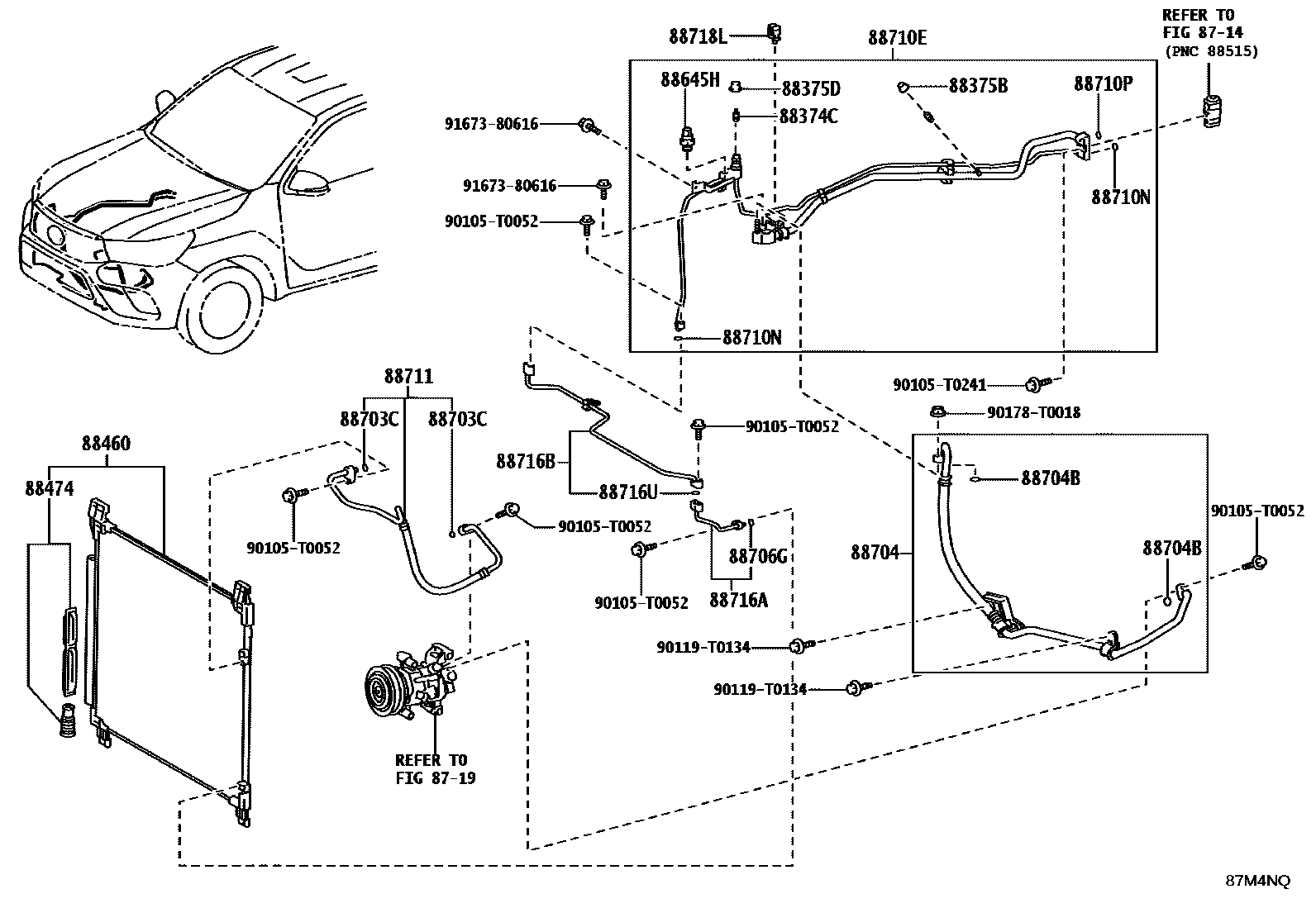

HEATING & AIR CONDITIONING - COOLER PIPING
