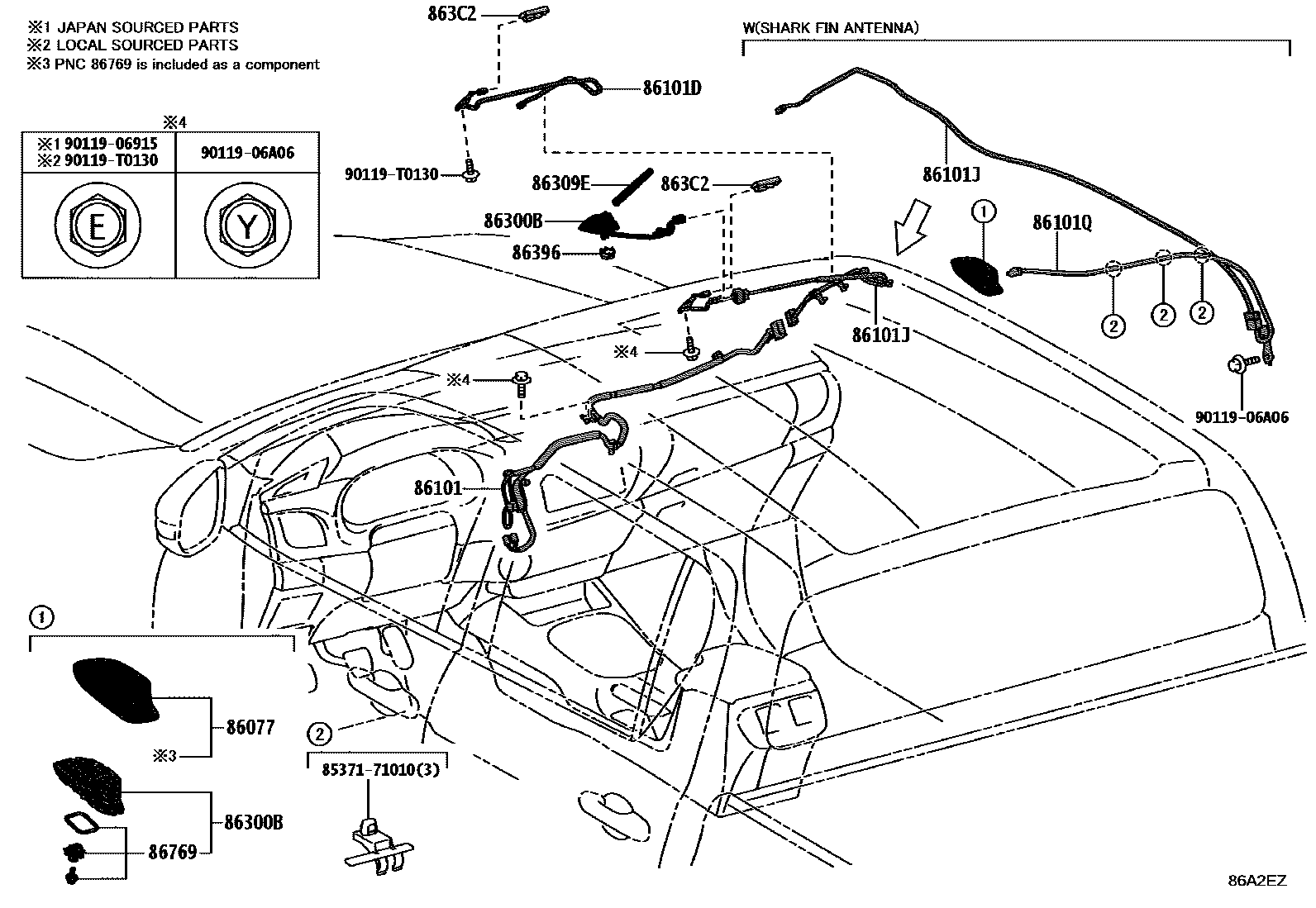

ANTENNA
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
SILVER ME.,1L0
ATTITUDE BLACK MC.,218
CRIMSON SPARK RED ME.,3T6
EMOTIONAL RED 2,3U5
ORANGE ME.,4R8
OXIDE BRONZE ME.,6X1
NEBULA BLUE ME.,8X2
DK. BLUE MC.,8X8
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,SUPER WHITE 2,040
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,PLATINUM WHITE PEARL MC.,089
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,SILVER ME.,1D6
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,SILVER ME.,1L0
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,ATTITUDE BLACK MC.,218
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,CRIMSON SPARK RED ME.,3T6
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,EMOTIONAL RED 2,3U5
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT,NEBULA BLUE ME.,8X2
86101CORD SUB-ASSY, ANTENNA
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)&DATA COMMUNICATION MODULE-WITHOUT
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL)
AUDIO-WITHOUT & WITH(AUDIO LESS COVER)
AUDIO-*DA(ENTRY MODEL)
AUDIO-*DA(ENTRY MODEL)
AUDIO-*DA(ENTRY MODEL)
AUDIO-*DA(ENTRY MODEL)
86101DCORD SUB-ASSY, ANTENNA, NO.3
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-AVN(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
86101JCORD SUB-ASSY, ANTENNA, NO.2
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
UKRAINE SPEC (EURO 6 REGULATION)&AUDIO-WITHOUT & WITH(AUDIO LESS COVER)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
86101QCORD SUB-ASSY, ANTENNA, NO.4
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
86300BANTENNA ASSY, AMPLIFIER, NO.1
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
86309EPOLE SUB-ASSY, ROOF ANTENNA
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
86396NUT, ANTENNA
UKRAINE SPEC (EURO 6 REGULATION)&DATA COMMUNICATION MODULE-WITHOUT
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-*DA(8INCH) & *BT & DAB; AUDIO-*DA(ENTRY MODEL); AUDIO-AVN(8INCH) & *BT & DAB
86769HOUSING, ROOF ANTENNA
ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(8INCH) & *BT & DAB; ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-*DA(ENTRY MODEL); ISRAEL SPEC (EURO 6 REGULATION)&AUDIO-AVN(8INCH) & *BT & DAB
UKRAINE SPEC (EURO 6 REGULATION)&GR SPORT WIDE TREAD&DATA COMMUNICATION MODULE-WITHOUT
8537171010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-71010
9011906915
main90119-06915
9011906A06
main90119-06A06
90119T0130
main90119-T0130
14 parts on this diagram · 1 diagram in section
