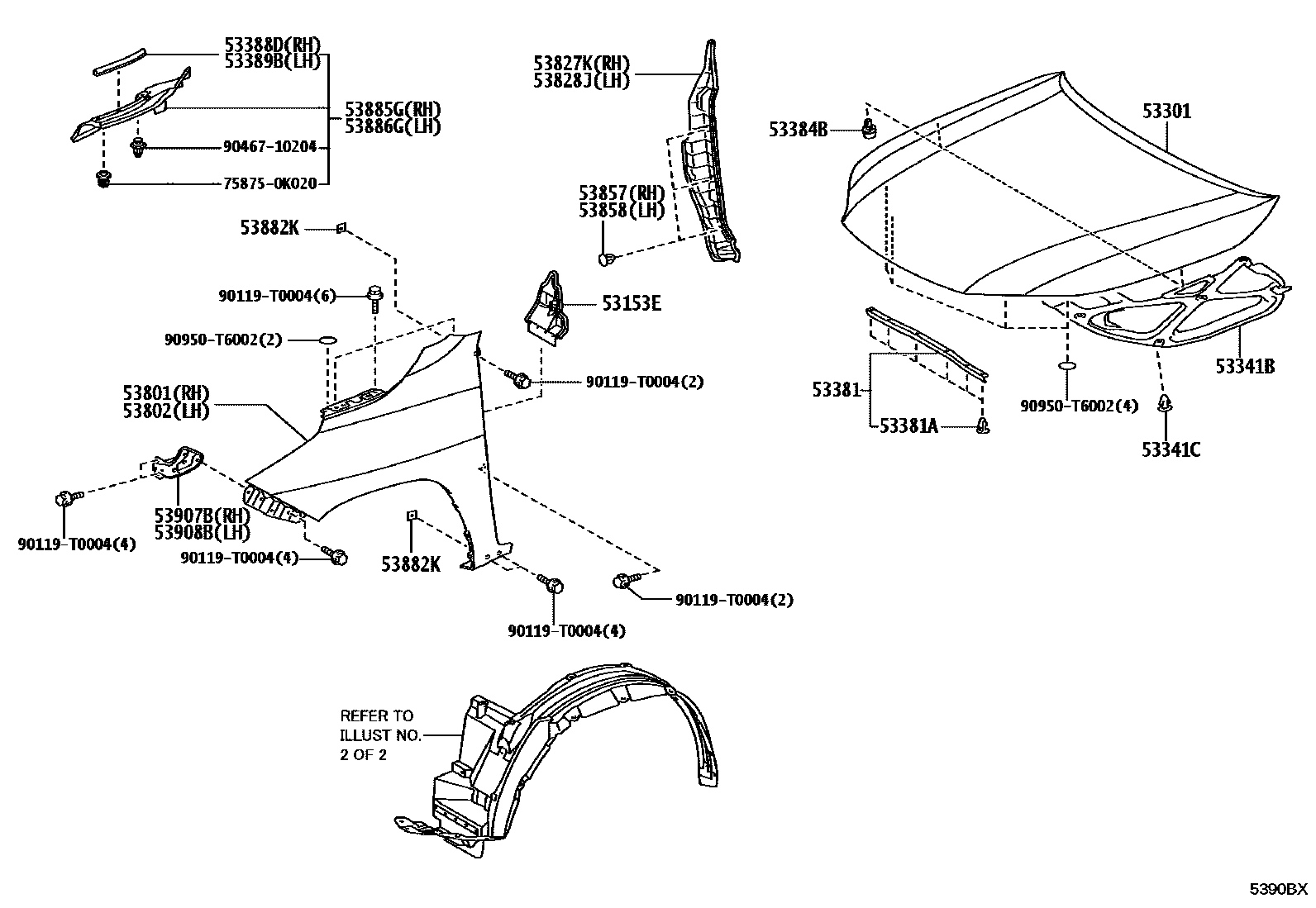

HOOD & FRONT FENDER
53153EGUIDE, FRONT SIDE AIR
TIRE & DISC WHEEL-265/65R17 STEEL
53301HOOD SUB-ASSY
1 TON PAY LOAD PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING); MLM Z-PLUS PACKAGE; MLM Z-PLUS PACKAGE&FRONT BUMPER-PAINTED(MLM) & WITH(COLOR MOULDING)
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53384BCUSHION, HOOD, CENTER
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
main53811-KK030iGUN12#,135..DCB,XTR; GUN125..H;GUN126..MHV;GUN126..6F..H;GUN126..XTR..6FC; GUN126..DCB..6FC..H..DCRL202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
main53811-YP010iGUN125..H;GUN126..MHV;GUN126..6F..H;GUN126..XTR..6FC; GUN126..DCB..6FC..H..DCRL202408
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
53802FENDER SUB-ASSY, FRONT LH
main53812-KK030iGUN12#,135..(DCB,XTR)..SAP; GUN126..DCB..SAP..6FC..DCRL; GUN126..MHV;GUN126..6F..H;GUN125..SAP..H;GUN126..XTR..6FC; GUN126..RHD..SCB202411
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/65R17 STEEL
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
main53812-YP020iGUN126..DCB..SAP..6FC..DCRL; GUN126..MHV;GUN126..6F..H;GUN125..SAP..H;GUN126..XTR..6FC202411
GR SPORT WIDE TREAD&TIRE & DISC WHEEL-265/65R17,ALUMINUM(FOR GR SPORT); MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; TIRE & DISC WHEEL-265/60R18, ALUMINUM
53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(J)
53882KSEAL, FRONT FENDER
53885GSEAL SUB-ASSY, FENDER APRON MUDGUARD, RH
53886GSEAL, FENDER APRON MUDGUARD, LH
53907BEXTENSION SUB-ASSY, FRONT END PANEL, RH
53908BEXTENSION SUB-ASSY, FRONT END PANEL, LH
758750K020MOULDING, BACK DOOR OUTSIDE, UPPER
main75875-0K020
90119T0004
main90119-T0004
9046710204
main90467-10204
90950T6002
main90950-T6002
24 parts on this diagram · 3 diagrams in section
