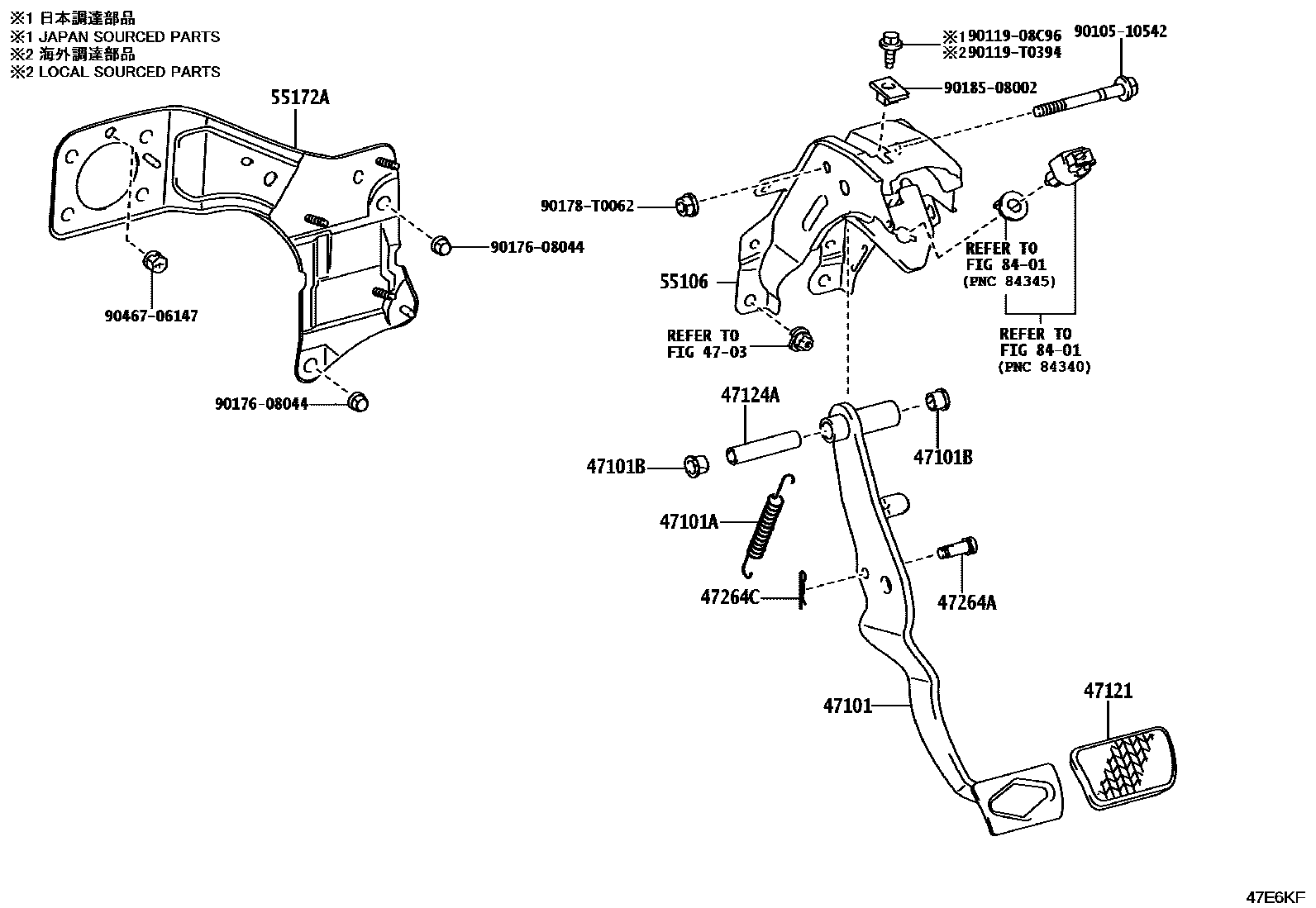

BRAKE PEDAL & BRACKET

0001 1 0002 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47101-KK010iGUN126..RHD..6F202411

main47101-KK020iGUN12#..LHD..6F202411

main47101-KK030iGUN12#..RHD..6FC202411

main47101-KK040iGUN12#,135..LHD..6FC202408

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-T0002iGUN12#,135202408

main90507-T0003iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGUN12#,135202408

47121PAD, BRAKE PEDAL

main31321-02020iGUN12#..6F202411

main47121-02030iGUN12#,135..6FC202408

main47121-78010iGUN126..DCB..6FC..H..DCRL202408

GR SPORT WIDE TREAD

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-F0002iGUN12#,135202408

47264APIN(FOR PUSH ROD)

main47148-35010iGUN12#,135202408

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90468-16012iGUN12#,135202408

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-KK010iGUN12#,135202408

55172ABASE, BRAKE PEDAL SUPPORT

main55172-KK040iGUN12#..RHD202411

main55172-KK050iGUN12#,135..LHD202408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510542

main90105-10542

9011908C96

main90119-08C96

90119T0394

main90119-T0394

9017608044

main90176-08044

90178T0062

main90178-T0062

9018508002

main90185-08002

9046706147

main90467-06147

18 parts on this diagram · 2 diagrams in section
