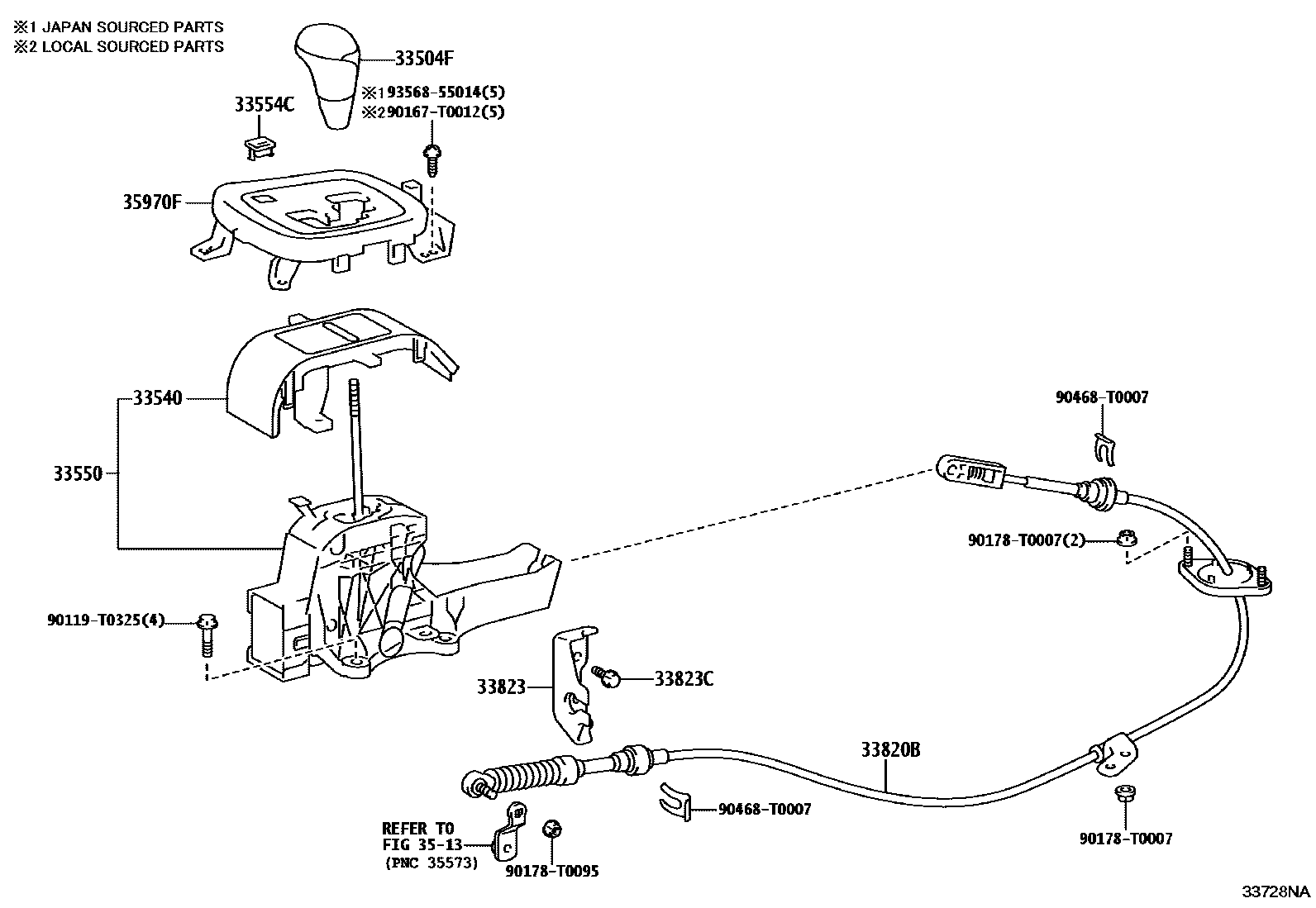

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM2#; GR SPORT WIDE TREAD,BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
DOOR TRIM-FABRIC & PAINT(BLACK),BLACK,TRIM2#
MLM ADVENTURE PACKAGE,BLACK,TRIM2#
GR SPORT WIDE TREAD,BLACK,TRIM2#
33540PLATE ASSY, SHIFT LEVER
33550FLOOR SHIFT ASSY, TRANSMISSION
main33550-0K190supersedes 33550-0K180iGUN126..6FC..S; GUN126..LHD..6FC..H;GUN125,135..LHD..6FC202408
WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)
WIRELESS DOOR LOCK-WITH
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3513THROTTLE LINK & VALVE LEVER (ATM)
35970FHOUSING ASSY, POSITION INDICATOR
main35970-0K260iGUN126..LHD..6FC;GUN125..LHD..SAP..H;GUN125,135..THP..6FC; GUN126..LHD..DCB..6FC..H..DCRL202408
GR SPORT WIDE TREAD
GR SPORT WIDE TREAD,TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
MLM ADVENTURE PACKAGE,TYPE B:REFER ILLUST.
MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-FABRIC; MLM ADVENTURE PACKAGE&SEAT COVER MATERIAL-NATURAL LEATHER
GR SPORT WIDE TREAD,TYPE B:REFER ILLUST.
GR SPORT WIDE TREAD,TYPE B:REFER ILLUST.
90119T0325
main90119-T0325
90167T0012
main90167-T0012
90178T0007
main90178-T0007
90178T0095
main90178-T0095
90468T0007
main90468-T0007
9356855014
main93568-55014
15 parts on this diagram · 2 diagrams in section
