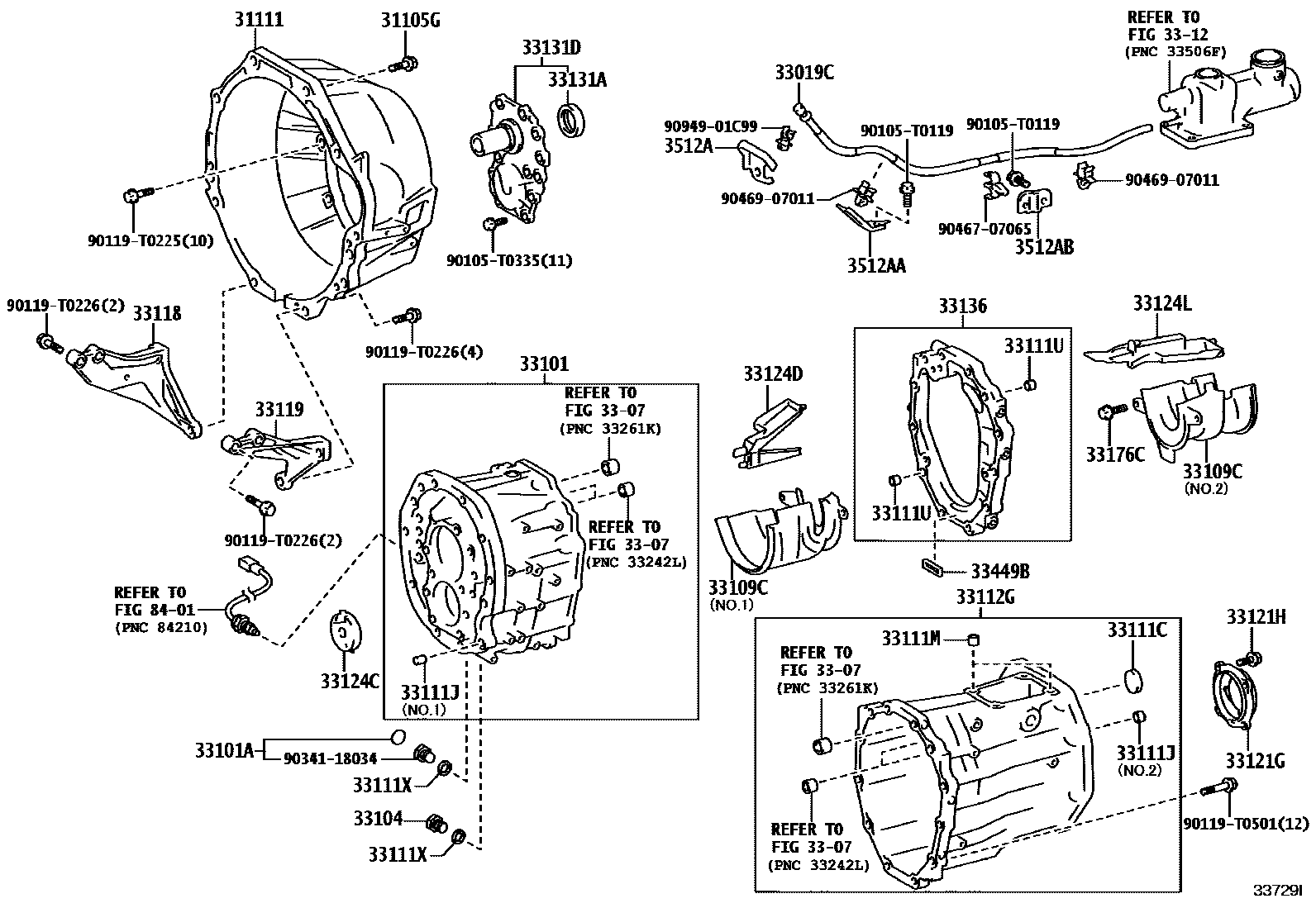

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90119-T0227202411

31111HOUSING, CLUTCH

main31111-0K140202411

main31111-0K150202411

33019CBREATHER SUB-ASSY, TRANSMISSION

main33019-0K100202411

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-0K071202411

main33101-0K081202411

main33101-0K091202411

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033202411

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006202411

main90341-18034202411

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-0K010202411

main33109-0K020202411

main33109-0K030202411

main33109-0K040202411

33111CPLUG(FOR TRANSMISSION CASE)

main90331-30004202411

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-11003202411

main90250-12002202411

main90250-T0020202411

main90250-T0029202411

33111MPIN, RING(FOR TRANSMISSION CASE)

main90253-11021202411

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001202411

main90253-T0011202411

33111XGASKET, TRANSMISSION CASE PLUG

main90430-T0021202411

main90430-T0025202411

33112GCASE, TRANSMISSION, REAR

main33102-0K010202411

main33102-0K020202411

main33102-0K030202411

main33102-0K040202411

33118PLATE, STIFFENER, RH(MTM)

main33118-0K030202411

main33118-0K040202411

33119PLATE, STIFFENER, LH(MTM)

main33119-0K020202411

main33119-0K040202411

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

33121GCOVER, MANUAL TRANSMISSION CASE

main33121-0K010202411

main33121-0K030202411

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-T0500202411

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0K070202411

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-04010202411

main33124-0K080202411

33124LPIPE, OIL RECEIVER, N0.3(MTM)

main33124-0K090202411

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-T0066202411

33131DRETAINER, BEARING, FRONT

main33108-0K010202411

main33108-0K020202411

33136PLATE, TRANSMISSION INTERMEDIATE

main33106-0K020202411

main33106-0K030202411

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main90105-T0334202411

33449BMAGNET, TRANSMISSION

main33449-60010202411

3512ABRACKET, TRANSMISSION BREATHER, NO.1

main3512A-0K010202411

main3512A-0K210202411

3512AABRACKET, TRANSMISSION BREATHER, NO.2

main3512A-0K030202411

main3512A-0K180202411

3512ABBRACKET, TRANSMISSION BREATHER, NO.3

main3512A-0K050202411

main3512A-0K220202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105T0119

main90105-T0119

90105T0335

main90105-T0335

90119T0225

main90119-T0225

90119T0226

main90119-T0226

90119T0501

main90119-T0501

9034118034

main90341-18034

9046707065

main90467-07065

9046907011

main90469-07011

9094901C99

main90949-01C99

40 parts on this diagram · 1 diagram in section
