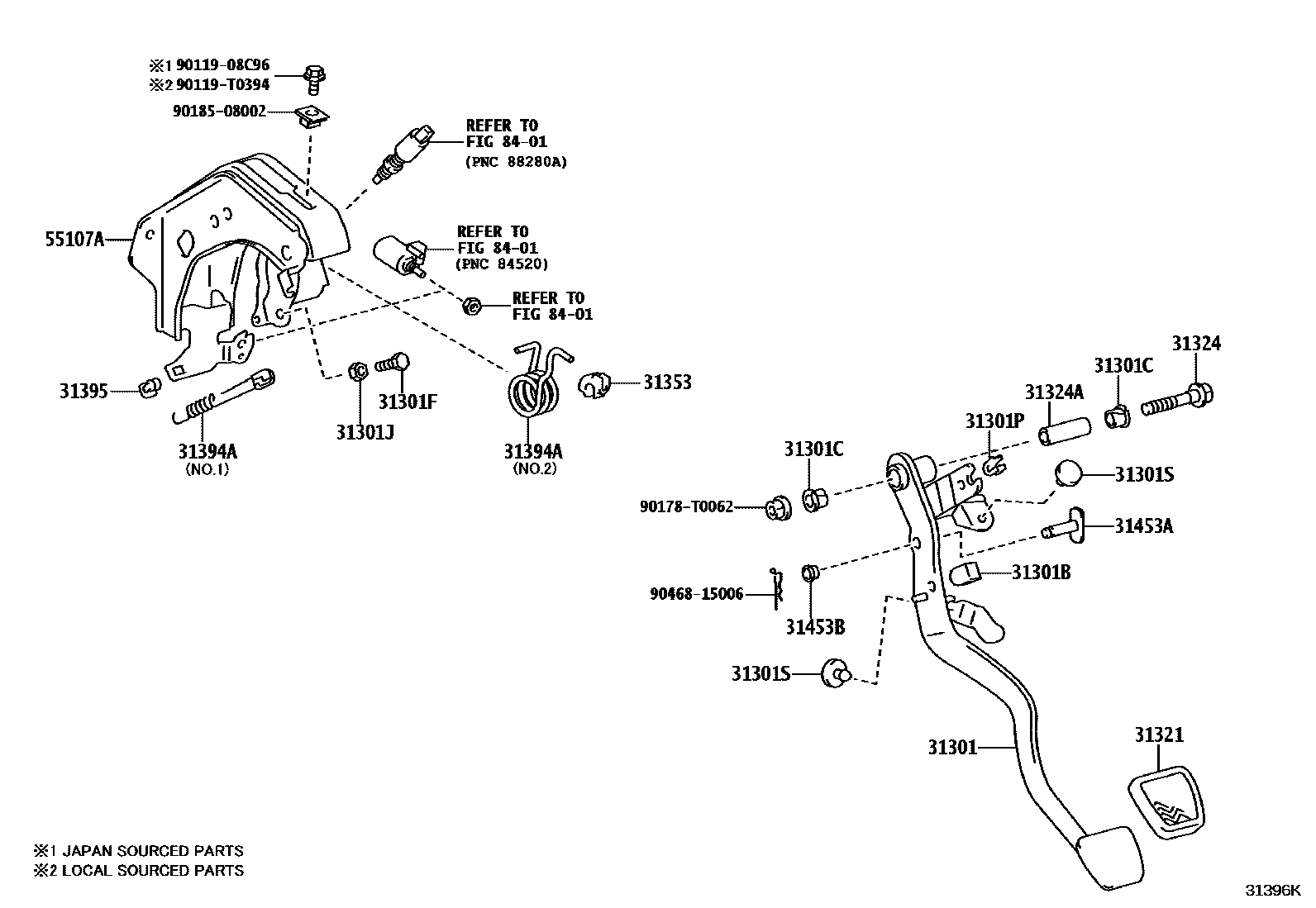

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1CLUTCH PEDAL 0002 1CLUTCH PIPING 0003 1CLUTCH PEDAL 0004 1CLUTCH PIPING

31301PEDAL SUB-ASSY, CLUTCH

main31301-KK040iGUN126..RHD..6F202411

main31301-KK080iGUN12#..LHD..6F202411

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-T0004iGUN126..RHD..6F202411

main90541-T0005iGUN12#..LHD..6F202411

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iGUN12#..6F202411

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-T0005iGUN12#..6F202411

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main90170-T0005iGUN12#..6F202411

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iGUN12#..6F202411

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90541-06036×2iGUN12#..6F202411

31321PAD, CLUTCH PEDAL

main31321-02020iGUN12#..6F202411

31324SHAFT, CLUTCH PEDAL

main90105-T0112iGUN12#..6F202411

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGUN12#..6F202411

31353HOLDER, CLUTCH PEDAL SPRING

main31353-26010iGUN12#..6F202411

31394ASPRING, PEDAL W/HOOK

main31394-25010iGUN12#..6F202411

NO.1:REFER ILLUST.

main31394-KK010iGUN12#..6F202411

NO.2:REFER ILLUST.

31395HOOK, PEDAL SPRING

main31395-33020iGUN12#..6F202411

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-T0002iGUN12#..6F202411

L=31.9

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGUN12#..6F202411

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-KK030iGUN12#..6F202411

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C96

main90119-08C96

90119T0394

main90119-T0394

90178T0062

main90178-T0062

9018508002

main90185-08002

9046815006

main90468-15006

22 parts on this diagram · 4 diagrams in section
