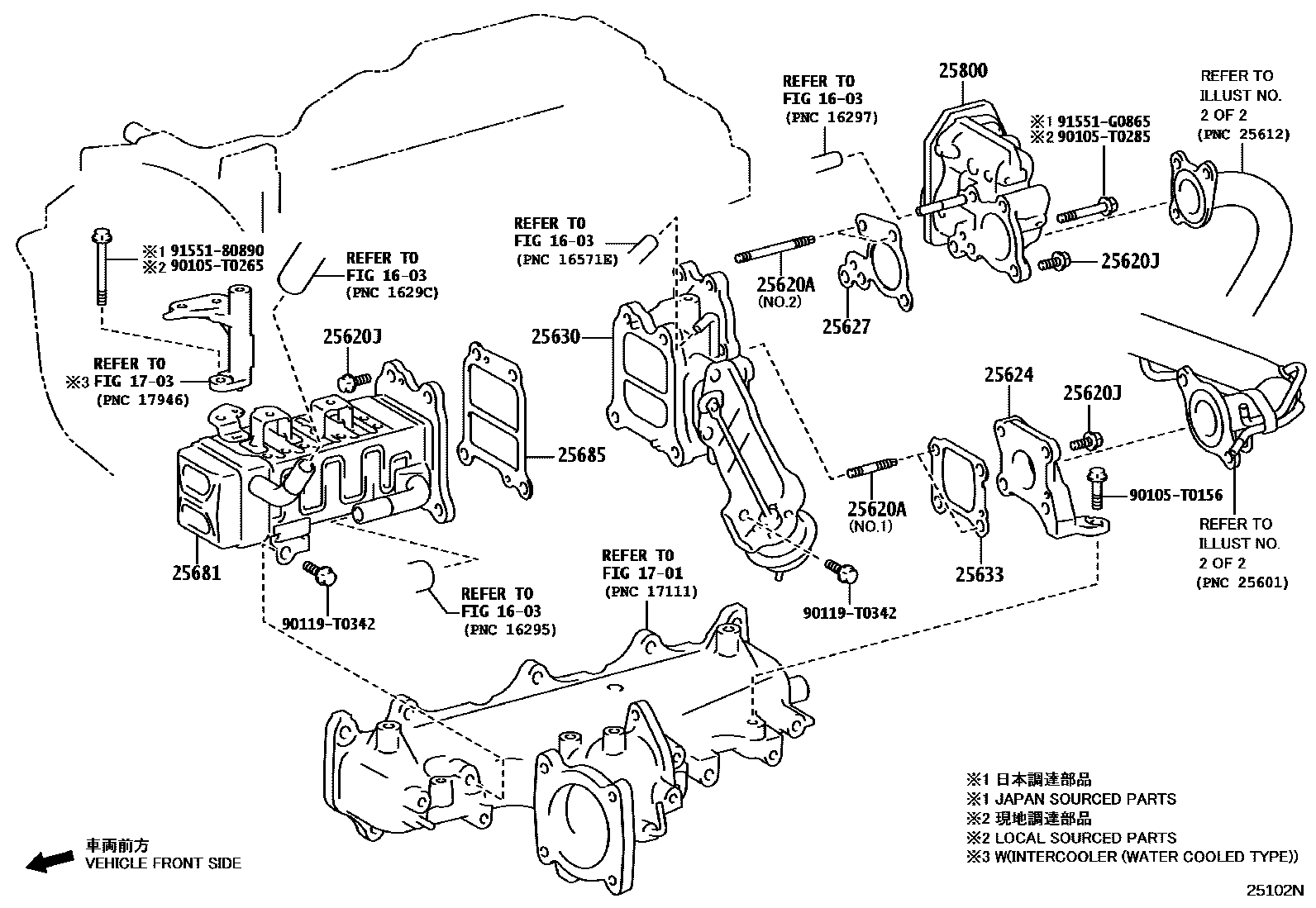

EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
1703AIR CLEANER
25620ABOLT, STUD(FOR EGR VALVE)
NO.1
NO.2
25620JBOLT(FOR EGR VALVE)
main90119-T0238×13i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125,135;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25624ADAPTER, EGR VALVE
main25624-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25627GASKET, EGR VALVE
main25627-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
25630VALVE ASSY, EGR, NO.2
main25630-0E041i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25633GASKET, EGR VALVE
main25633-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25681COOLER, EGR, NO.1
main25681-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main25681-0W020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125,135..6FC;1GDFTV..GUN126..SAP..DCRL202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25685GASKET, EGR COOLER, NO.1
main25685-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
25800VALVE ASSY, ELECTRIC EGR CONTROL
90105T0156
main90105-T0156
90105T0265
main90105-T0265
90105T0285
main90105-T0285
90119T0342
main90119-T0342
9155180890
main91551-80890
91551G0865
main91551-G0865
18 parts on this diagram · 2 diagrams in section
