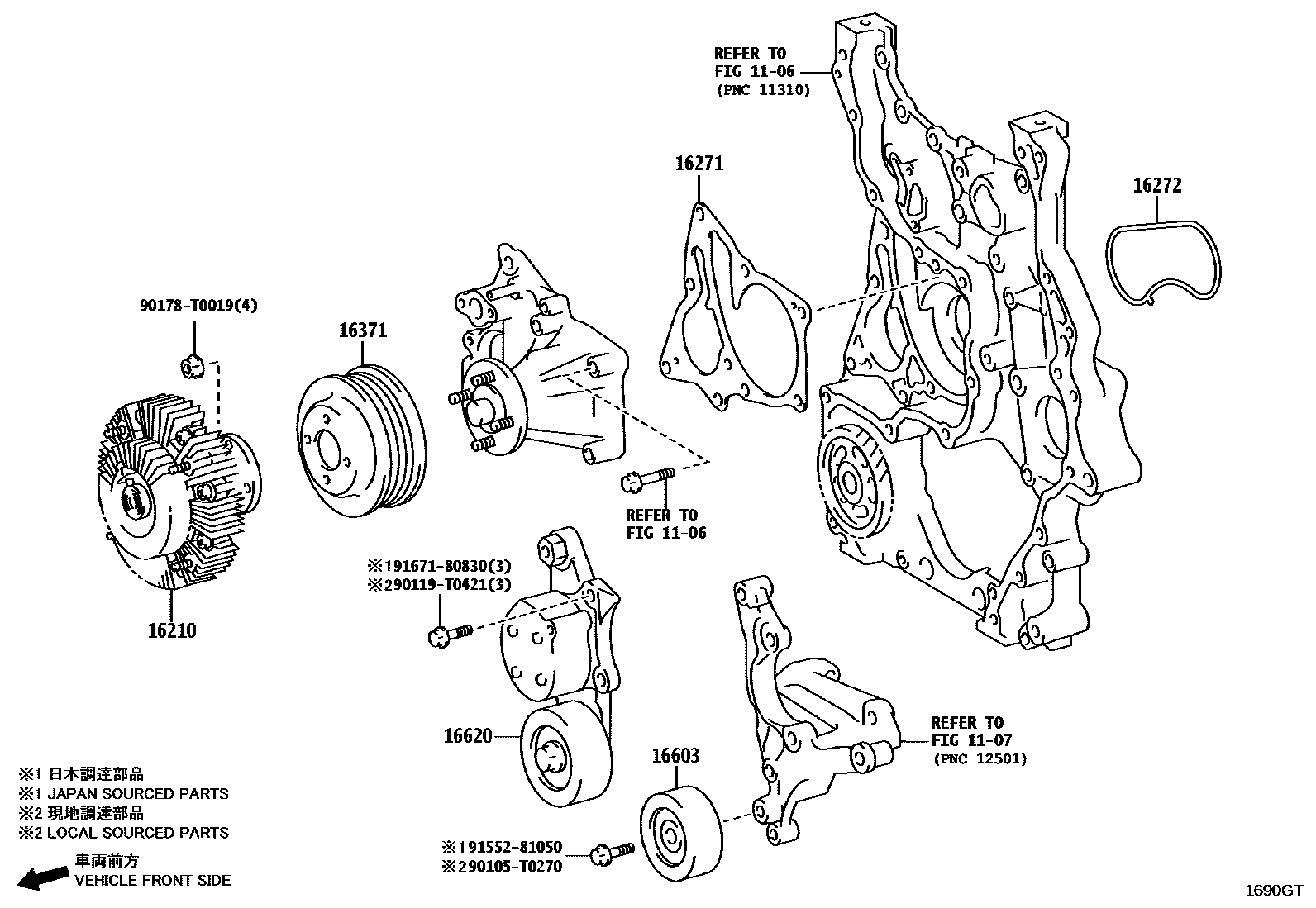

WATER PUMP
1106TIMING GEAR COVER & REAR END PLATE
1107MOUNTING
16210COUPLING ASSY, FLUID
THA SOURCED PARTS
THA SOURCED PARTS
16271GASKET, WATER PUMP
THA SOURCED PARTS
main16271-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
16272GASKET, WATER PUMP, NO.2
THA SOURCED PARTS
main16272-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
16371PULLEY, FAN
THA SOURCED PARTS
main16371-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
16603PULLEY SUB-ASSY, IDLER, NO.1
THA SOURCED PARTS
THA SOURCED PARTS
16620TENSIONER ASSY, V-RIBBED BELT
THA SOURCED PARTS
90105T0270
main90105-T0270
90119T0421
main90119-T0421
90178T0019
main90178-T0019
9155281050
main91552-81050
9167180830
main91671-80830
13 parts on this diagram · 1 diagram in section
