Toyota HIACE VAN,COMMUTER 711 — VENTILATION HOSE

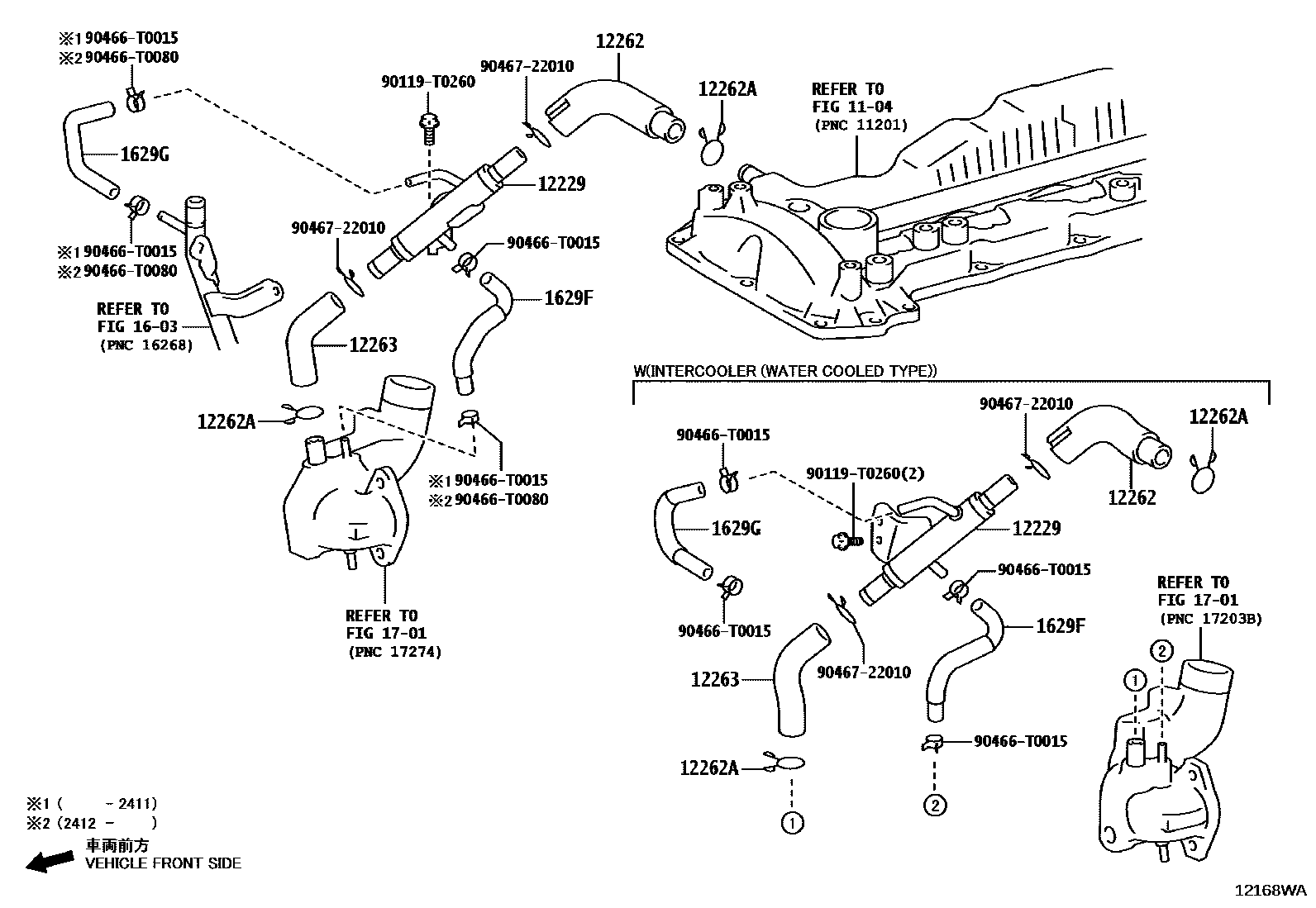

Parts diagram

1104CYLINDER HEAD

→ Go to FIG 11-04

12229PIPE, VENTILATION

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

12263HOSE, VENTILATION, NO.3

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1629FHOSE, WATER BY-PASS, NO.19

1629GHOSE, WATER BY-PASS, NO.20

1701MANIFOLD

→ Go to FIG 17-01

90119T0260

90466T0015

90466T0080

9046722010

13 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota HIACE VAN,COMMUTER 711

This section contains 13 genuine Toyota parts for the VENTILATION HOSE system of the Toyota HIACE VAN,COMMUTER 711. Key components include: CYLINDER HEAD, PIPE, VENTILATION, HOSE, VENTILATION, NO.2, CLIP(FOR VENTILATION HOSE NO.2), HOSE, VENTILATION, NO.3.
