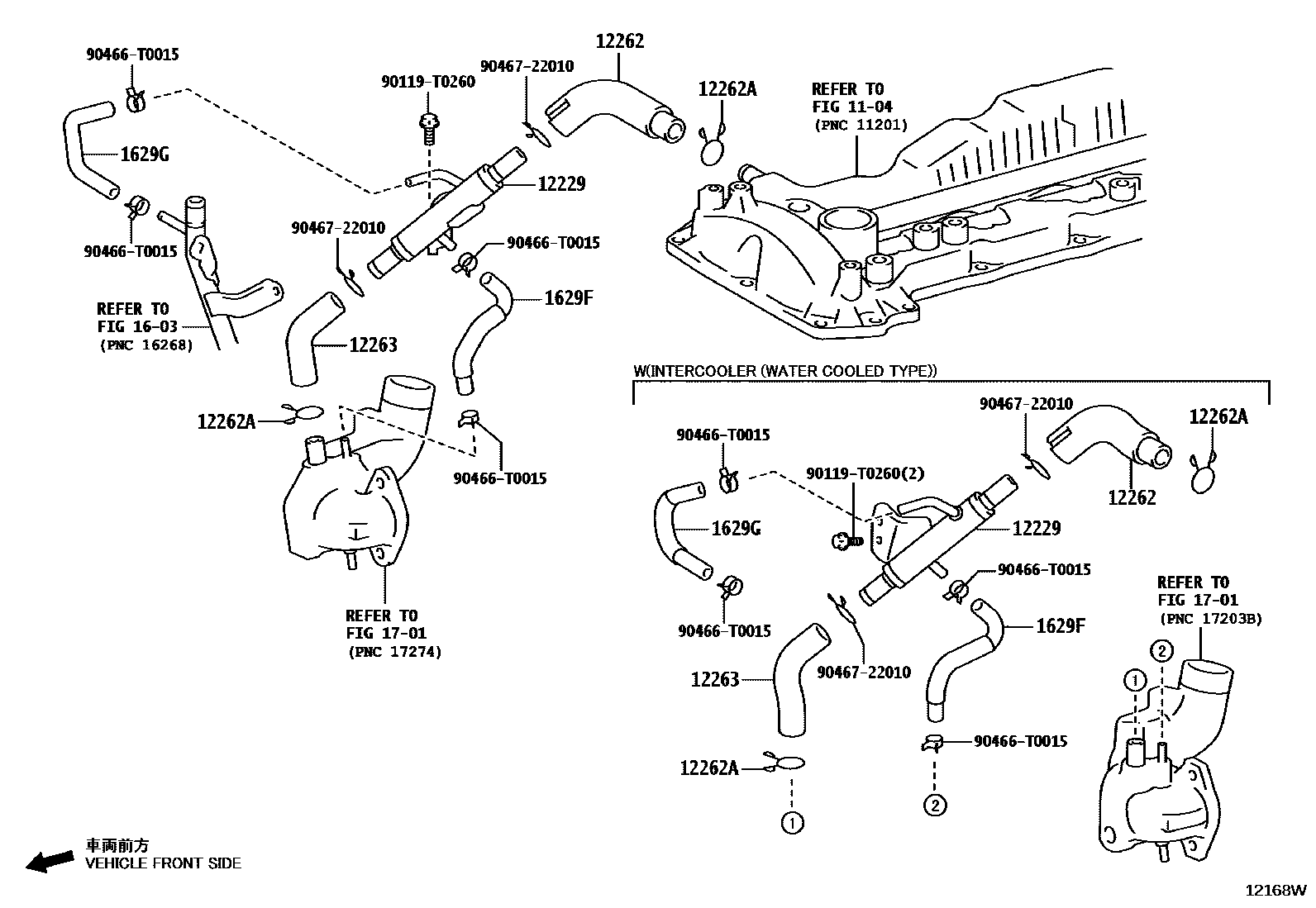

VENTILATION HOSE
1104CYLINDER HEAD
12229PIPE, VENTILATION
main12229-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main12229-0E020i1GDFTV..GUN126..SAP;2GDFTV..GUN125,135..6FC; 1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
12262HOSE, VENTILATION, NO.2
main12262-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main12262-0E020i1GDFTV..GUN126..SAP;2GDFTV..GUN125,135..6FC; 1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
12262ACLIP(FOR VENTILATION HOSE NO.2)
12263HOSE, VENTILATION, NO.3
main12263-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main12263-0E020i1GDFTV..GUN126..SAP;2GDFTV..GUN125,135..6FC; 1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
1603RADIATOR & WATER OUTLET
1629FHOSE, WATER BY-PASS, NO.19
main1629F-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main1629F-0E020i1GDFTV..GUN126..SAP;2GDFTV..GUN125,135..6FC; 1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
1629GHOSE, WATER BY-PASS, NO.20
main1629G-0E010i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
main1629G-0E020i1GDFTV..GUN126..SAP;2GDFTV..GUN125,135..6FC; 1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H202408
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
1701MANIFOLD
90119T0260
main90119-T0260
90466T0015
main90466-T0015
9046722010
main90467-22010
12 parts on this diagram · 1 diagram in section
