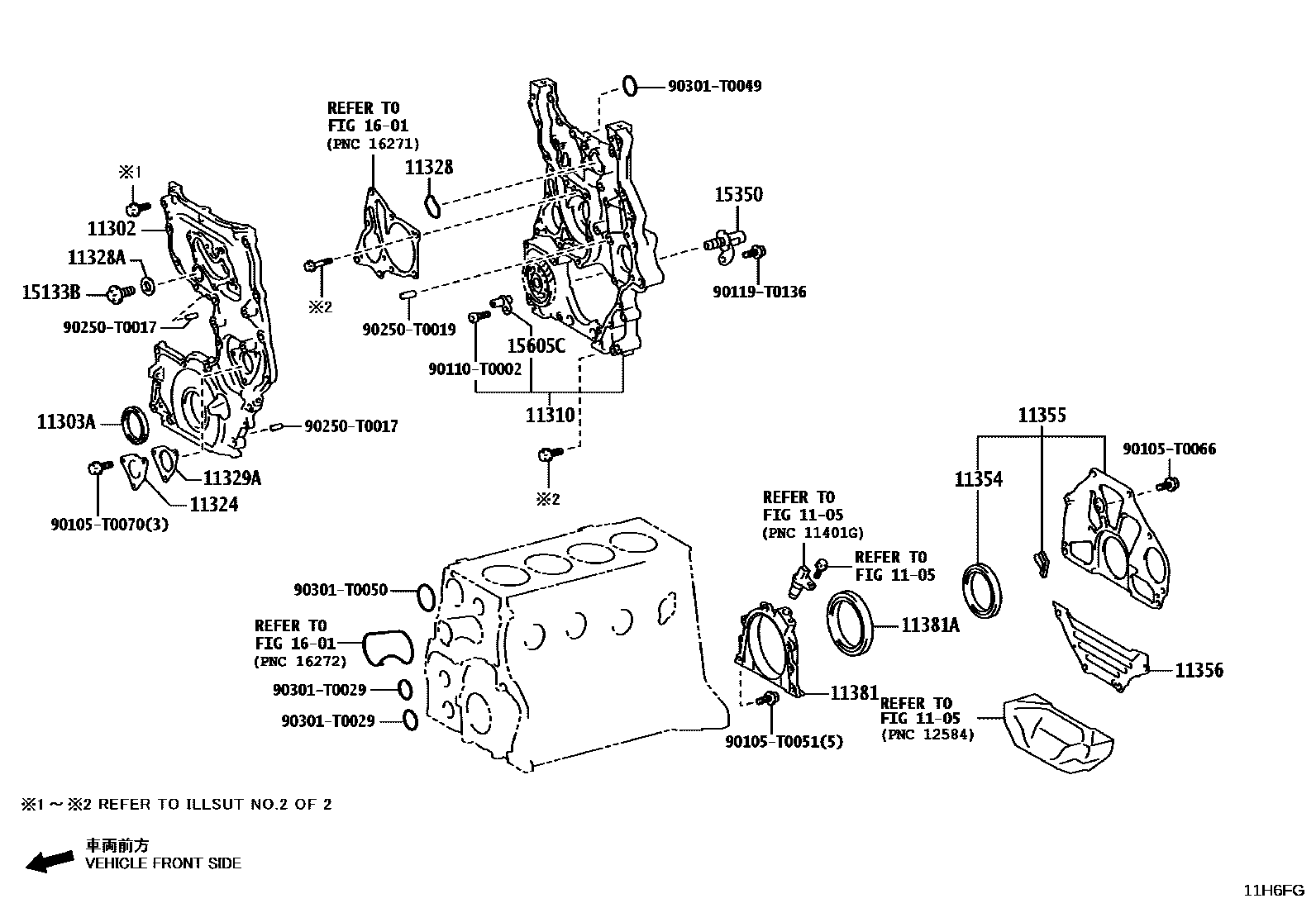

TIMING GEAR COVER & REAR END PLATE
1105CYLINDER BLOCK
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
THA SOURCED PARTS
main11321-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
THA SOURCED PARTS
11303ASEAL, OIL(FOR CRANKSHAFT FRONT)
(L)
11310COVER ASSY, TIMING CHAIN
THA SOURCED PARTS
main11310-0E050i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11324PLATE, TIMING CHAIN COVER
THA SOURCED PARTS
main11324-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11328GASKET, TIMING GEAR OR CHAIN COVER
THA SOURCED PARTS
main11328-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11328AGASKET, TIMING BELT COVER, NO.1
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
THA SOURCED PARTS
main11329-0E020i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11354SEAL, FLYWHEEL HOUSING DUST
(L)
(J)
11355PLATE, REAR END
THA SOURCED PARTS
THA SOURCED PARTS
ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS); UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS)
11356PLATE, REAR END, NO.2
THA SOURCED PARTS
ZAF SOURCED PARTS
11381RETAINER, ENGINE REAR OIL SEAL
THA SOURCED PARTS
main11381-0E040i1GDFTV..GUN126..THP; 1GDFTV..GUN126..THP..H; 2GDFTV..GUN125..6F;1GDFTV..GUN126..THP202408
IND SOURCED PARTS; ISRAEL SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; TURKEY SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS; UKRAINE SPEC (EURO 6 REGULATION)&EXHAUST EMISSION CONTROL-EURO6E,WITH(ON BOARD DIAGNOSIS),IND SOURCED PARTS
11381ASEAL, ENGINE REAR OIL
(L)
15133BPLUG, OIL PUMP RELIEF VALVE
15350VALVE ASSY, OIL PRESSURE SWITCHING
15605CVALVE SUB-ASSY, OIL CHECK
1601WATER PUMP
90105T0051
main90105-T0051
90105T0066
main90105-T0066
90105T0070
main90105-T0070
90110T0002
main90110-T0002
90119T0136
main90119-T0136
90250T0017
main90250-T0017
90250T0019
main90250-T0019
90301T0029
main90301-T0029
90301T0049
main90301-T0049
90301T0050
main90301-T0050
27 parts on this diagram · 2 diagrams in section
