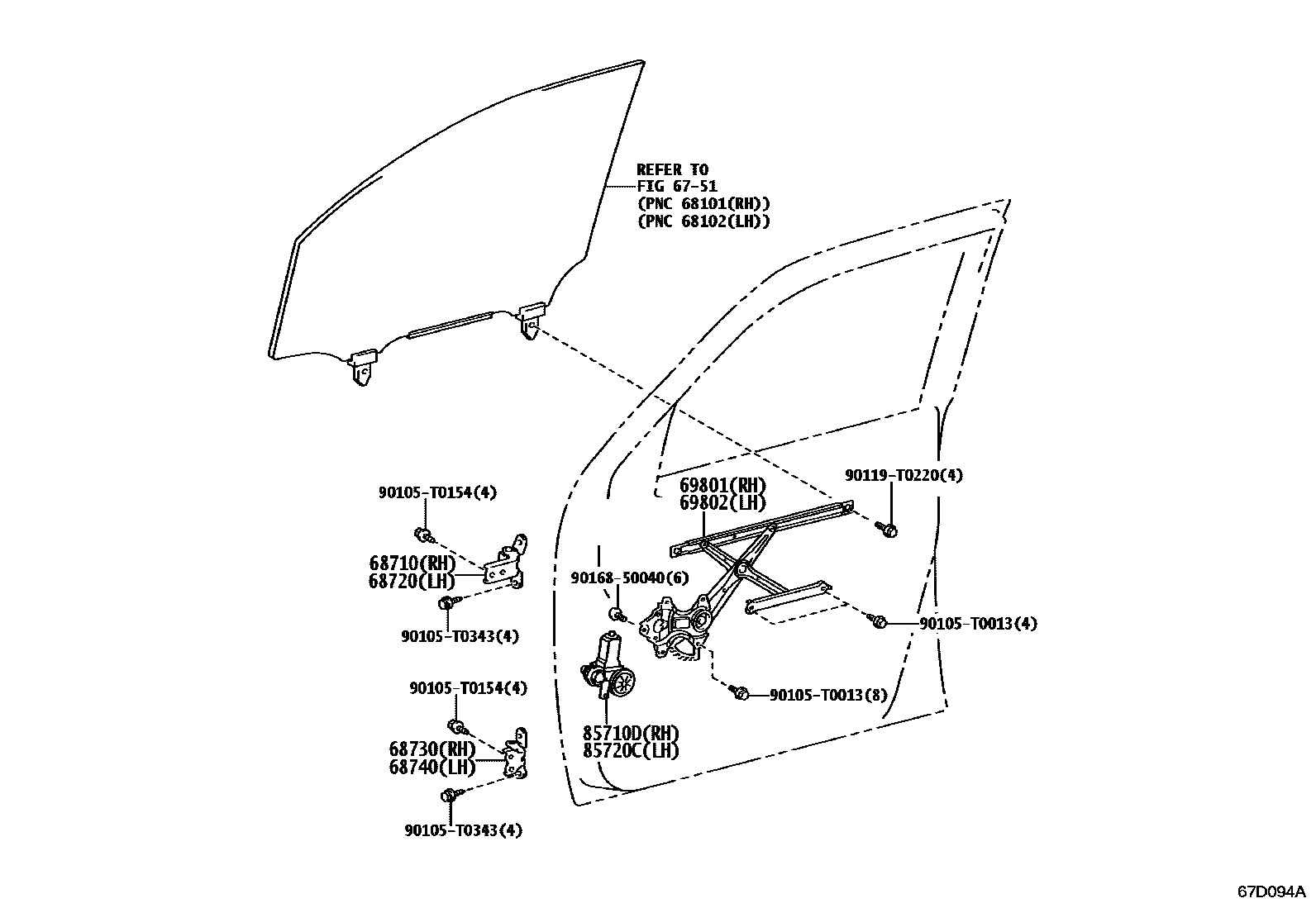

FRONT DOOR WINDOW REGULATOR & HINGE
6751FRONT DOOR PANEL & GLASS
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH
ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH; RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH; TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH; UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
main85710-0K190supersedes 85710-0K180iGUN125,135..THP; GUN125,135..THP..S; GUN125..THP..6F; GUN125..THP..S; GUN126..S; GUN126..THP..H202308-202407
ISRAEL EURO6 FOR 12 E-PF; RUSSIA&CUSTOM UNION SPEC; TURKEY EURO6 FOR 12 E-PF; UKRAINE SPEC (EURO 6 REGULATION); WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-*DA(8INCH) & *BT & DAB; WIRELESS DOOR LOCK-WITH(*SES & ID CODE BOX)&AUDIO-AVN(8INCH) & *BT & DAB
85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH
main85720-0K190supersedes 85720-0K210iGUN125,135..THP; GUN125,135..THP..S; GUN125..THP..6F; GUN125..THP..S; GUN126..THP202308-202407
ISRAEL EURO6 FOR 12 E-PF; ISRAEL EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH; RUSSIA&CUSTOM UNION SPEC; RUSSIA&CUSTOM UNION SPEC&WIRELESS DOOR LOCK-WITH; TURKEY EURO6 FOR 12 E-PF; TURKEY EURO6 FOR 12 E-PF&WIRELESS DOOR LOCK-WITH; UKRAINE SPEC (EURO 6 REGULATION); UKRAINE SPEC (EURO 6 REGULATION)&WIRELESS DOOR LOCK-WITH
90105T0013
main90105-T0013
90105T0154
main90105-T0154
90105T0343
main90105-T0343
90119T0220
main90119-T0220
9016850040
main90168-50040
14 parts on this diagram · 1 diagram in section
