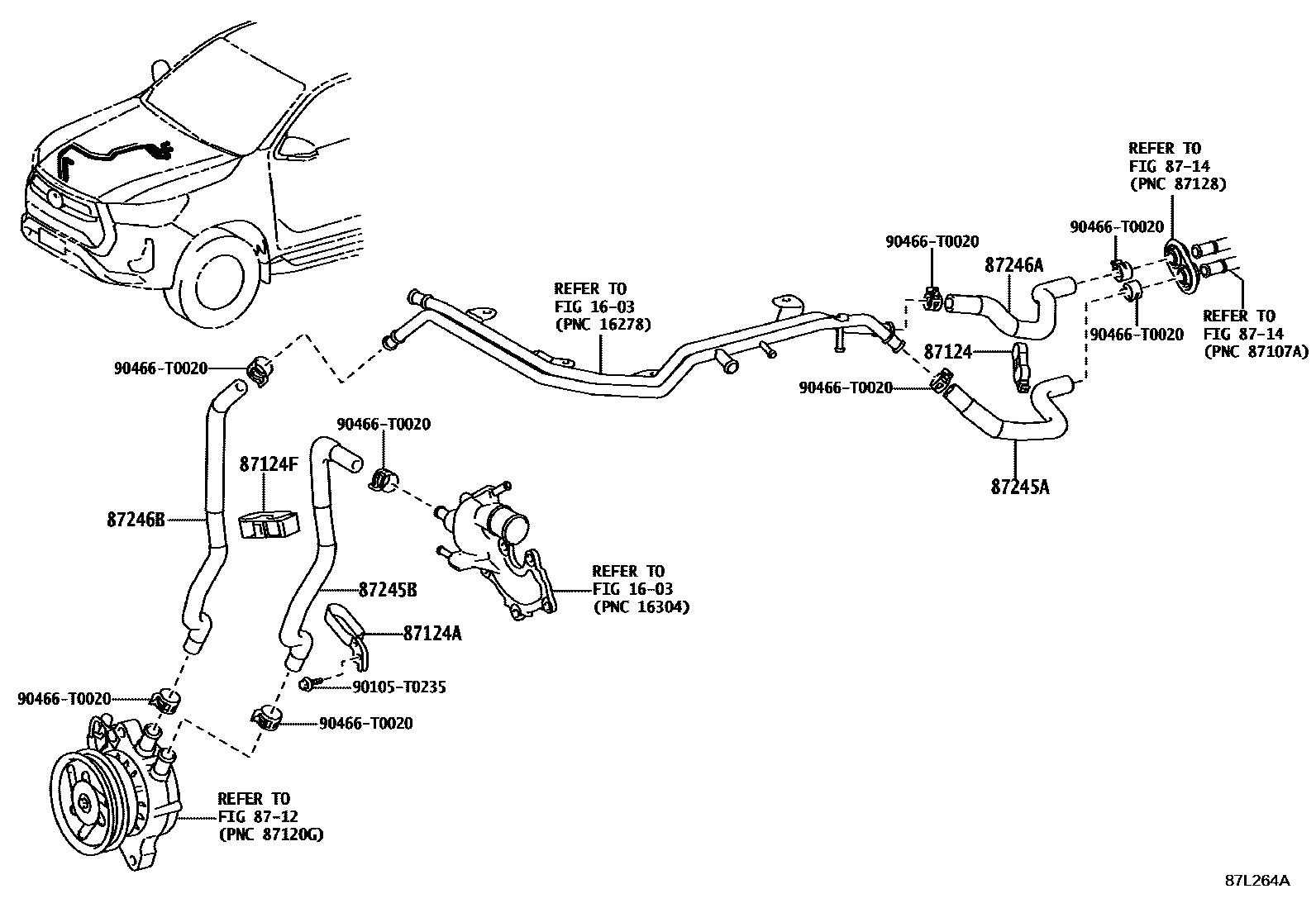

HEATING & AIR CONDITIONING - WATER PIPING
1603RADIATOR & WATER OUTLET
8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER
87124CLAMP, HEATER
87124ACLAMP, HEATER
87124FCLAMP, HEATER HOSE, NO.1
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245AHOSE, HEATER WATER, INLET A
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
87245BHOSE, HEATER WATER, INLET B
87246AHOSE, HEATER WATER, OUTLET A
EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS)
87246BHOSE, HEATER WATER, OUTLET B
EXHAUST EMISSION CONTROL-EURO 5 WITH(ON BOARD DIAGNOSIS); EXHAUST EMISSION CONTROL-EURO 6C,EURO 6D WITH(ON BOARD DIAGNOSIS)
90105T0235
main90105-T0235
90466T0020
main90466-T0020
12 parts on this diagram · 1 diagram in section
