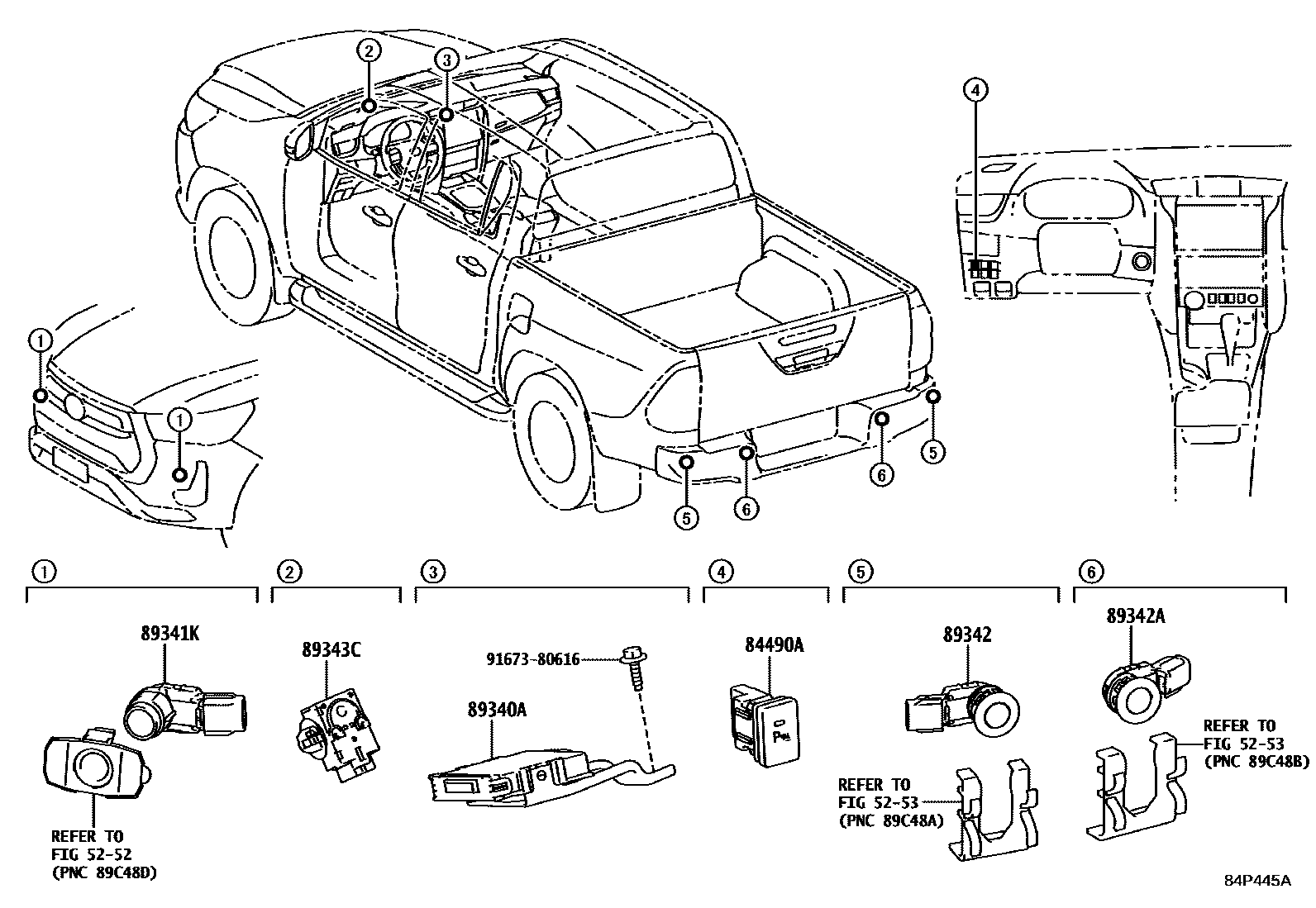

CLEARANCE & BACK SONAR
5252FRONT BUMPER & BUMPER STAY
5253REAR BUMPER & BUMPER STAY
84490ASWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
CLEARANCE & BACK SONAR-WITH
main84490-0K060iGUN12#..SAP..H; GUN125..RHD..S..CBU;GUN125,135..LHD..(DCB,XTR)..SAP..S..CBU202301-202401
CLEARANCE & BACK SONAR-WITH
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH; TIRE & DISC WHEEL-265/65R17 STEEL&CLEARANCE & BACK SONAR-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040; SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3; GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1D6; SILVER ME.,1D6
ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH,CRIMSON SPARK RED ME.,3T6; CRIMSON SPARK RED ME.,3T6
CLEARANCE & BACK SONAR-WITH,EMOTIONAL RED 2,3U5; EMOTIONAL RED 2,3U5
CLEARANCE & BACK SONAR-WITH,ORANGE ME.,4R8; ORANGE ME.,4R8
CLEARANCE & BACK SONAR-WITH,OXIDE BRONZE ME.,6X1; OXIDE BRONZE ME.,6X1
CLEARANCE & BACK SONAR-WITH,NEBULA BLUE ME.,8X2; NEBULA BLUE ME.,8X2
CLEARANCE & BACK SONAR-WITH,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
89342SENSOR, ULTRASONIC, REAR CORNER
CLEARANCE & BACK SONAR-WITH
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH
9167380616
main91673-80616
9 parts on this diagram · 2 diagrams in section
