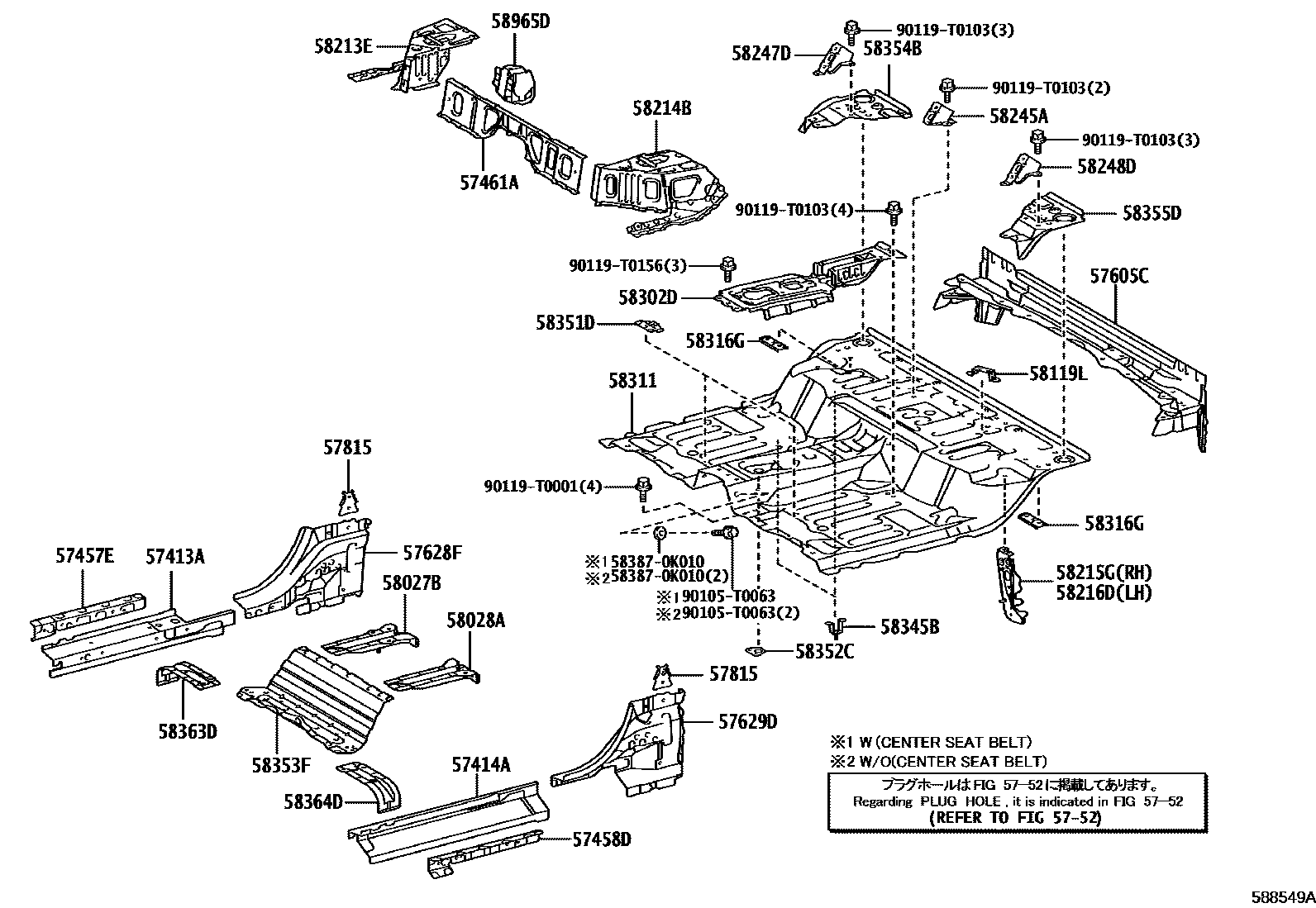

REAR FLOOR PANEL & REAR FLOOR MEMBER
57413AMEMBER, FLOOR SIDE, INNER REAR RH
57414AMEMBER, FLOOR SIDE, INNER REAR LH
57457EPATCH, FLOOR SIDE MEMBER, RR RH
57458DPATCH, FLOOR SIDE MEMBER, REAR LH
57461AMEMBER, CENTER FLOOR CROSS
5752HOLE PLUG
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57628FPLATE, REAR FLOOR SIDE MEMBER, RH
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57815REINFORCEMENT, BELT ANCHOR, NO.1
58027BREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58028AREINFORCE SUB-ASSY, SEAT BELT ANCHOR, NO.2
58119LPLATE, REAR FLOOR SIDE
58213EPANEL, SEAT FLOOR SIDE, RH
58214BPANEL, SEAT FLOOR SIDE, LH
58215GBRACKET, REAR SEAT MOUNTING, NO.1
58216DBRACKET, REAR SEAT MOUNTING, LH
58245ABRACKET, REAR SEAT HINGE, CENTER NO.1
58247DBRACKET, REAR SEAT HINGE, OUTER RH
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58302DPANEL SUB-ASSY, REAR FLOOR, FRONT
58311PAN, REAR FLOOR
REAR SEAT-WITH(BACK PANEL CUSHION ONLY); REAR SEAT-WITH(BACK PANEL CUSHION ONLY)&REAR HEADREST-WITHOUT
58316GRETAINER, REAR SEAT, NO.1
58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58351DREINFORCEMENT, REAR FLOOR PANEL
58352CREINFORCEMENT, REAR FLOOR PANEL, NO.2
58353FREINFORCEMENT, REAR FLOOR PANEL, NO.3
58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4
58355DREINFORCEMENT, REAR FLOOR PANEL, NO.5
58363DREINFORCEMENT, REAR FLOOR PANEL, NO.2 RH
58364DREINFORCEMENT, REAR FLOOR PANEL, NO.2 LH
58965DBRACKET, JACK SUPPORT
583870K010PLATE, REAR FLOOR FINISH
main58387-0K010
90105T0063
main90105-T0063
90119T0001
main90119-T0001
90119T0103
main90119-T0103
90119T0156
main90119-T0156
37 parts on this diagram · 3 diagrams in section
