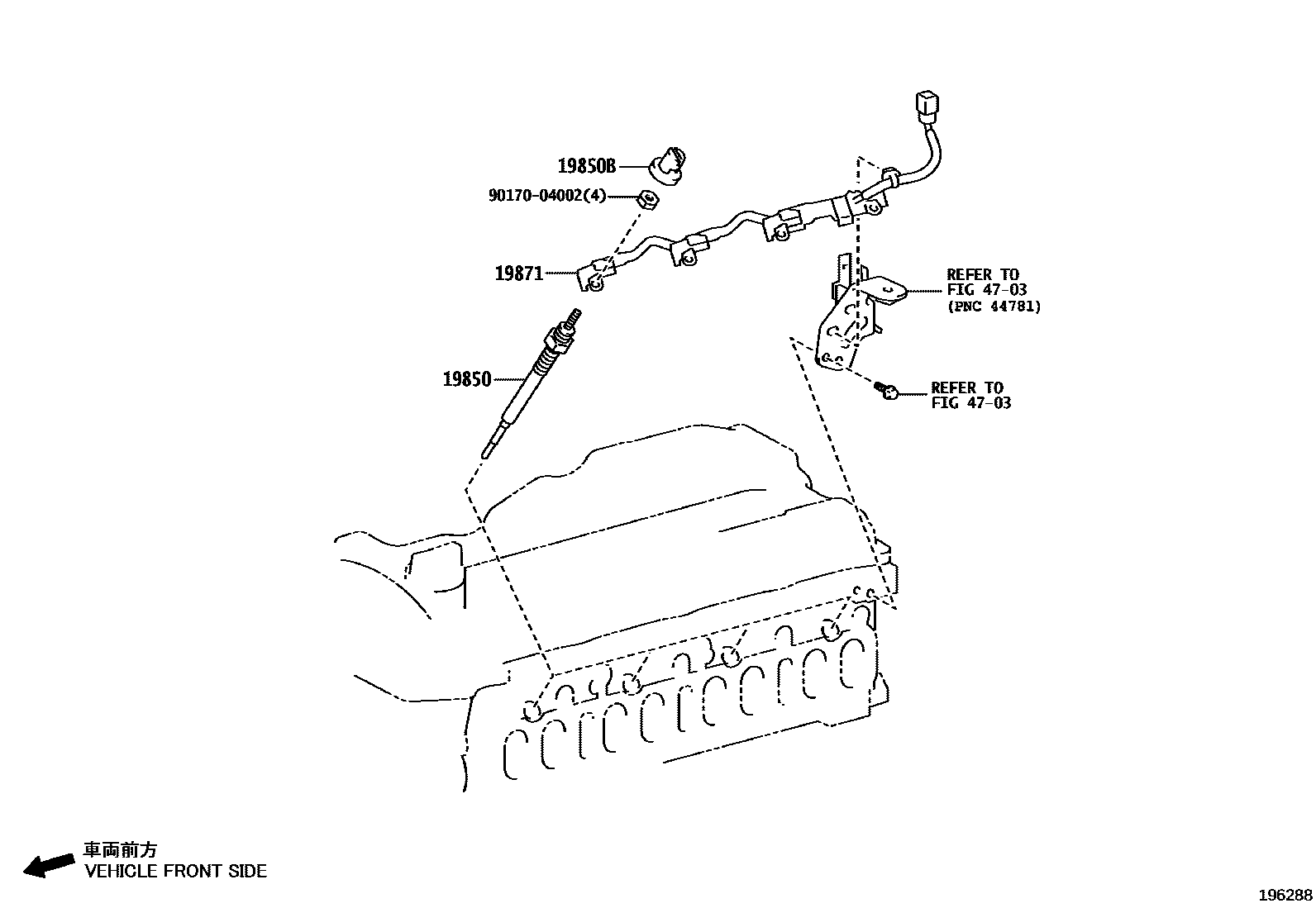

IGNITION COIL & SPARK PLUG / GLOW PLUG

19850PLUG ASSY, GLOW

main19850-11040×4i1GDFTV,2GDFTV..GUN12#,135..THP202208-202307

*BV-GV=12V-7V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-T0001×4i1GDFTV,2GDFTV..GUN12#,135..THP202208-202307

(L)

19871CONNECTOR, GLOW PLUG NO.1

main19871-0E010supersedes 19871-0E020i1GDFTV,2GDFTV..GUN12#,135..SAP202208-202401

THA SOURCED PARTS

main19871-0E020i1GDFTV..GUN126..THP; 2GDFTV..GUN125..THP..6F202208-202307

IND SOURCED PARTS; RUSSIA&CUSTOM UNION SPEC,IND SOURCED PARTS

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

9017004002

main90170-04002

5 parts on this diagram · 1 diagram in section
