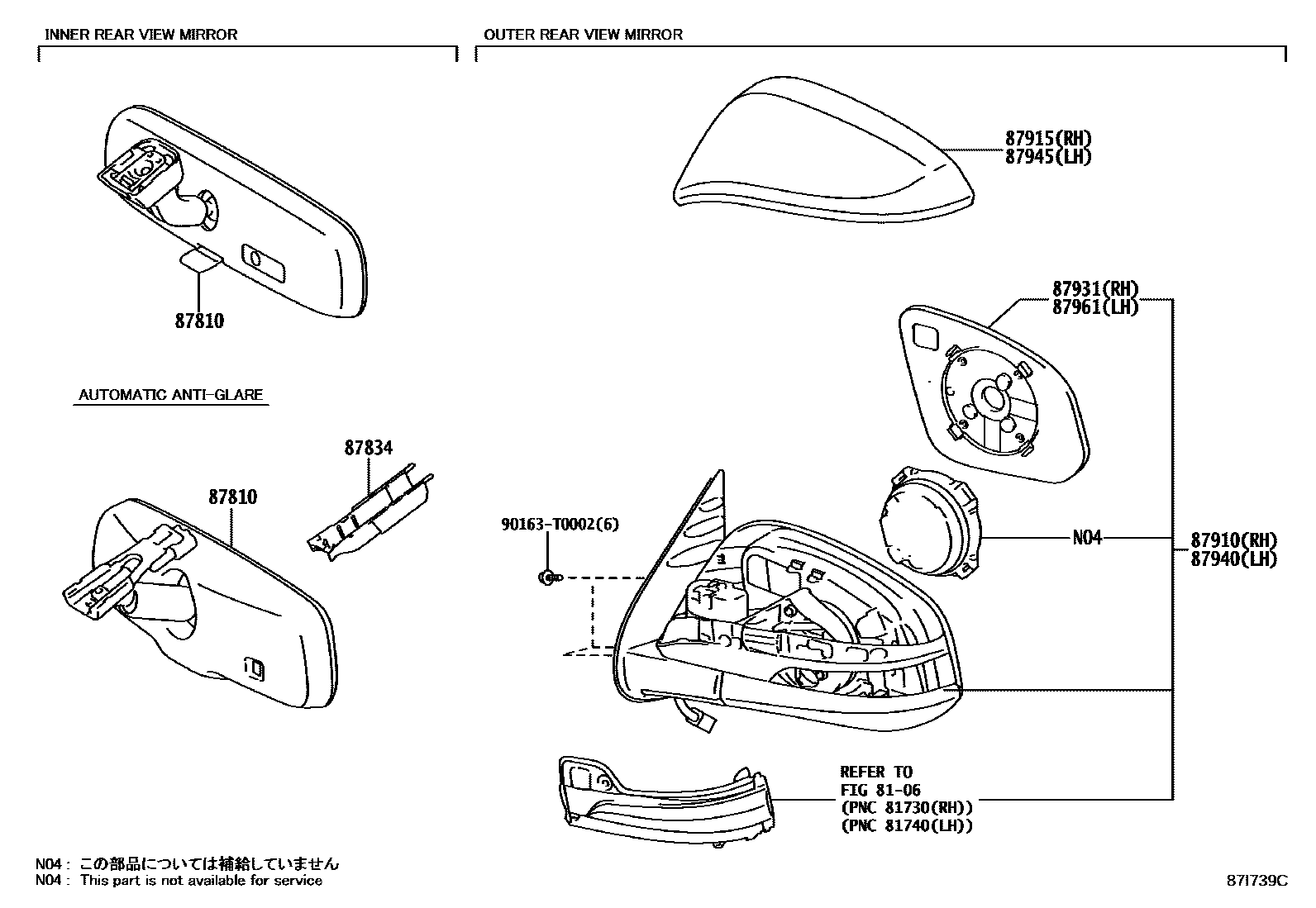

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL) & W(*MIH)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL) & W(*MIH)
NO PAINT REQ.
main87910-0KG72iGUN135..(SADCB,SAXTR)..S;GUN125..LHD..(SADCB,SAXTR)..(L,S); GUN135..SAXTR..IV3202106-202109
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87910-0KG73iGUN135..(SADCB,SAXTR)..S;GUN125..LHD..(SADCB,SAXTR)..(L,S); GUN135..SAXTR..IV3202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
87915COVER, OUTER MIRROR, RH
NO PAINT REQ.,BLACK
PLATED,BLACK
main87915-0K540supersedes 87915-0K600iGUN125,135..THDCB..S; GUN125..THDCB..H; GUN126..S; GUN126..THDCB..H202006-202108
PLATED,*CR; PLATED,ISRAEL SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,ISRAEL SPEC (EURO 6 REGULATION),*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,TURKEY SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,TURKEY SPEC (EURO 6 REGULATION),*CR
main87915-0K600supersedes 87915-0K540iGUN125..THDCB..6F; GUN125..THDCB..H; GUN125..THDCB..S; GUN126..S; GUN126..THDCB..H202006-202108
PLATED,*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,RUSSIA, CUSTOM UNION SPEC&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,UKRAINE SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,UKRAINE SPEC (EURO 6 REGULATION),*CR
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87915-0K918supersedes 87915-0K600iGUN12#..THDCB..H; GUN125..THDCB..H; GUN126..THDCB..H202101-202108
PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL)
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL) & W(*MIH)
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & W(*SITL) & W(*MIH)
main87940-0KG42iGUN135..(SADCB,SAXTR)..S;GUN125..LHD..(SADCB,SAXTR)..(L,S); GUN135..SAXTR..IV3202106-202109
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
main87940-0KG43iGUN135..(SADCB,SAXTR)..S;GUN125..LHD..(SADCB,SAXTR)..(L,S); GUN135..SAXTR..IV3202009-202106
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
87945COVER, OUTER MIRROR, LH
NO PAINT REQ.,BLACK
PLATED,BLACK
main87945-0K540supersedes 87945-0K600iGUN125,135..THDCB..S; GUN125..THDCB..H; GUN126..S; GUN126..THDCB..H202006-202108
PLATED,*CR; PLATED,ISRAEL SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,ISRAEL SPEC (EURO 6 REGULATION),*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,TURKEY SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,TURKEY SPEC (EURO 6 REGULATION),*CR
main87945-0K600supersedes 87945-0K540iGUN125..THDCB..6F; GUN125..THDCB..H; GUN125..THDCB..S; GUN126..S; GUN126..THDCB..H202006-202108
PLATED,*CR; PLATED,OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,RUSSIA, CUSTOM UNION SPEC&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,UKRAINE SPEC (EURO 6 REGULATION)&OUTSIDE REAR VIEW MIRROR-*273(*CR) & W(*MIH) & W(*SITL),*CR; PLATED,UKRAINE SPEC (EURO 6 REGULATION),*CR
PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM,BLACK
main87945-0K918supersedes 87945-0K600iGUN12#..THDCB..H; GUN125..THDCB..H; GUN126..THDCB..H202101-202108
PAINT REQ.,ISRAEL SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,TURKEY SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM; PAINT REQ.,UKRAINE SPEC (EURO 6 REGULATION)&MLM ADVENTURE PACKAGE&TIRE & DISC WHEEL-265/60R18, ALUMINUM
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*RCM(BLACK) & WITH(*SITL)
90163T0002
main90163-T0002
10 parts on this diagram · 1 diagram in section
