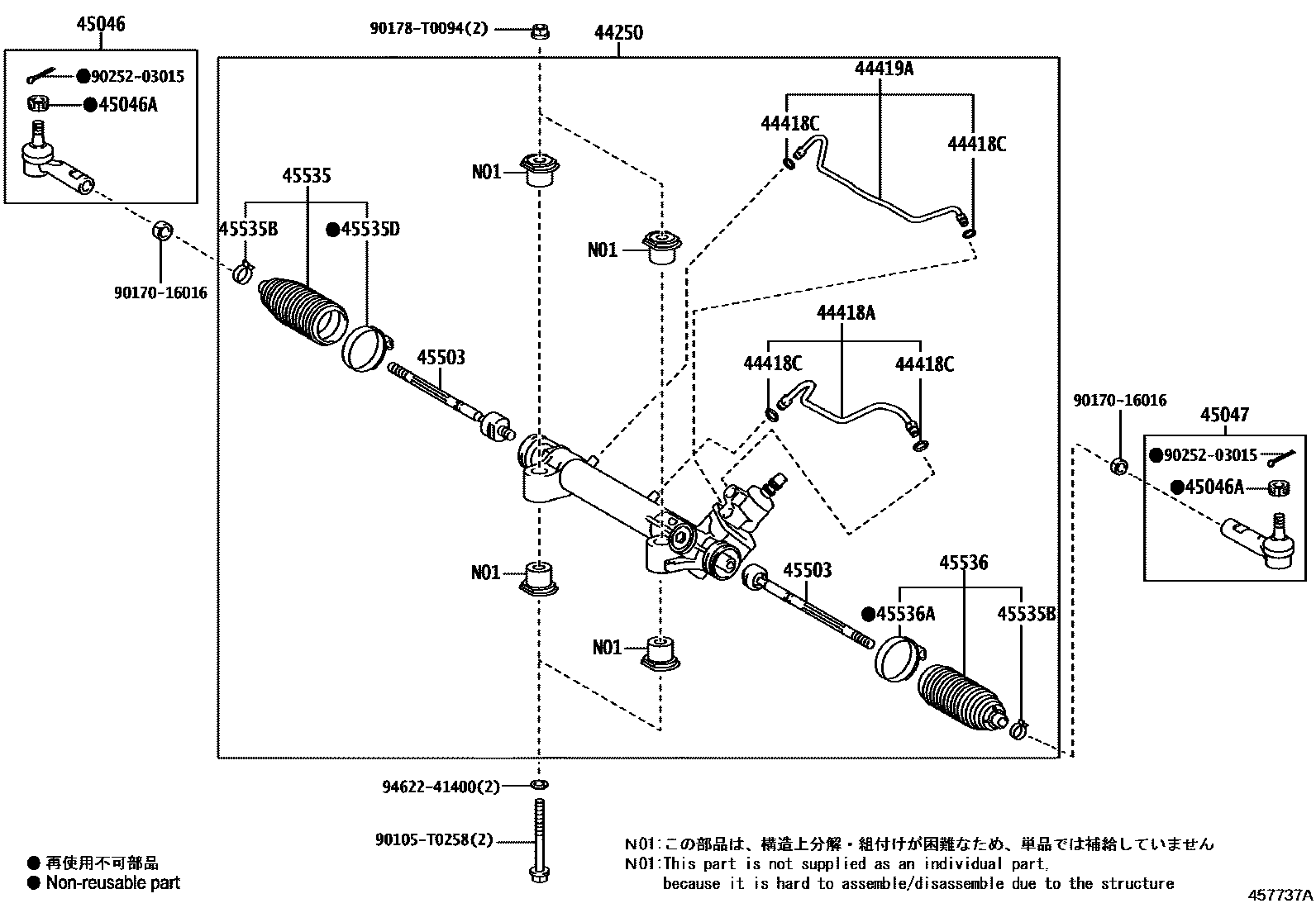

FRONT STEERING GEAR & LINK

0001 1 0002 1

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-0K721iGUN12#..RHD202009-202109

main44250-0K731iGUN12#,135..THDCB202006-202108

main44250-0K741iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202111

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-0K260×2iGUN12#..RHD202104-202109

main44418-0K270iGUN12#,135..THDCB202006-202108

main44418-0K280×2iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202104-202109

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-T0032×4iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202006-202104

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-0K260×2iGUN12#..RHD202104-202109

main44419-0K270iGUN12#,135..THDCB202006-202108

main44419-0K280iGUN12#,135..LHD..(SADCB,SASCB,SAXTR)202009-202104

45046END SUB-ASSY, TIE ROD, RH

main45046-09800iGUN12#,135202006-202109

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-T0002×2iGUN12#,135202006-202109

45047END SUB-ASSY, TIE ROD, LH

main45046-09800iGUN12#,135202006-202109

45503END SUB-ASSY, STEERING RACK

main45503-0K130iGUN12#,135..SADCB,SASCB,SAXTR202006-202104

45535BOOT, STEERING RACK, NO.1

main45535-09390iGUN12#,135..THDCB202006-202108

main45535-09410iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

45535BCLIP(FOR STEERING RACK BOOT)

main90466-T0004×2iGUN12#,135..THDCB202006-202108

main90466-T0005×2iGUN12#,135..SADCB,SASCB,SAXTR202009-202104

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0K030iGUN12#,135..THDCB202006-202108

main45538-0K040iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

45536BOOT, STEERING RACK, NO.2

main45535-09390iGUN12#,135..THDCB202006-202108

main45535-09410iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0K030iGUN12#,135..THDCB202006-202108

main45538-0K040iGUN12#,135..SADCB,SASCB,SAXTR202009-202109

90105T0258

main90105-T0258

9017016016

main90170-16016

90178T0094

main90178-T0094

9025203015

main90252-03015

9462241400

main94622-41400

18 parts on this diagram · 2 diagrams in section
