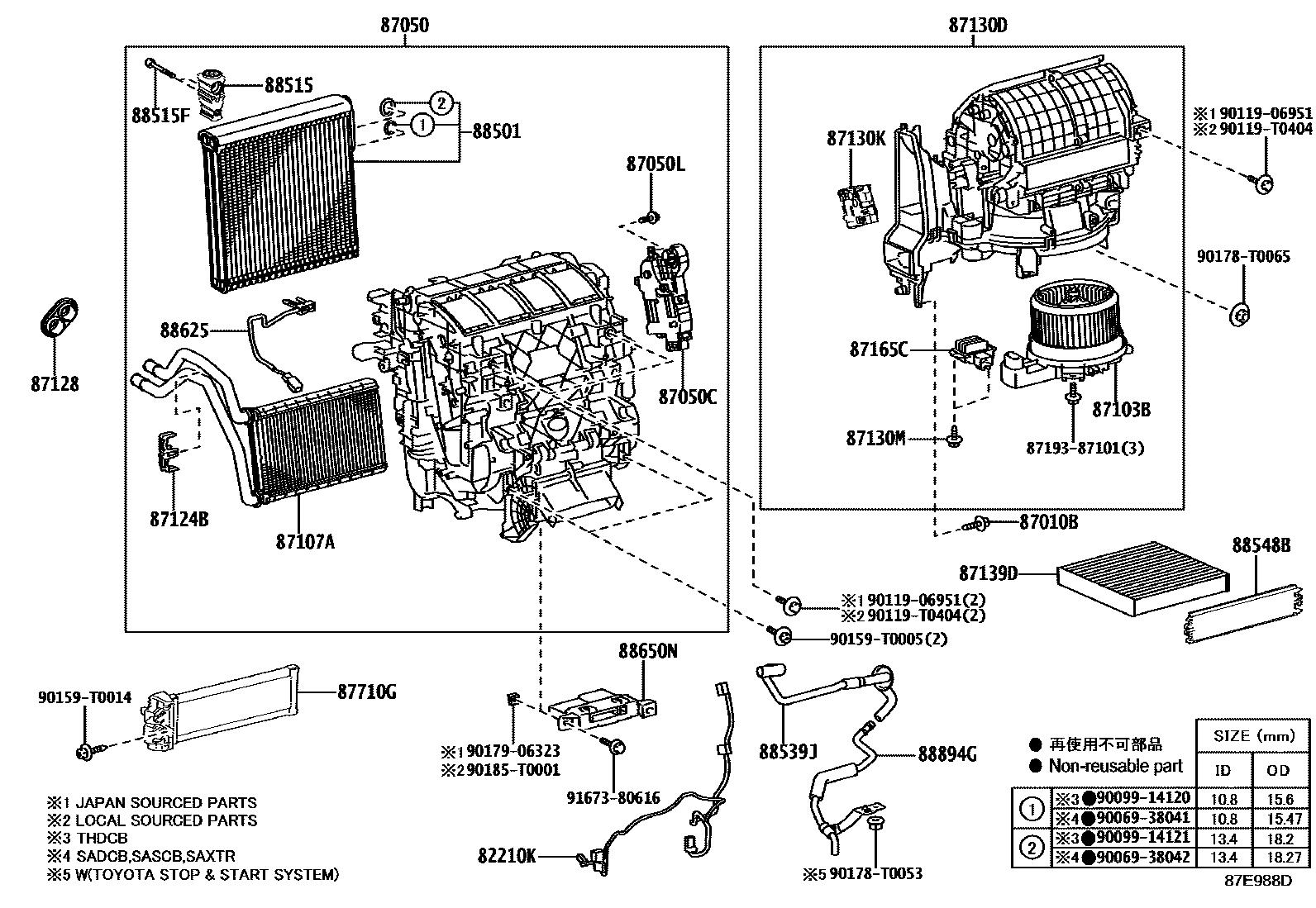

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1AUTO AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1MANUAL HEATER 0004 1AUTO AIR CONDITIONER 0005 1MANUAL AIR CONDITIONER 0006 1MANUAL HEATER

82210KHARNESS ASSY, AIR CONDITIONER

87010BSCREW(FOR AIR CONDITIONER UNIT)

main88718-0A020iGUN12#,135..THDCB201506-201907

main90068-00042iGUN12#,135..THDCB201907-202005

87050RADIATOR ASSY, AIR CONDITIONER

main87050-0KB80iGUN125,135..LHD..SADCB201906-202009

main87050-0KD20iGUN12#,135..THDCB201506-202005

main87050-0KF50iGUN12#,135..LHD..SADCB201604-201905

main87050-0KG00iGUN135..SAXTR..X201604-202009

main87050-0KG30iGUN125..RHD..SADCB201604-201905

main87050-0KG80iGUN125..RHD..(SASCB,SAXTR)201604-202009

main87050-0KK60iGUN125..RHD..SADCB201906-202009

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87050LSCREW(FOR AIR CONDITIONER RADIATOR)

main88718-0A020iGUN12#,135..THDCB201506-202005

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0K390iGUN12#,135..THDCB201506-201907

main87103-0K391iGUN12#,135..THDCB201907-202005

main87103-0K490iGUN125..RHD201604-201912

main87103-0K491iGUN125..RHD201912-202009

main87103-0K500iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..LHD..(SADCB,SASCB,SAXTR)201604-201912

main87103-0K501iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..DCRE201912-202009

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-0K110iGUN12#,135..THDCB201506-202005

main87107-0K170iGUN135..SAXTR..X201604-202009

87124BCLAMP, HEATER

main87124-06140iGUN12#,135..THDCB201506-202005

main87124-0K230iGUN135..SAXTR..X201604-202009

87128GROMMET, HEATER

main87128-0K180iGUN12#,135..THDCB201506-202005

main87128-0K200iGUN135..SAXTR..X201604-202009

87130DBLOWER ASSY

main87130-0K580iGUN12#,135..THDCB201506-201907

main87130-0K581iGUN12#,135..THDCB201907-202005

main87130-0K760iGUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..LHD..(SADCB,SASCB,SAXTR)201604-201912

main87130-0K761iGUN125,135..LHD..(SADCB,SASCB,SAXTR)..DCRE201912-202009

main87130-0K790iGUN125..RHD201604-201912

main87130-0K791iGUN125..RHD201912-202009

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

87130MSCREW(FOR BLOWER)

main88718-0A020iGUN12#,135..THDCB201506-201907

main90068-00042iGUN12#,135..THDCB201907-202005

FRONT AIR CONDITIONER-AUTO

87139DELEMENT, AIR REFINER

main87139-0K070iGUN12#,135..THDCB201506-202005

POLLEN FILTER

main87139-0K090iGUN135..SAXTR..X201604-202009

POLLEN FILTER

main87139-58010iGUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

DEODORANT FILTER

87165CCONTROL, BLOWER MOTOR

87710GQUICK HEATER ASSY

main87710-0K100iGUN12#,135..THDCB201506-202005

main87710-0K110iGUN135..SAXTR..X201604-202009

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0K390iGUN12#,135..THDCB201506-202005

main88501-0K420iGUN12#,135..LHD..SADCB201604-202009

main88501-0K430iGUN125..RHD..SADCB201604-202009

88515VALVE, COOLER EXPANSION

main88515-0K580iGUN125..THDCB;GUN125..SADCB..HDCR;GUN135..THDCB..DCRE;GUN126,135..(SADCB,THDCB)..HDCR201506-202005

main88515-0K600iGUN125,135..SADCB201906-202009

FRONT AIR CONDITIONER-AUTO

main88515-0K600iGUN125,135..SADCB201906-202009

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-MANUAL

main88515-0K600iGUN125,135..SADCB201906-202009

TOYOTA STOP & START SYSTEM-WITH&FRONT AIR CONDITIONER-AUTO

main88515-0K600iGUN125..SAXTR..M201906-202009

TOYOTA STOP & START SYSTEM-WITH

main88515-0K600iGUN125..SAXTR..M201906-202009

FRONT AIR CONDITIONER-MANUAL

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542iGUN12#,135..THDCB201506-202005

88539JHOSE, DRAIN COOLER

main88539-0K380iGUN12#,135..THDCB201506-202005

main88539-0K420iGUN135..SAXTR..X201604-202009

main88539-0K430iGUN125..RHD201604-202009

88548BCASE, AIR FILTER

main88548-0K080iGUN12#,135..THDCB201506-201812

main88548-0K120iGUN135..SAXTR..X201604-201905

main88548-0K121iGUN125..SASCB,SAXTR;GUN125..SADCB..DCRE;GUN135..SASCB..HDCR;GUN135..SAXTR..S..HDCR;GUN135..(SADCB,SASCB,SAXTR)..DCRE201901-202009

main88899-06330iGUN12#,135..THDCB201901-202005

88625THERMISTOR, COOLER, NO.1

main88620-0K010iGUN12#,135..SADCB,THDCB201506-202009

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0K520iGUN135..SAXTR..X201506-202009

88894GCONNECTOR, DRAIN HOSE

main88894-0K010iGUN12#,135..THDCB201506-202005

main88894-0K100iGUN135..SAXTR..X201604-202009

main88894-0K110iGUN125..RHD201604-202009

8719387101

main87193-87101

9006938041

main90069-38041

9006938042

main90069-38042

9009914120

main90099-14120

9009914121

main90099-14121

9011906951

main90119-06951

90119T0404

main90119-T0404

90159T0005

main90159-T0005

90159T0014

main90159-T0014

90178T0053

main90178-T0053

90178T0065

main90178-T0065

9017906323

main90179-06323

90185T0001

main90185-T0001

9167380616

main91673-80616
