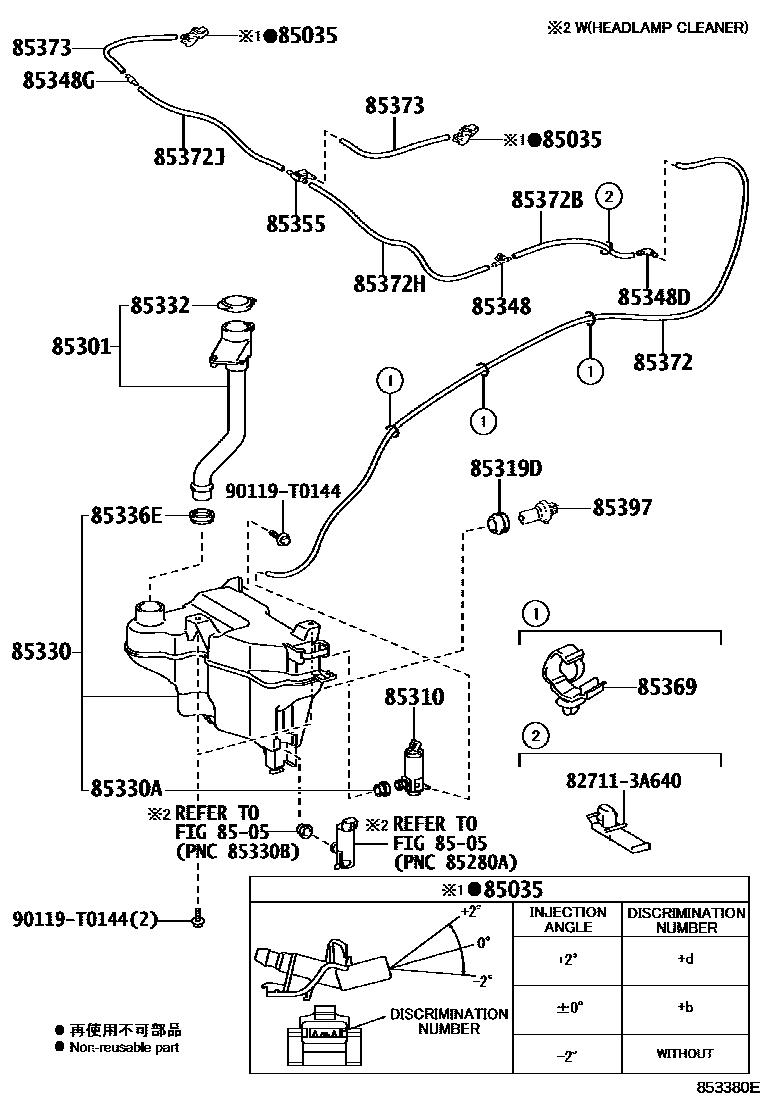

85035NOZZLE SUB-ASSY, WASHER

main85381-0K070×2i201506-201807

ANGLE 0

main85381-0K080×2i201506-201807

ANGLE -2

main85381-0K090×2i201506-201807

ANGLE +2

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

main85301-0K110i201506-202009

main85301-0K190i201604-201709

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0K020i201506-201701

main85330-0K021i201702-201709

main85330-33070i201710-202009

85319DPACKING, FRONT WASHER

main85319-33230i201506-202009

85330JAR ASSY, WINDSHIELD WASHER

main85315-71040i201506-202009

main85355-71030i201506-202009

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i201506-201807

85332CAP, WINDSHIELD WASHER JAR

main85316-YE011i201506-202009

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i201506-202009

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-06101i201604-202009

main85375-17050i201506-201708

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-0D040i201506-201807

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-06101i201506-201708

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201506-202009

85369CLAMP

main82711-0K070×3i201506-202009

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33278i201506-201807

L=1635

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33277i201506-201708

L=205

main90068-33296i201604-201807

L=685

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33258i201604-201807

L=430

main90068-33267i201506-201708

L=470

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90068-33258i201506-201708

L=430

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33251×2i201506-201807

L=235

85397SWITCH ASSY,LEVEL WARNING

main85397-30400i201506-202009

827113A640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A640

90119T0144

main90119-T0144
