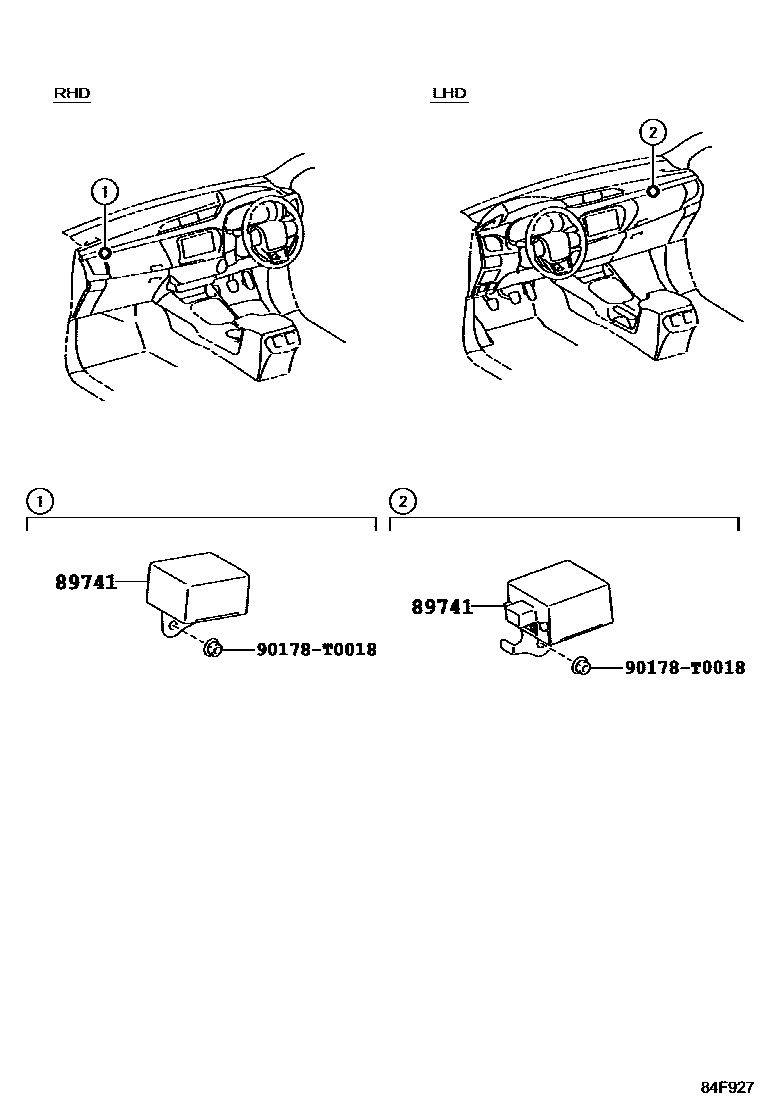

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89741-0K100iGUN125..LHD..(M,S);GUN126,135..(M,S)..CBU201506-201606

main89741-0K101iGUN12#..LHD..(M,S);GUN135..(M,S)..CBU201607-202009

main89741-0K170iGUN125..RHD..(M,S)201604-201606

main89741-0K171iGUN125..RHD..(M,S)201607-202009

90178T0018

main90178-T0018

2 parts on this diagram · 3 diagrams in section
