WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGIEN ROOM 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1DOOR 0009 1FLOOR,FRAME & ROOF 0010 1SEAT 0011 1CLAMP & BRACKET 0012 1CLAMP & BRACKET 0013 1CABLE BOND 0014 1CONNECTOR 1/2 0015 1CONNECTOR 2/2

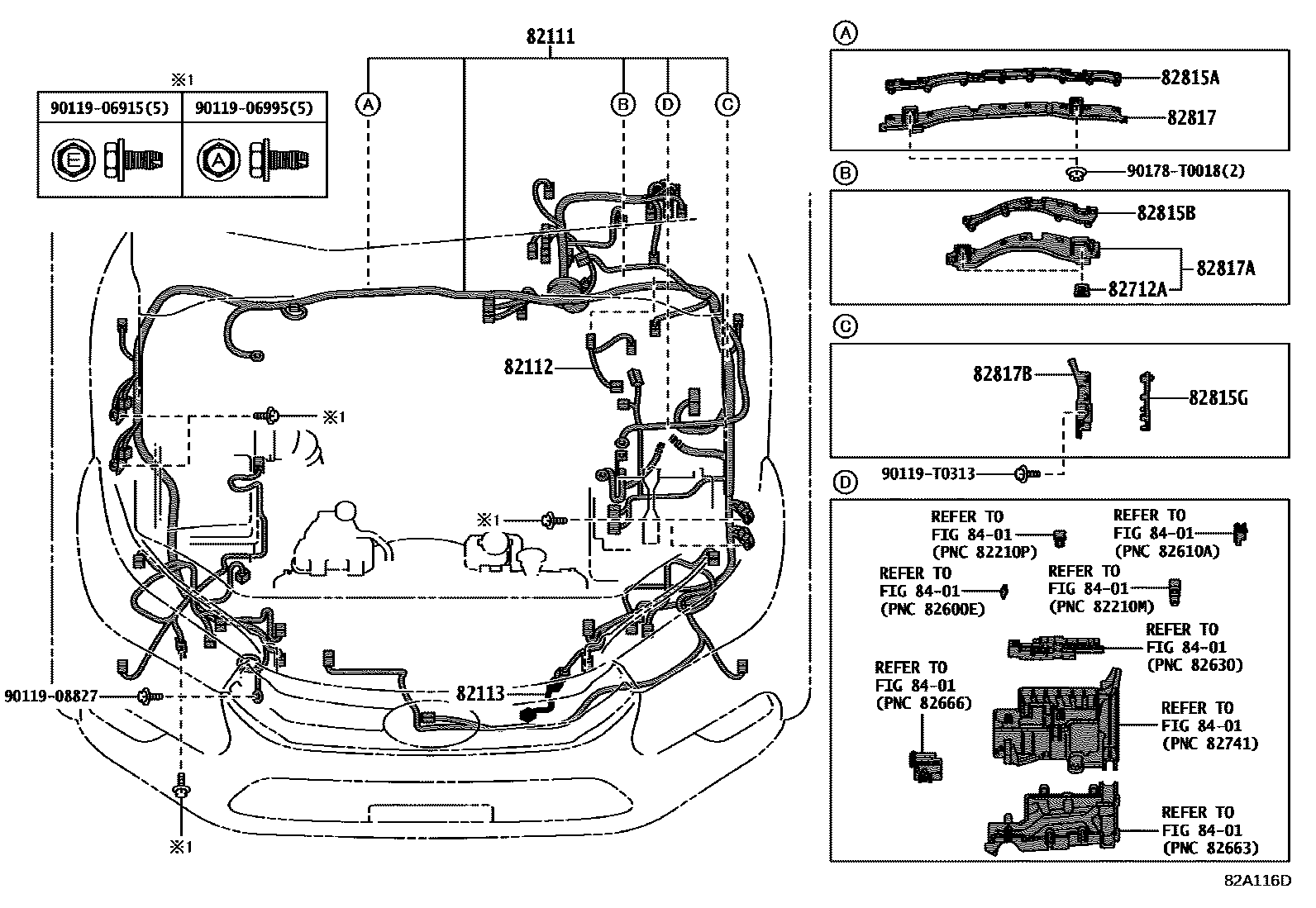

82111WIRE, ENGINE ROOM MAIN

main82111-KKM40iGUN125..RHD..S201604-201710

main82111-KKM50iGUN125..RHD..M201604-201710

main82111-KKM80iGUN125..RHD..H201604-201710

main82111-KKQ70iGUN125..S201506-201508

ISRAEL SPEC(EURO 5 REGULATION)

main82111-KKQ70iGUN135..S201506-201508

RUSSIA & UKRAINE SPEC

main82111-KKQ71iGUN125..THDCB..S201509-201708

RUSSIA & UKRAINE SPEC

main82111-KKQ71iGUN135..THDCB..S201509-201708

ISRAEL SPEC(EURO 5 REGULATION)

main82111-KKQ80iGUN125,135..6F..M201506-201508

ISRAEL SPEC(EURO 5 REGULATION)

main82111-KKQ81iGUN125..LHD..SADCB..6FC..M201509-201710

ISRAEL SPEC(EURO 5 REGULATION)

main82111-KKR40iGUN126..H201506-201508

main82111-KKR41iGUN126..H201509-201710

main82111-KKS10iGUN125..S201506-201508

main82111-KKS11iGUN125..LHD..(S,X);GUN135..(SADCB,SASCB,SAXTR)..(S,X)201509-201710

main82111-KKS20iGUN125..6FC..M201506-201508

main82111-KKS21iGUN125,135..LHD..6FC..M;GUN125,135..LHD..(SADCB,SAXTR)..6F..M201509-201710

main82111-KKS50iGUN125..H201506-201508

main82111-KKS51iGUN125..LHD..H201509-201710

main82115-KK030iGUN126..M201506-201508

main82115-KK031iGUN126..M201509-201708

main82115-KKT90iGUN125..RHD..S201710-201905

main82115-KKU20iGUN125..RHD..M201710-201905

main82115-KKU40iGUN125..RHD..H201710-201905

main82115-KKY90iGUN135..THDCB..S201708-201806

P/N LABEL=82115KKY90

main82115-KKZ00iGUN135..6FC;GUN125,135..LHD..SADCB..6F..M201710-201806

P/N LABEL=82115KKZ00

main82115-KKZ00iGUN125,135..THDCB..6F..M201710-201806

RUSSIA & UKRAINE SPEC,P/N LABEL=82115KKZ00

main82115-KKZ00iGUN125,135..THDCB..6F..M201710-201806

TURKEY SPEC(EURO 5 REGULATION),P/N LABEL=82115KKZ00

main82115-KKZ30iGUN126..H201710-201905

main82115-KKZ80iGUN135..THDCB..S201710-201905

main82115-KKZ81iGUN125..S..HDCR201905-202005

"BLACK RALLY EDITION"*(B)

main82115-KKZ90iGUN125,135..LHD..6FC..M;GUN125,135..LHD..(SADCB,SAXTR)..6F..M201710-201905

main82116-KK020iGUN125..LHD..H201710-201905

main82116-KK040iGUN126..M201708-201905

main82116-KKJ60iGUN125..RHD..H201906-202009

main82116-KKK90iGUN125,135..LHD..(S,X)..DCRE201905-202009

"BLACK RALLY EDITION"*(B)

main82116-KKN30iGUN125..LHD..H..DCRE201905-202009

main82116-KKP60iGUN125..RHD..M201906-202009

main82116-KKQ10iGUN125..RHD..S201906-202009

"BLACK RALLY EDITION"*(B)

main82116-KKT50iGUN125,135..LHD..M..DCRE201905-202009

82112WIRE, ENGINE ROOM, NO.2

main82112-KK010iGUN125..6F;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F201506-202009

82113WIRE, ENGINE ROOM, NO.3

main82113-KK020iGUN125,135..DCRE201905-202009

82712ASUPPORT, WIRING HARNESS

main82712-33190iGUN135..SAXTR..X201506-202009

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-0K530iGUN135..SAXTR..X201506-202009

main82815-0K560iGUN125..RHD201604-202009

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-0K520iGUN135..SAXTR..X201506-202009

main82815-0K550iGUN125..RHD201604-202009

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-0K540iGUN135..SAXTR..X201506-202009

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-0K530iGUN135..SAXTR..X201506-202009

main82817-0K560iGUN125..RHD201604-202009

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-0K520iGUN135..SAXTR..X201506-202009

main82817-0K550iGUN125..RHD201604-202009

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-0K540iGUN135..SAXTR..X201506-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9011906995

main90119-06995

9011908827

main90119-08827

90119T0313

main90119-T0313

90178T0018

main90178-T0018

16 parts on this diagram · 15 diagrams in section
