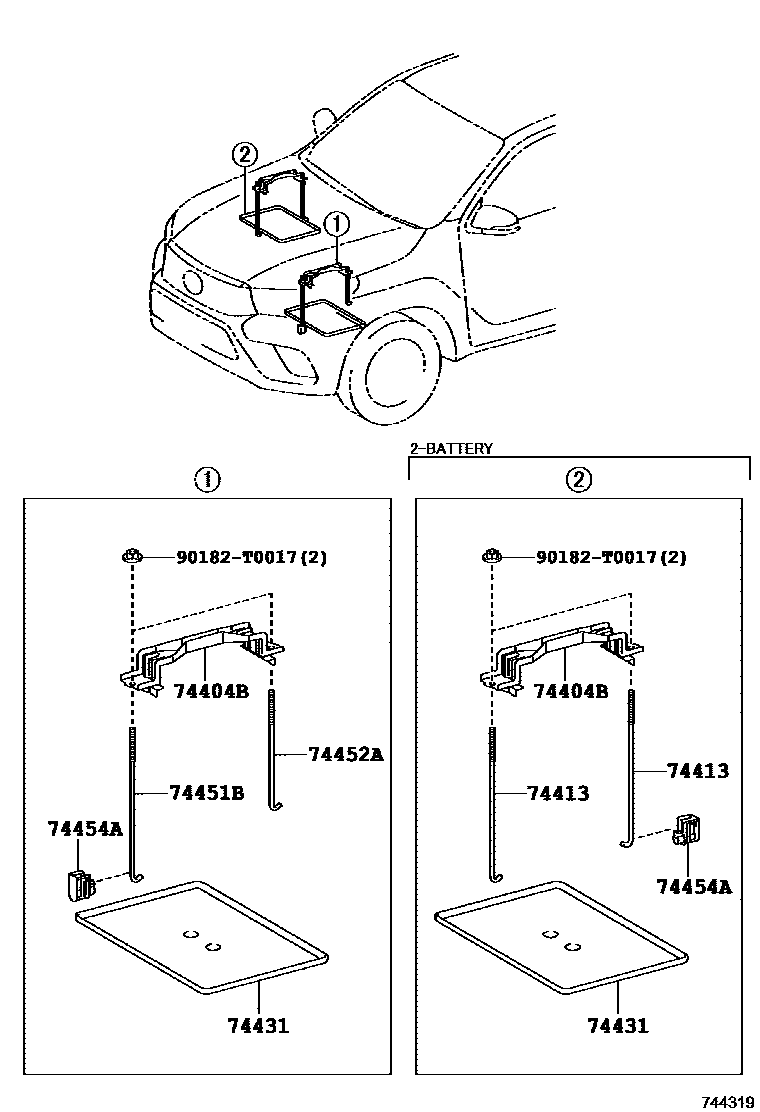

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-KK010iGUN135..SAXTR..X201506-201807

74413BOLT, BATTERY CLAMP

main74451-KK010×2iGUN126201506-202005

74431TRAY, BATTERY

main74431-KK020×2iGUN126201506-202005

main74431-KK030iGUN125;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB201506-202009

74451BBOLT, BATTERY CLAMP

main74451-KK010iGUN135..SAXTR..X201506-201807

74452ABOLT, BATTERY CLAMP, NO.2

main74451-KK020iGUN135..SAXTR..X201506-201807

74454ASUPPORT, BATTERY SET BOLT

main74454-0K010iGUN135..SAXTR..X201506-201807

90182T0017

main90182-T0017

7 parts on this diagram · 1 diagram in section
